Zone Expander Outputs
The Zone Expander module has two programmable outputs, which
can be used to drive auxiliary devices such as relays, LED’s, smoke
detectors etc. The table below shows the electrical characteristics
for each output:
No
Supervised
Max Current
Type
1
No
100mA
Switched –ve
2
No
100mA
Switched –ve
Wire as per Panel Outputs shown on page 19.
Zone Expander Speaker Driver
The Zone Expander has a Speaker driver output and can be used
for driving 8 or 16 Ohm loud speakers as shown on page 18.
Local Zone Expander Module
The Premier 8XE Local Zone Expander plugs onto the control panel
to provide 8 additional programmable detection zones.

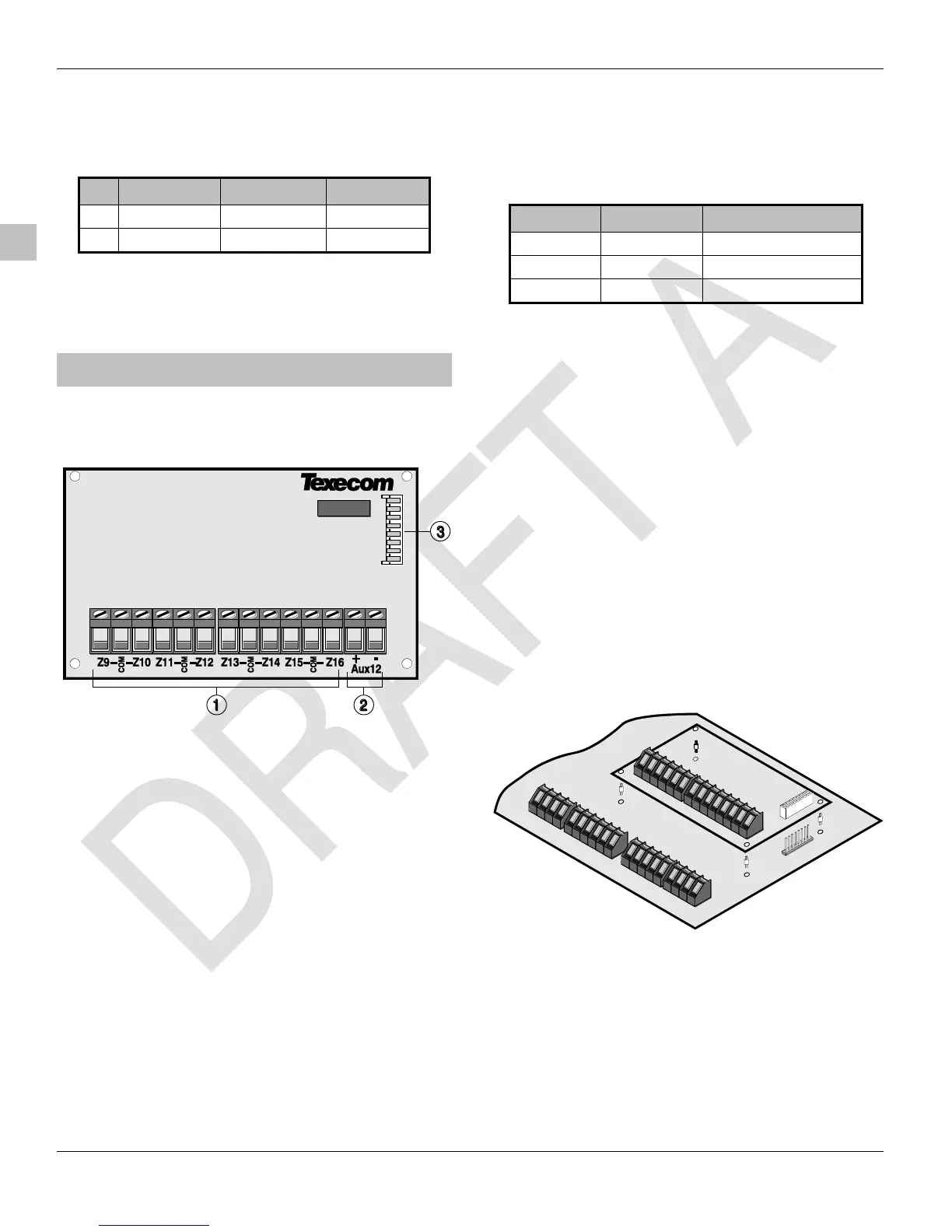

Local Expander Layout

Zone Inputs 9 to 16
These terminals provide the connections to the zone inputs.

Auxiliary 12V Power
These terminals provide auxiliary power for devices that require 12V
power. The auxiliary output is protected by fuse F2 (1 Amp) on the
control panel.

Plug-On Connector
The Premier 8XE Local Zone Expander plugs onto the control panel
via this connector and is held in place by four plastic pillars located
in each corner.
Local Expander Zones
The Premier 8XE Local Zone Expander has eight programmable
zone inputs (see page 15 for wiring details). Each zone is also fully
programmable (see page 25 for programming details).
The table below shows the zone allocation when the module is
installed:
Panel
Panel Zones
Expander Zones
Premier 412
1 to 4
9 to 16
Premier 816
1 to 8
9 to 16
Premier 832
1 to 8
9 to 16

When the system is expanded above 8 zones, it MUST be
fitted with a suitable remote keypad. For systems up to 16
zones a Premier RKP16 or Premier RKP16 Plus should be
installed. For systems above 16 zones a Premier LCD/LCDL
should be installed.
The system will only support one type of expansion device
for zones 09 - 16, i.e., you can fit either a Premier 8X Remote
Expander (Address = 1) or a Premier 8XE Local Expander,
you cannot fit both.
Installing the Local Zone Expander
 To install the Local Zone Expander proceed as follows:
Ensure that all power is removed from the control panel (mains and
battery) before attempting to fit the expander.
Push the four support pillars (supplied) into the four locating holes
on the control panel PCB.
Align the Local Expander Connector with the 8 way plug (JP2) on
the control panel. Push expander into place, ensuring that all
four pillars clip into the four locating holes on the local
expander.
