●Displaying output power in the current indicator:
A
V
W
W
CC:R
CV:G
OUTPUT
V(W) A(W)
MENU PROTECT CHECK
ESC/ KEY LOCK ENTER/MEM
1 2 3
DIGIT
PRESET/ SEQUENCE
* LOCK/ RMT
STEP STOP PAUSE START
1
A
V
W
W
CC:R
CV:G
OUTPUT
V(W) A(W)
MENU PROTECT CHECK
ESC/ KEY LOCK ENTER/MEM
1 2 3
DIGIT
PRESET/ SEQUENCE
* LOCK/ RMT
STEP STOP PAUSE START
A
V
W
W
CC:R
CV:G
OUTPUT
V(W) A(W)
MENU PROTECT CHECK
ESC/ KEY LOCK ENTER/MEM
1 2 3
DIGIT
PRESET/ SEQUENCE
* LOCK/ RMT
STEP STOP PAUSE START
2
PDS-A series
PDS-A series
PDS-A series

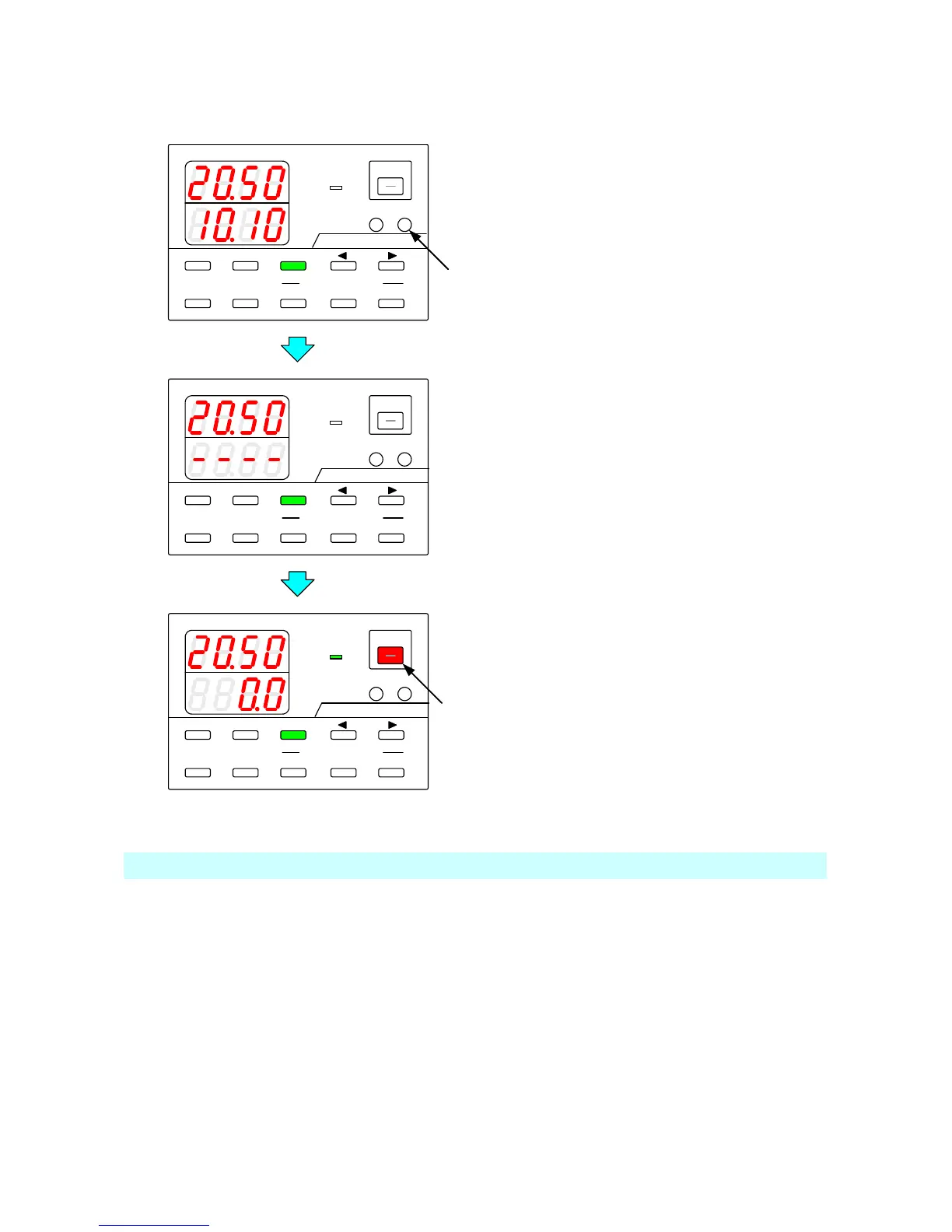

Operation procedure
1.
When current is displayed, press and hold the A
key to display the output power.
When the output is off, the output power is
displayed as “－－－－“.
Press and hold the unlit A key to display the
current again.
2.
Press the OUTPUT key to display the output power.
When the V and A keys are lit, the display cannot be switched to the output power display.
