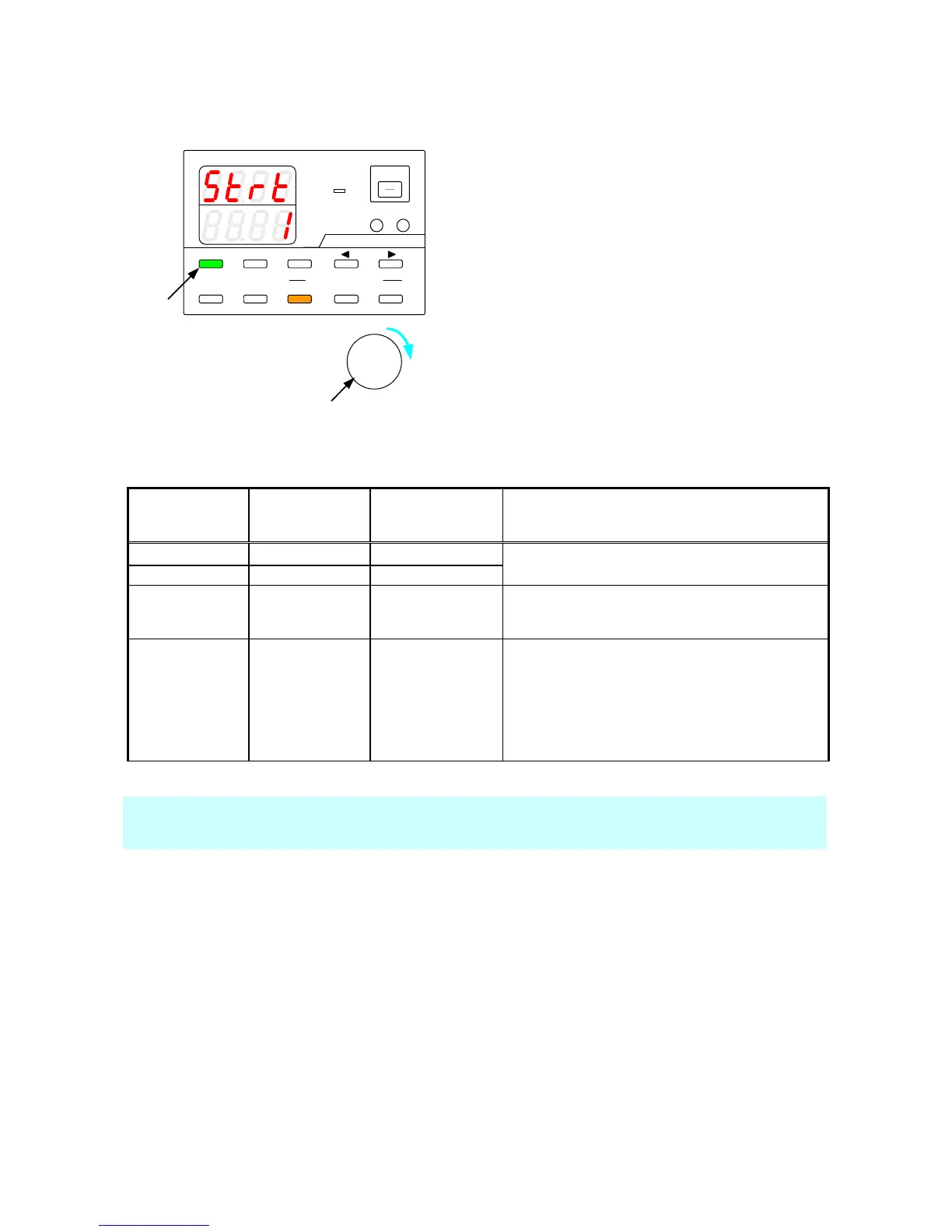

8-5. Confirming the settings for sequence program execution
The setting items for sequence program execution can be confirmed while the MENU key is lit in green.
A
V
W
W
CC:R
CV:G
OUTPUT
V(W) A(W)
MENU PROTECT CHECK
ESC/ KEY LOCK ENTER/MEM 1 2 3
DIGIT
PRESET/ SEQUENCE
* LOCK/ RMT STEP STOP PAUSE START
1
2
PDS-A series
Operation procedure
1.
Press the MENU key, which is then lit in green.
The voltage and current indicators display the
setting items for sequence program execution.
2.
While the STOP key or PAUSE key is lit in amber
(while the sequence program is stopped or
paused), turn the rotary encoder clockwise 1
click to switch between the setting items for
sequence program execution. The setting
items are displayed in the voltage and current
indicators.
See the table below for details about the setting
items for sequence program execution.
Voltage indicator
Current indicator
Setting item for
sequence program
execution
Remarks
StAt
STEP No.
START STEP
End
STEP No.
END STEP
cycL
Number of
execution cycles
Number of
execution cycles
The number of execution cycles that can be displayed
is 1 to 1000.
"InF" indicates an infinite number of execution cycles.
ПodE
Execution mode
Execution mode
The execution modes are as follows:
0: START STEP→END STEP
1: START STEP→END STEP→END STEP
→START STEP
2: END STEP→START STEP
3: END STEP→START STEP→START STEP
→END STEP
When a sequence program is being executed automatically (while the START LED is lit in amber), only the execution
time of the step being executed can be confirmed. The other setting items cannot be confirmed.
The voltage indicator displays the hour, and the current indicator displays the minutes and seconds.
