6-3-5. Default setting of the power relay when the power is turned on
If the remote control card (IF-70GU, IF-71RS or IF-71LU) is installed, the default status (on/off) of the main power relay
can be specified when the power is turned on.
A
V
W
W
CC:R
CV:G
OUTPUT
V(W) A(W)
MENU PROTECT CHECK
ESC/ KEY LOCK ENTER/ 1 2 3
DIGIT
PRESET/ SEQUENCE
* LOCK/ RMT STEP STOP PAUSE START
PDS-A series
1
A
V
W
W
CC:R
CV:G
OUTPUT
V(W) A(W)
MENU PROTECT CHECK
ESC/ KEY LOCK ENTER/MEM 1 2 3
DIGIT
PRESET/ SEQUENCE
* LOCK/ RMT STEP STOP PAUSE START
3
PDS-A series
2
5
A
V
W
W
CC:R
CV:G
OUTPUT
V(W) A(W)
MENU PROTECT CHECK
ESC/ KEY LOCK ENTER/ MEM 1 2 3
DIGIT
PRESET/ SEQUENCE
* LOCK/ RMT STEP STOP PAUSE START
4
PDS-A series
A
V
W
W

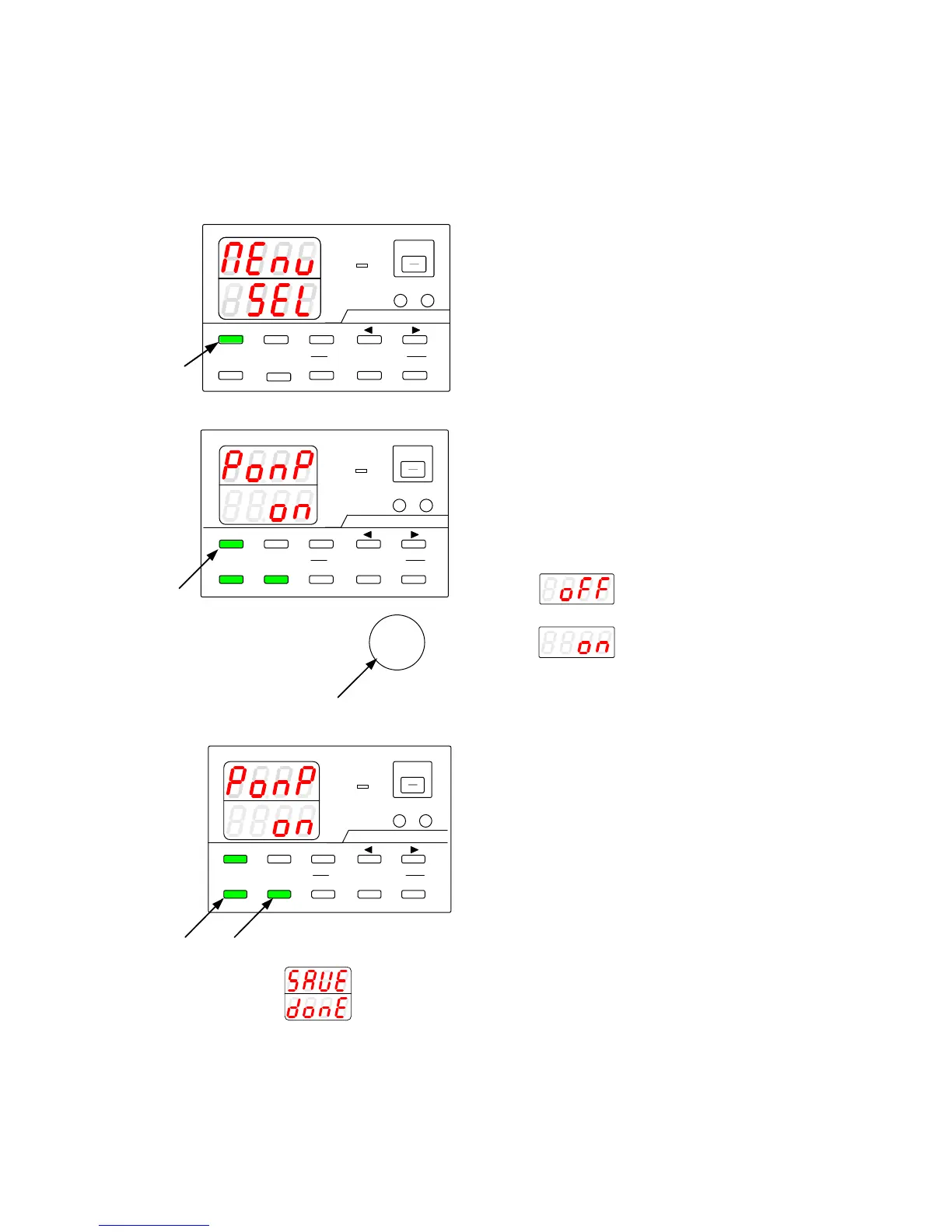

Operation procedure
1.
Turn on the power switch while pressing and
holding the MENU key.
Release the MENU key when the panel is lit.
The MENU key is then lit in green, and the
ESC/KEY LOCK key and the ENTER/MEM key
start blinking green.
The function name is displayed in the voltage
indicator, and the function setting is displayed in
the current indicator.
2.
Repeatedly press the MENU key until "PonP" is
displayed in the voltage indicator.
3.
Turning the rotary encoder displays the following
in the current indicator. Select the desired
setting.
A
W
Displays set values.
A
W
Displays output values.
4.
Press the green-blinking ENTER/MEM key to
enter the setting.
After the setting is entered, the current indicator
stops blinking, remains lit for a short while, and
then starts blinking again.
5.
Press the green-blinking ESC/KEY LOCK key to
exit. The message shown in the figure on the left
appears. Normal operation of the unit is then
available.
Turn the power switch off and then back on to
display the settings that were entered.
