UNIT OPERATING INSTRUCTIONS PREMIUM HMI CONTROLLER
The Language Menu or Alarms Menu will
appear. If the Language Menu appears press
the NEXT key to show the Alarm Menu. When
the Alarms Menu is shown press the SELECT
key.
Select Key

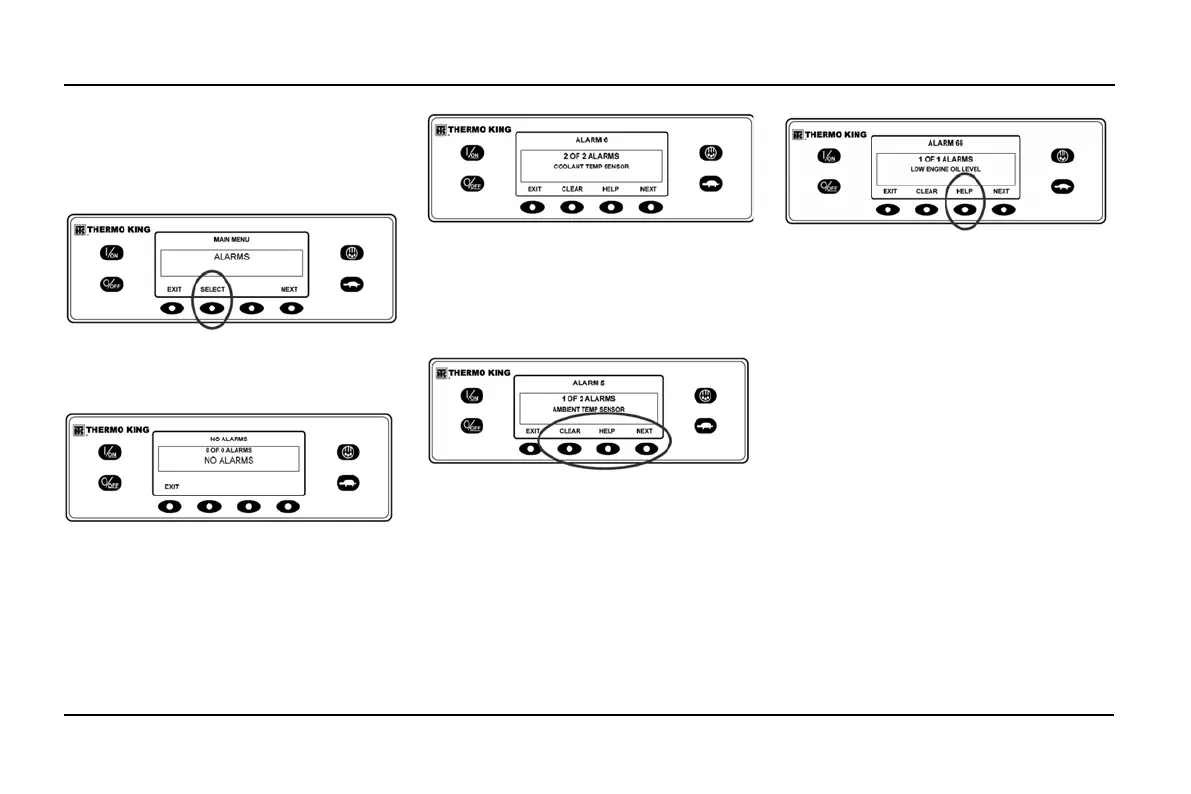

The Alarm Display will appear. If no alarms
are present NO ALARMS will be shown.
No Alarms
If alarms are present, the quantity of alarms (if
more than one) and the most recent alarm code
number will be shown. In the example in
Figure , there are two alarms present. The most
recent is Alarm Code 5 (Figure ). It indicates a
problem with the coolant temperature sensor.
Alarm Code 6
After the alarm situation is resolved press the
CLEAR key to clear the alarm. For additional
information regarding the alarm shown on the
display, press the HELP key. To display the
next alarm, press the NEXT key.
Next Key
If a serious condition occurs, the unit will be
shut down to prevent damage to the unit or the
load. If this occurs, the display will show that
the unit is shut down and display the alarm
code that caused the shutdown. In the example,
the unit is shut down due to low oil level. For
additional information regarding the alarm
shown on the display, press the HELP key.
Help Key
A help message will appear. For the alarm
shown, the message "CHECK OIL LEVEL. IF
UNIT IS SHUT DOWN, REPAIR
IMMEDIATELY. OTHERWISE, REPORT
ALARM AT END OF THE DAY" will be
shown on the display. Check the oil level and
add oil as required, clear the alarm and restart
the engine.
To select a different Main Menu item press the
NEXT key. To return to the Standard Display
press the EXIT key.
Important Alarm Notes
• If an alarm will not clear, it may still exist. If
the alarm is not corrected, it will not clear or
may be immediately set again.
• If an alarm cannot be cleared from the Main
menu, the Clear key will not appear. These
alarms must be cleared from the
Maintenance or Guarded Access Menus.
• All alarms must be viewed before any of the
alarms can be cleared.
