MEC 310 GENSET CONTROLLER
PM075 REV 2 09/08/20 Page 26 THOMSON TECHNOLOGY

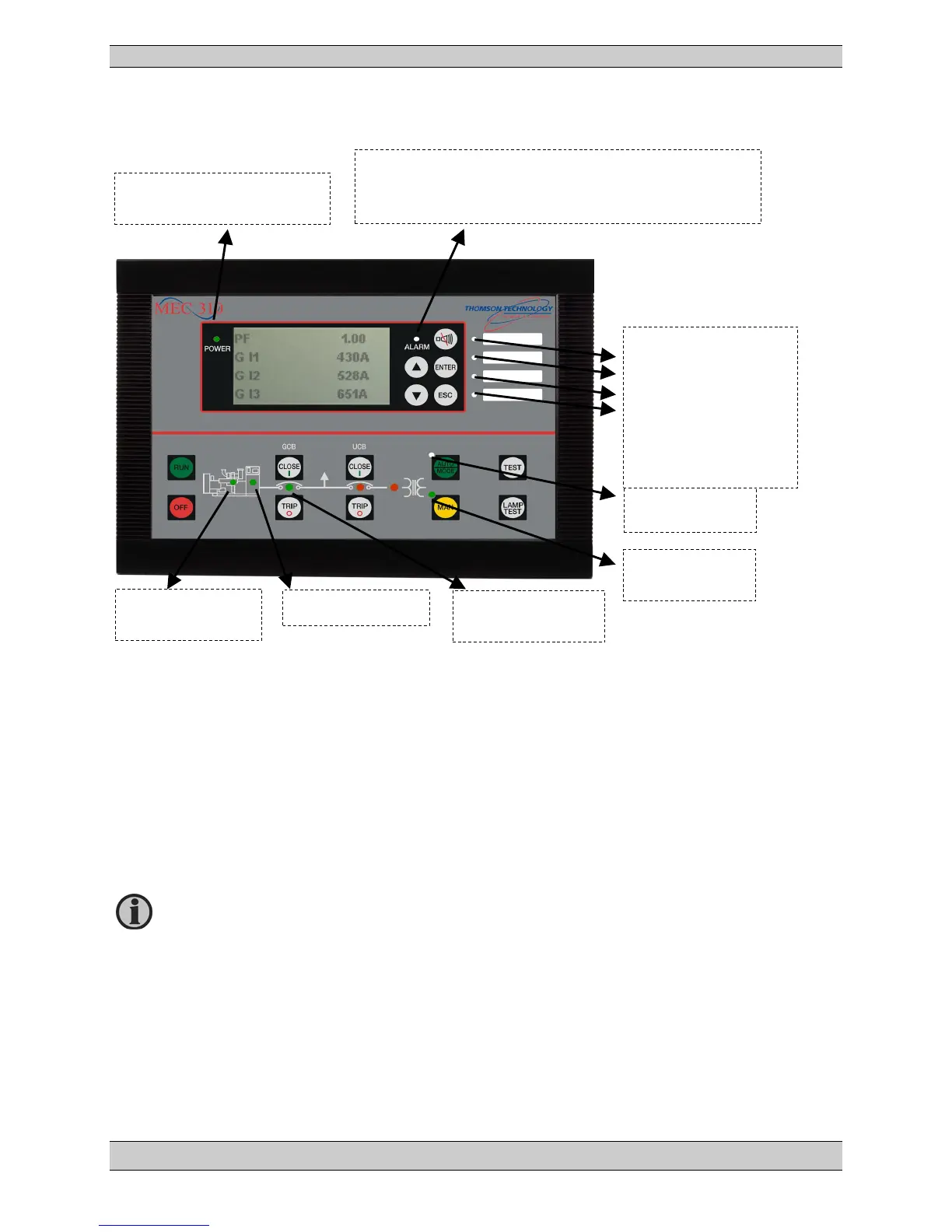

LED functions
Power
: Power OK indicator.
Alarm
: Flashing: Active, non-acknowledged alarm(s) present (factory setting).
Steady: Active, acknowledged alarm(s) present (factory setting).
The alarm LED can also be adjusted to:
Flashing (red): Active, non-acknowledged shutdown alarm(s) present.
Steady (red): Active, acknowledged shutdown alarm(s) present.
Flashing (amber): Active trip stop alarm, trip GB alarm or warning non-acknowledged
alarm(s) present.
Steady (amber): Active trip stop alarm, trip GB alarm or warning acknowledged
alarm(s) present.
Additional alarm indication LEDs
:
Flashing (red): Active, non-acknowledged alarm(s) where output A or B is
configured to LED 1, 2, 3 or 4.
Steady (red): Active, acknowledged alarm(s) where output A or B is configured to
LED 1, 2, 3 or 4.
Alarm
: Flashing (red): Active, non-acknowledged alarm(s) present (factory setting).
Steady (red): Active, acknowledged alarm(s) present (factory setting).
Power
:
Power OK indicator.
Alarm
:
Flashing: Active, non-acknowledged alarm(s) present.
Steady: Active, acknowledged alarm(s) present.
U/f OK generator.
Generator breaker
ON.
Running feedback
present.
ON in AUTO
mode.
ON in manual
mode.
Additional alarm
indication LEDs:
On when the confi-
gured alarm or con-
dition is present (for
more information, see
Alarm indication
LEDs configuration).
This is adjusted in parameter 6940.
