MEC 310 GENSET CONTROLLER
PM075 REV 2 09/08/20 Page 32 THOMSON TECHNOLOGY
fail class. If 6130 is set to 0 seconds, it will be on until the reset horn push-button is activated or
the alarm(s) has (have) been acknowledged.
8. Alarm/limit
When this setting for the relay is selected, the relay can be used in the alarm parameters in the
setting Output A and Output B. This means that with factory settings, the relay 2 can be used in
the parameters as an alarm relay. If the relay is preferred to be a Limit relay, this selection must
be done in the parameter list parameter 5000 to 5060.
9. Fuel pump
Output must be configured to use fuel pump settings.
10. Engine heater
The relay configured to Engine heater will close when the temperature is below the set point in
parameter 6320 and open again when the temperature is above the set point in parameter 6330.
For more information, see the description of the function.
11.
Stop coil (not acc. in start seq.)
The relay configured to this function will do the same as the normal stop coil with one exception:
It will not close between the start attempts.

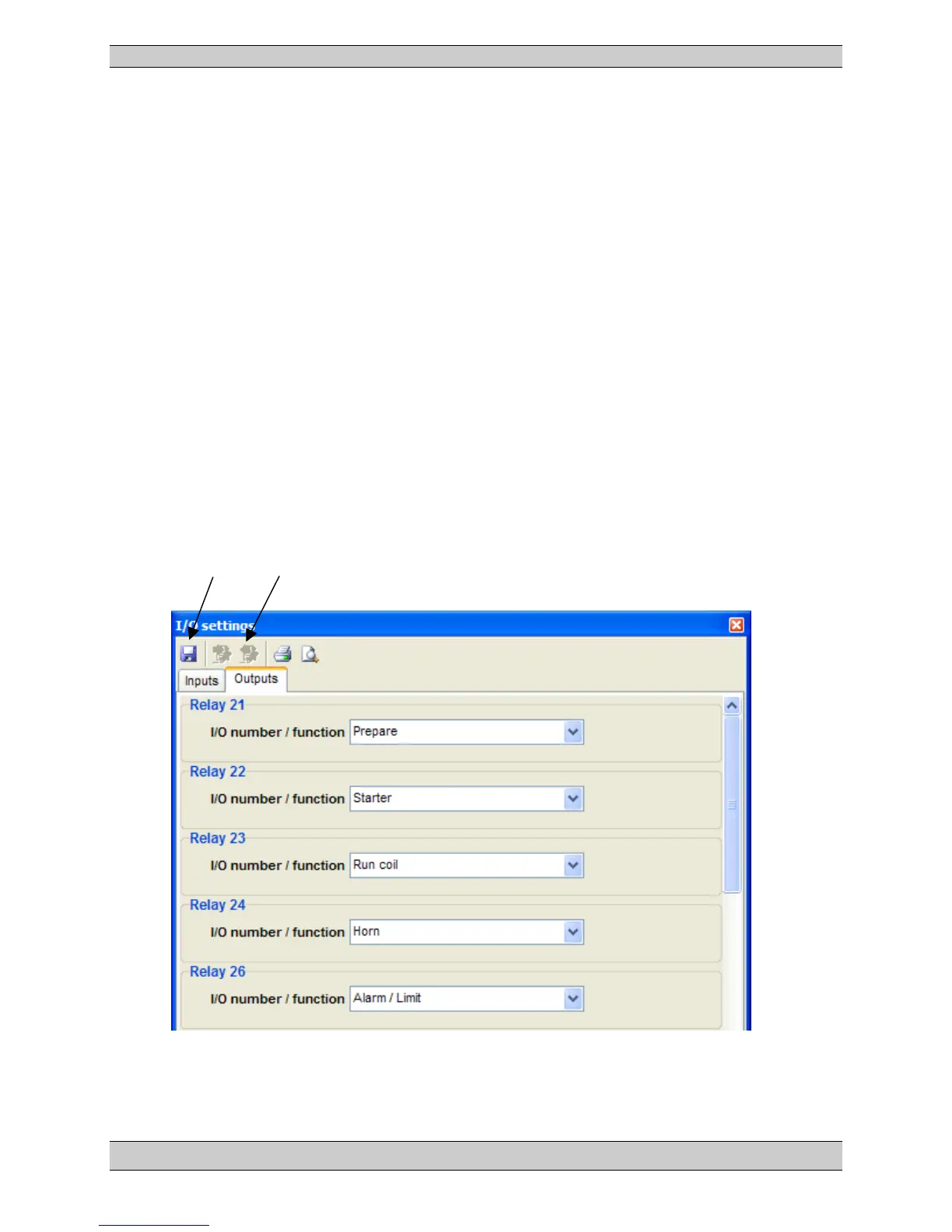

After configuration of the input parameter, it is possible to assign an output. Use the dialogue box
below for configuration of the output relay.
Remember to save and write the settings to the MEC 310 before closing the dialogue box.
