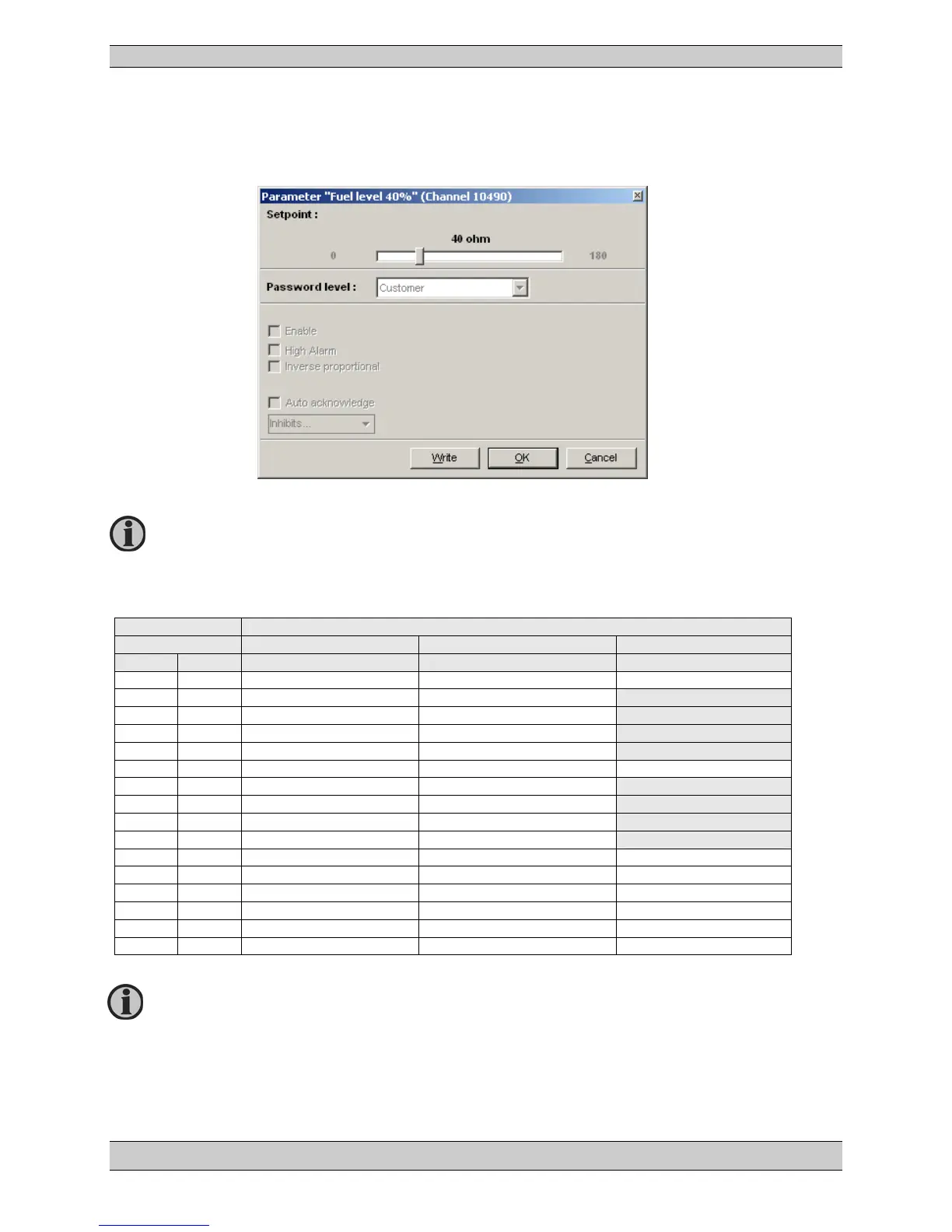

The TSP 300 software setting looks like this:
VDO input 2, oil pressure
VDO sensor type
Pressure Type 1 Type 2 Type 3
Bar Psi Ω Ω Ω
0 0 10.0 10.0 Configurable
0.5 7 27.2
1.0 15 44.9
1.5 22 62.9
2.0 29 81.0 51.5
2.5 36 99.2
3.0 44 117.1 71.0
3.5 51 134.7
4.0 58 151.9 89.6
4.5 65 168.3
5.0 73 184.0 107.3
6.0 87 124.3
7.0 102
8.0 116 155.7
9.0 131
10.0 145 184.0
Type 4 is fully configurable with 8 points in the range 0-240 Ω and 0-10.0 bar.
The
parameter settings can be found from menu 10810.
8 settings are available from 0-150%.
