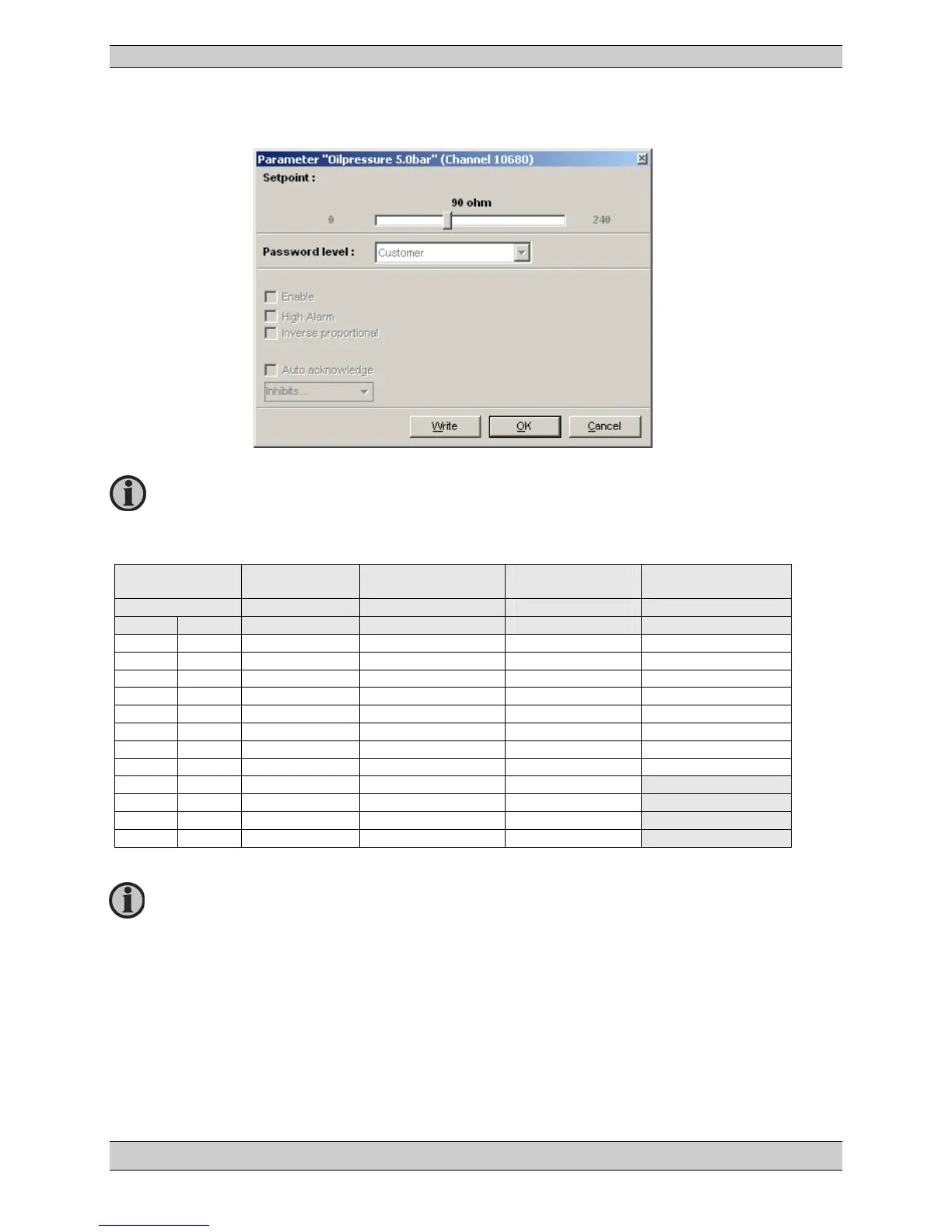

The TPS 300 software setting looks like this:
VDO input 3, cooling water temperature
VDO sensor
type
Temperature Type 1 Type 2 Type 3 Type 4
°C °F Ω Ω Ω Ω
40 104 291.5 480.7 69.3 Configurable
50 122
60 140 134.0 222.5 36.0
70 158 97.1 27.9
80 176 70.1 113.2 19.8
90 184 51.2 83.2 15.8
100 212 38.5 62.4 11.7
110 230 29.1 47.6 9.5
120 248 22.4 7.4
130 266 28.9
140 284
150 302 18.2
8 settings are available from 0-10 bar.
Type 4 is fully configurable with 8 points in the range 0-2500 Ω and 40-
150°C or
104-302°F.
