MEC 310 GENSET CONTROLLER
PM075 REV 2 09/08/20 Page 57 THOMSON TECHNOLOGY

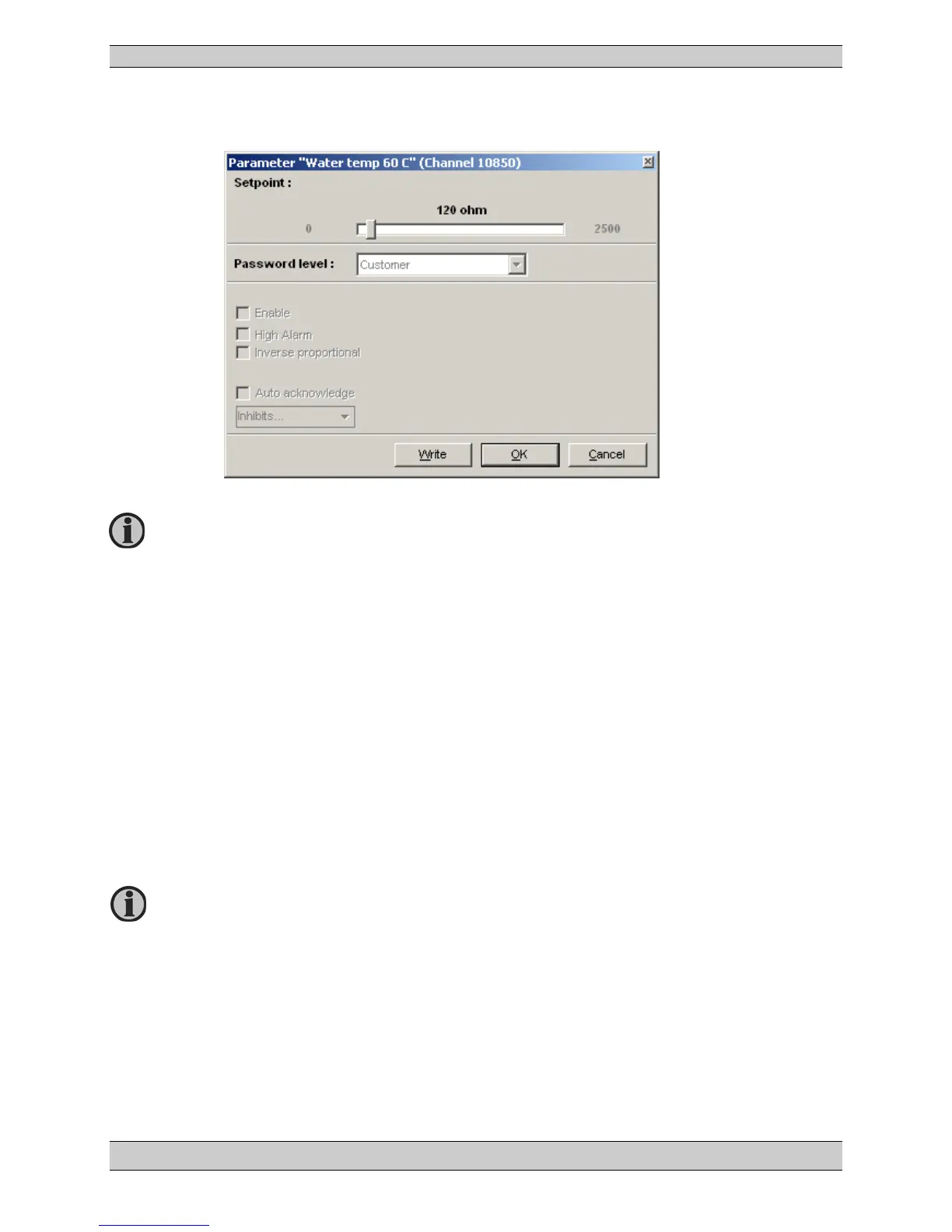

The TPS 300 software setting looks like this:
VDO usage
The VDO inputs are used as alarm inputs and can be configured in the following menus.
VDO input 1: Fuel level - alarm settings in menus:
-
4230 VDO fuel level input 2.1
-
4240 VDO fuel level input 2.2
VDO input 2: Lubricating oil pressure - alarm settings in menus:
-
4310 VDO oil pressure input 2.1
-
4320 VDO oil pressure input 2.2
VDO input 3: Cooling water temperature - alarm settings in menus:
-
4460 VDO water temp input 3.1
-
4470 VDO water temp input 3.2
-
8 settings are available from 0-150° or 104-302°F.
In addition, VDO input 1 is also used for the fuel logic function.
