Component Access
Removing door hinges
1. Remove door from the range.
2. Remove the Stainless-steel door skin,
see prior page for removal.
3. With door skin removed turn the oven
door over so the porcelain enamel side
of the door is facing up .
4. Remove the two mounting screws
holding the hinge to inner door
5. Remove hinge and backing plate. Save
screws and backing plate and reinstall
along with new hinge.
Replacing inner door glass
1. Remove the stainless-steel door skin
from the door ( see steps on prior page
2. Remove the 6 screws, 3 per side.
Remove middle glass and brackets
3. Remove the 6 screws holding sheet
metal insulation cover , Lift and remove
the sheet metal insulation retaining
cover.

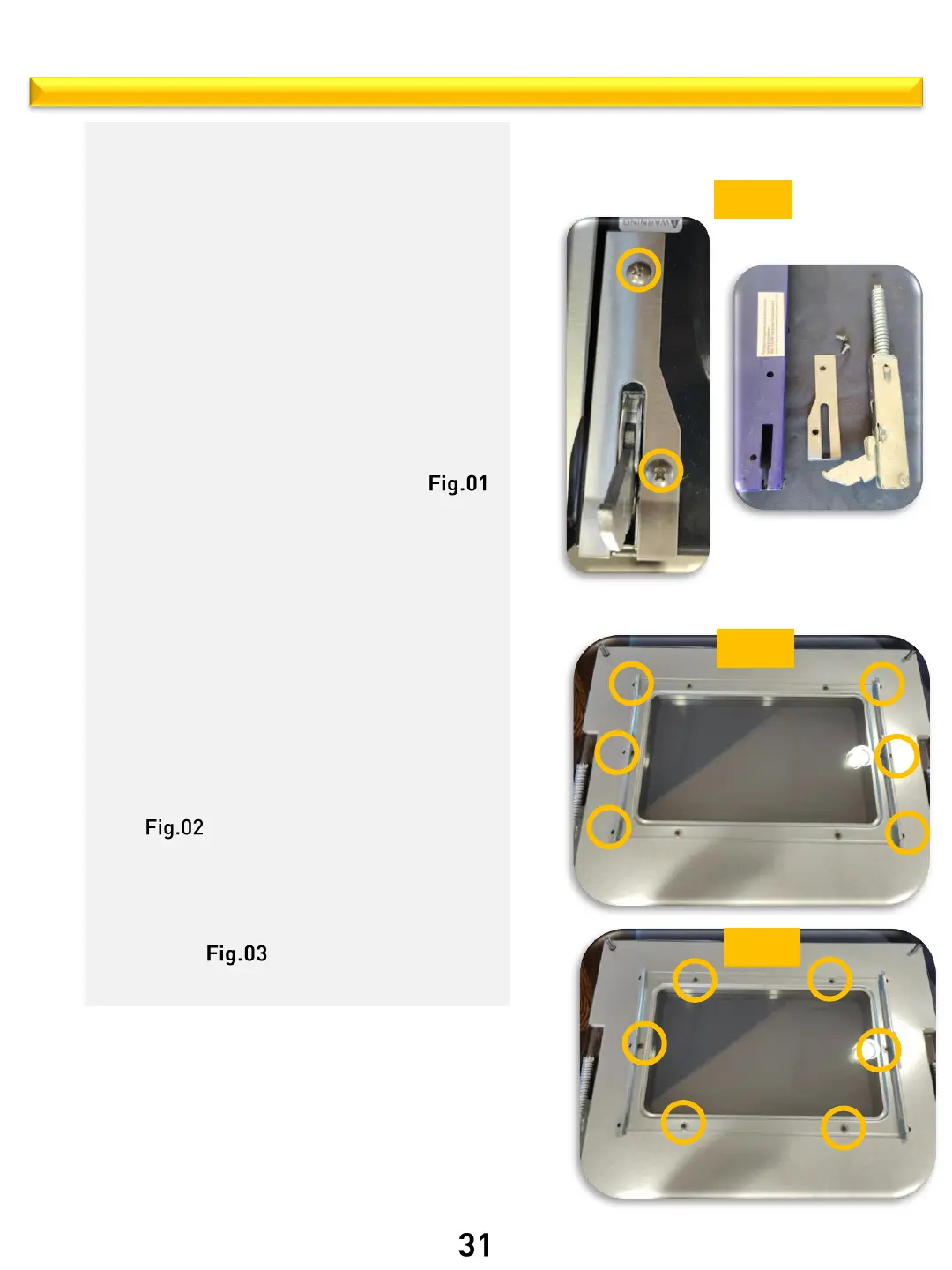

Fig.01
Fig.03
Fig.02
To Next Page
