ARE – Broil strip circuits
Thor Kitchen internal use only

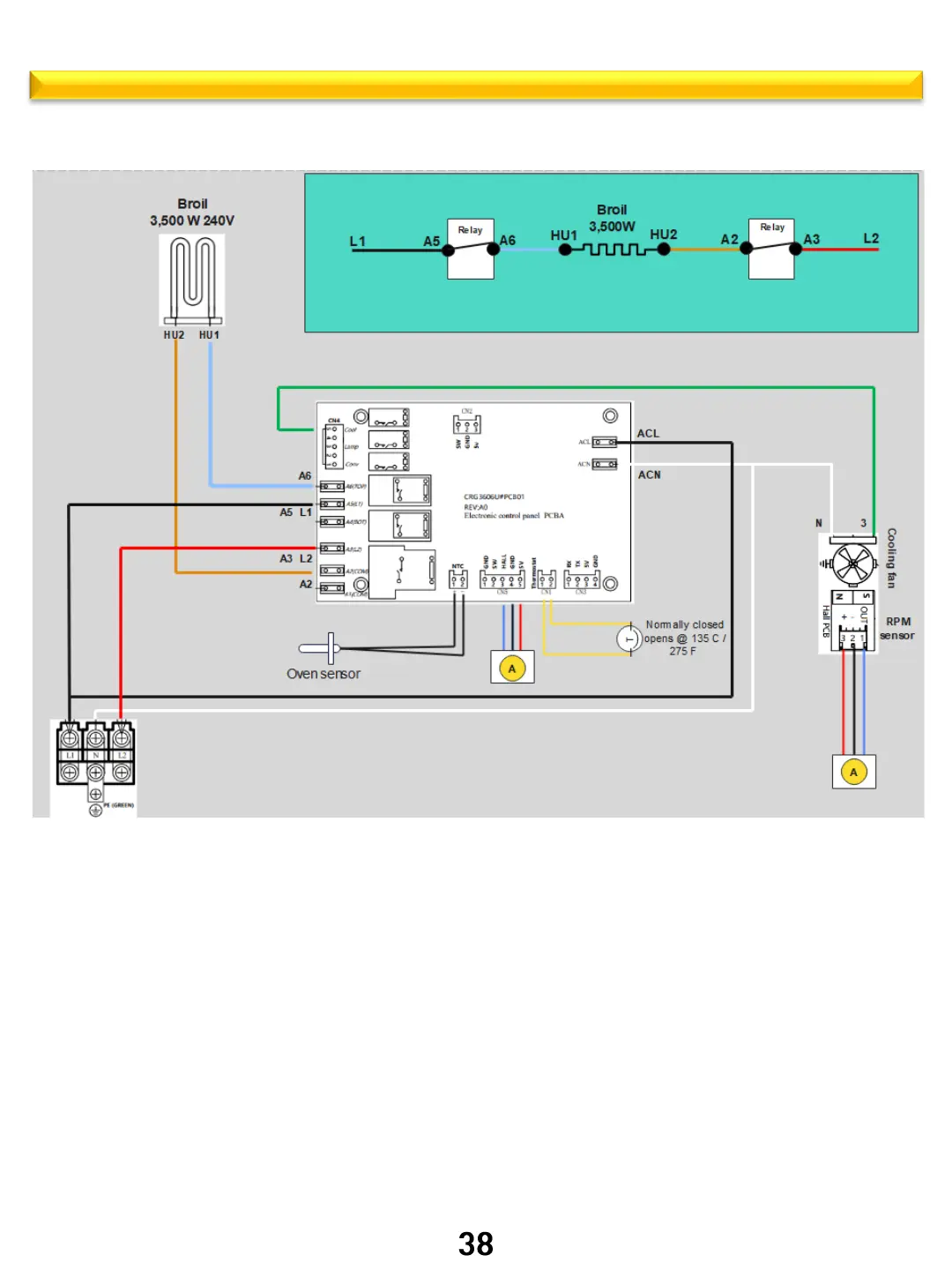

Broil circuit
• A5 L1 Black wire and A3 L2 Red wire supply the 240V input to the
control board. When Broil cycle is selected the Broil relay will close L1
phase voltage will exit relay PCB on A6 Blue Wire and travel to Broil
element terminal HU1.
• Double line break relay will close at same time as Broil relay. This will
supply L2 phase, it will exit relay PCB on A2 Brown wire and travel to
Broil element Terminal HU2.
• There will now be 240V present to heating element
