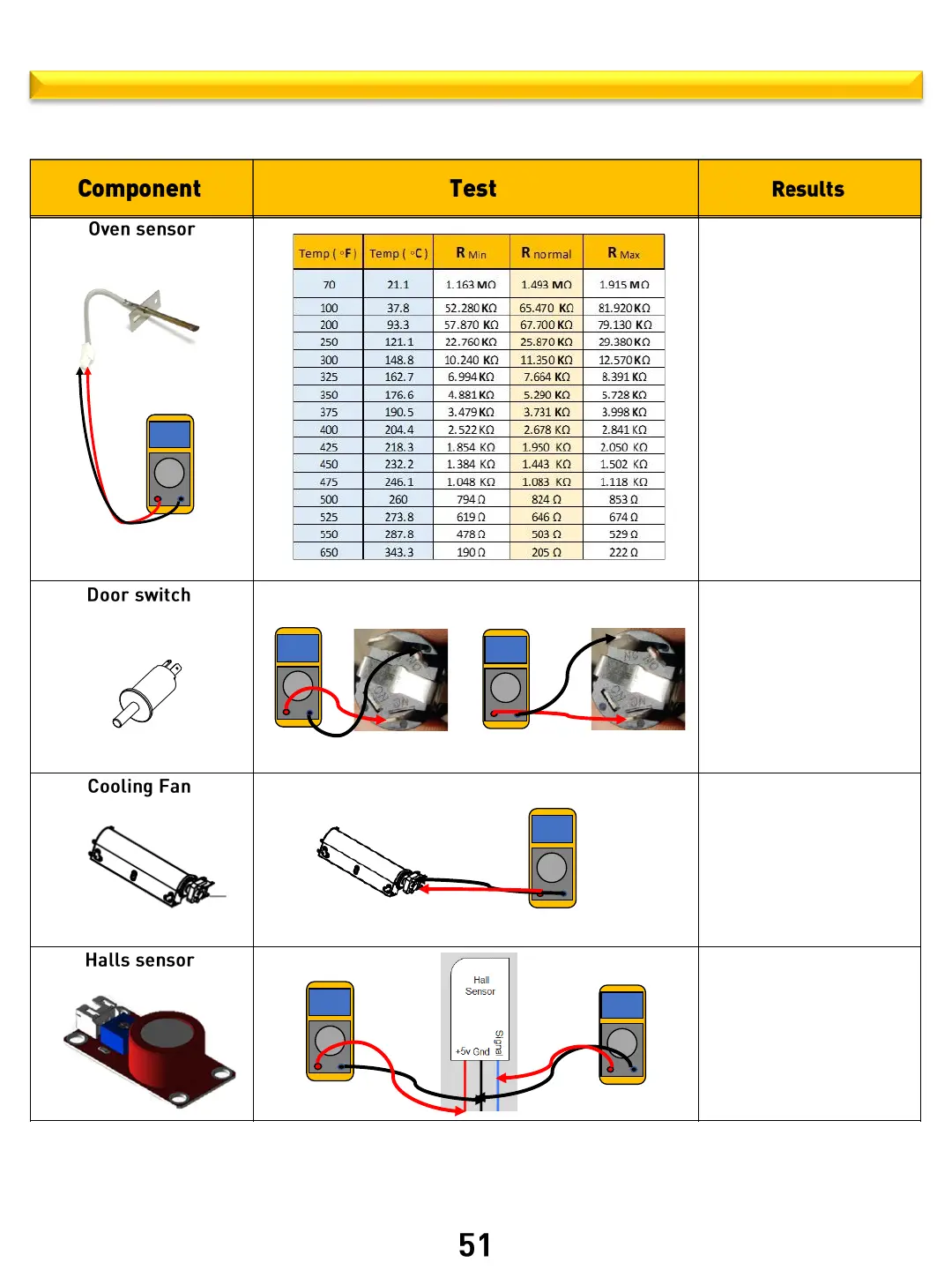

Thor Kitchen ARE30 - Oven sensor; Door switch; Cooling Fan; Halls sensor

Component check
Thor Kitchen internal use only
Normal : 35Ω ± 5Ω
operating voltage 120Vac ± 5V
Check at CN5 connector
Red wire (Pin5) to Black wire (Pin4)
Normal : +5V
Fan rotating
Blue wire (Pin3) to Black wire (Pin4)
Normal : 2.5 Vdc
30 Ω
Normal
:
1.5 MΩ
@
room temp 70°F - 75 F
Min 1.1 MΩ
Max 1.9 MΩ
See chart to left for
resistances based on temp
Broil
Broil Element
1 Ω
OL
Normal : Door switch closed
Com to NO = closed ≤ 1 Ω
Com to NC = Open
Door switch open
Com to NO = Open
5 V
2.5v
1.5
MΩ
