Thor Kitchen ARE30 - Broil Element; Bake Element; Main PCB; Hi limit safety thermostat

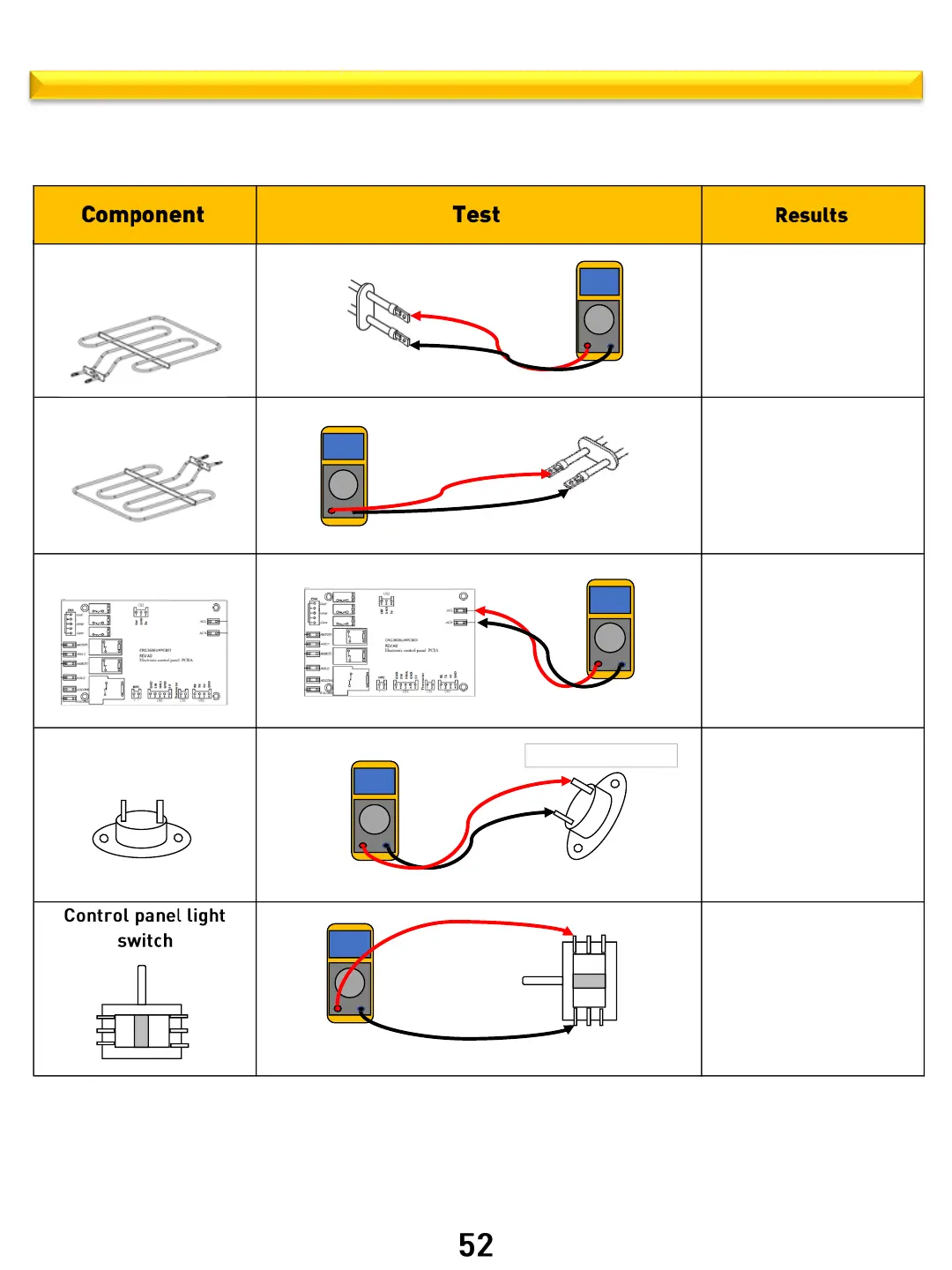

Component check
Thor Kitchen internal use only
Check across front two terminals of
control panel light switch
Normal:
Switch on : 1 to 3Ω
Switch off : OL / Open
Normal : 17.5 Ω ±5Ω
Abnormal : OL / open
Note: element amp draw 14.5 Amps
Normal : 17.5 Ω ±5 Ω
Abnormal : OL / open
Note: element amp draw 14.5 Amps
Main PCB
Check across ACL to ACN for voltage
Normal: 120Vac ± 5v
Hi limit safety thermostat
Check between the two terminals of
the thermostat
Normal : 1 -3 Ω
Abnormal: OL / Open
Bake Element
3,500 watts 240V
19 Ω
Bake
Broil
Broil Element
3,500 watts 240V
16 Ω
OL
1 Ω
1 Ω
Opens at 135◦C / 275◦F
