Thor Kitchen ARE30 - Infinite switch (Single zone element) LR and RR locations

Component check
Single Zone
LR
RR
MR
Infinite SW LOC
OFF
ON
Knob position
Check point
Open
Open
Closed
Closed
P1 to 2
P2 to 4
P1 to 2
Component
Test
Result

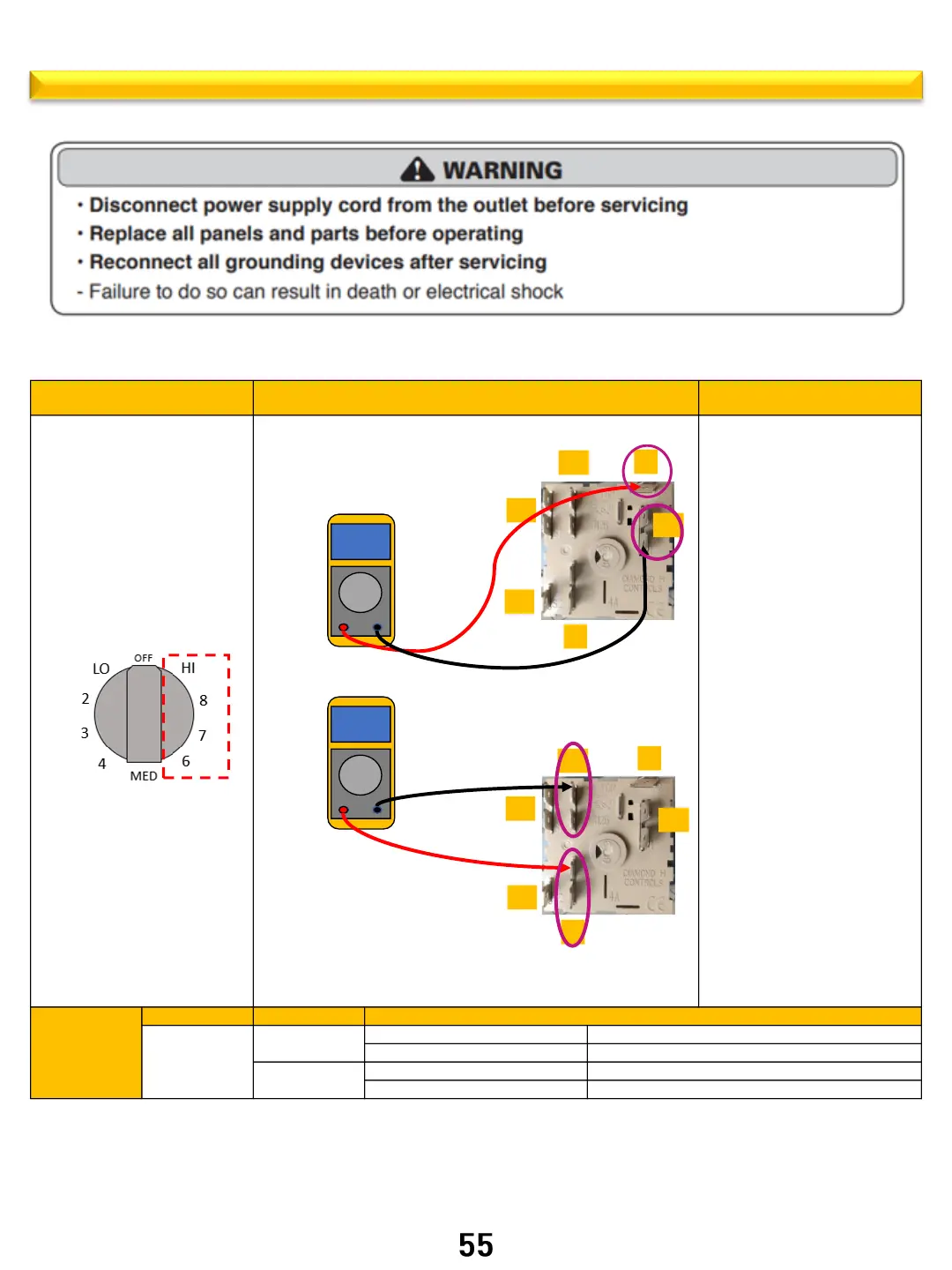

Check Infinite switch : Check
1
With infinite switch in the HI
position measure the resistances
between Terminals 2 & P1
Normal : 1Ω or CLOSED
Abnormal : OL / OPEN
Check Infinite switch : Check
2
With infante switch in the HI
position measure the resistances
between terminal 4 and P2
Normal : 1 Ω or CLOSED
Abnormal : OL / OPEN
P2 to 4
Infinite switch
(Single zone element)
LR and RR locations
2
P2
S1
S2
S2
P1
4
S1
P2
4
2
P1
1 Ω
1 Ω
