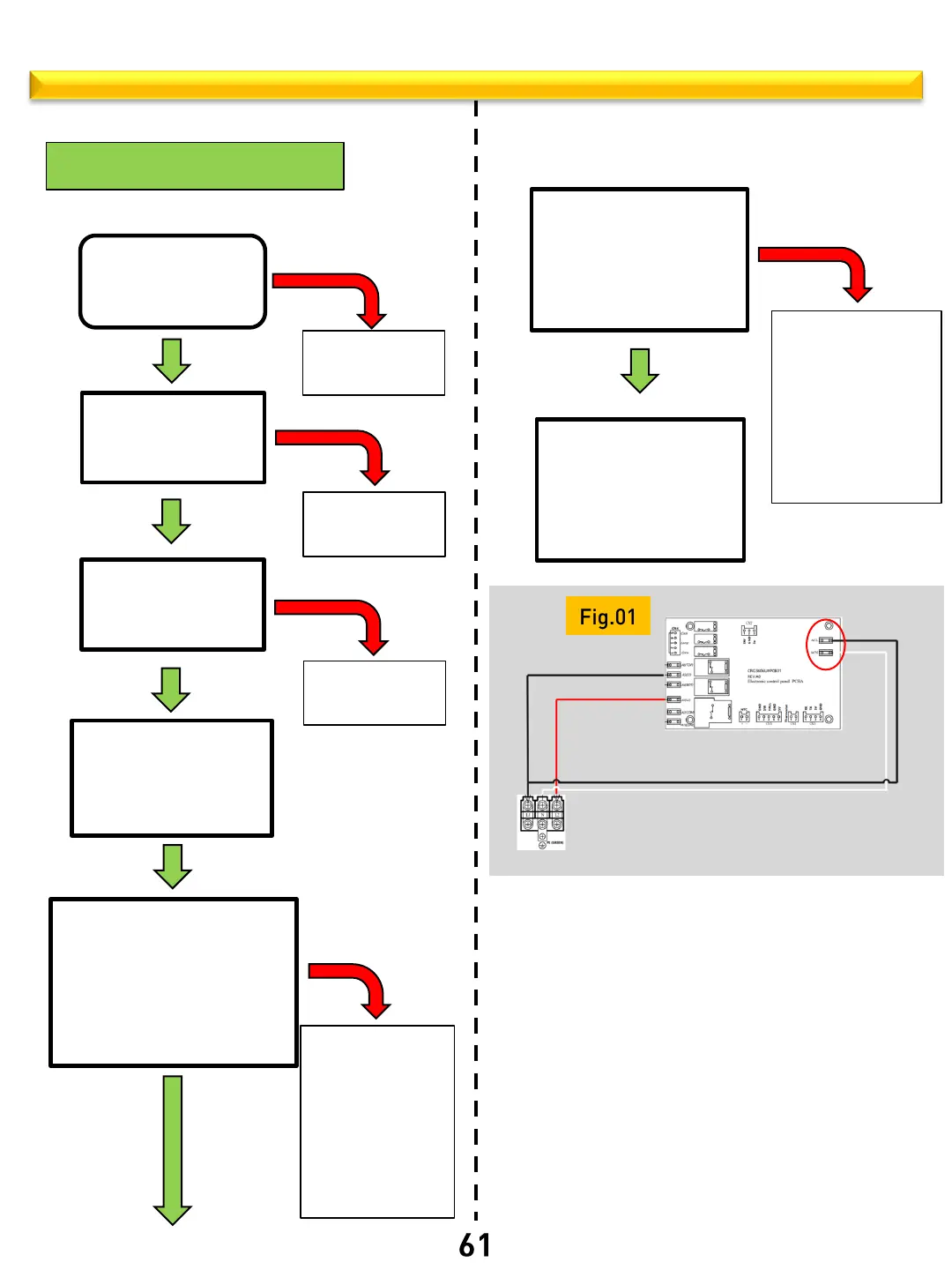

Troubleshooting No power / Display
Check house
outlet : L1 to L2
240 Vac ?
Refer to
electrician
Check house
outlet : L1 to N
120Vac ?
Refer to
electrician
Check house
outlet : L2 to N
120Vac ?
Refer to
electrician
Move to terminal
block on range,
check both sides of
terminal block
Repeat same checks L1
to L2, L1 to N and L2 to
N on input and output
side of terminal block.
Are voltages correct
No power / No display
NO
YES
YES
NO
NO
NO
YES
YES
Repair
terminal / wire
connections or
replace power
cord or
harness as
needed
YES
NO
Check input voltage
to main PCB across
terminals ACL and
ACN Fig.01
120 Vac ?
If voltage is present
across ACL to ACN
and there is no
display replace the
Main PCB
Repair broken
wire or terminal
connection
between
terminal block
and Main PCB /
replace harness.
END
