THORLABS DCC1645C Description And Sdk Manual

© 2016 Thorlabs Scientific Imaging
4 Programming (SDK)
127
Sample 1 for AOI
// Sets the position and size of the image by using an object of the IS_RECT type.
IS_RECT rectAOI;
rectAOI.s32X = 100;
rectAOI.s32Y = 100;
rectAOI.s32Width = 200;
rectAOI.s32Height = 100;
INT nRet = is_AOI( hCam, IS_AOI_IMAGE_SET_AOI, (void*)&rectAOI, sizeof(rectAOI));
Sample 2 for AOI
// Returns the AOI position and size by using an object of the IS_RECT type.
IS_RECT rectAOI;
INT nRet = is_AOI(hCam, IS_AOI_IMAGE_GET_AOI, (void*)&rectAOI, sizeof(rectAOI));
if (nRet == IS_SUCCESS)
{
INT x = rectAOI.s32X;
INT y = rectAOI.s32Y;
INT width = rectAOI.s32Width;
INT height = rectAOI.s32Height;
}
Sample 3 for AOI
// Returns an UINT object indicating whether IS_AOI_IMAGE_POS_ABSOLUTE is set for the X position.
UINT nAbsPos = 0;
INT nRet = is_AOI(hCam, IS_AOI_IMAGE_GET_POS_X_ABS, (void*)&nAbsPos , sizeof(nAbsPos ));
if (nRet == IS_SUCCESS)
{
if (nAbsPos == IS_AOI_IMAGE_POS_ABSOLUTE)
{
// set
}
else if (nAbsPos == 0)
{
// not set
}
}
Examples for setting absolute AOI positions in memory
x = 100
y = 100

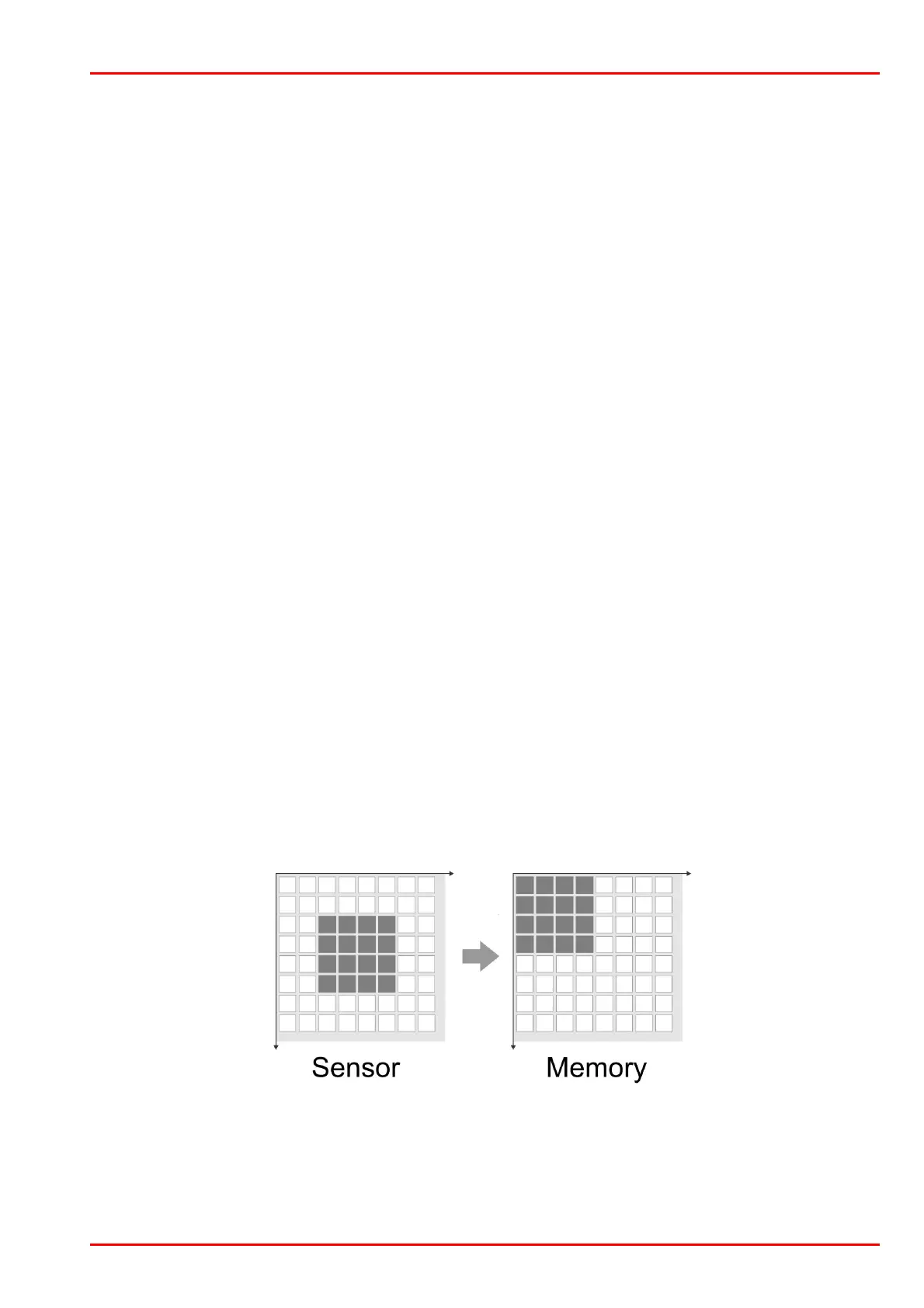

AOI without absolute memory positioning
x = 100 | IS_AOI_IMAGE_POS_ABSOLUTE
y = 100
