DCx Camera Functional Description and SDK Manual

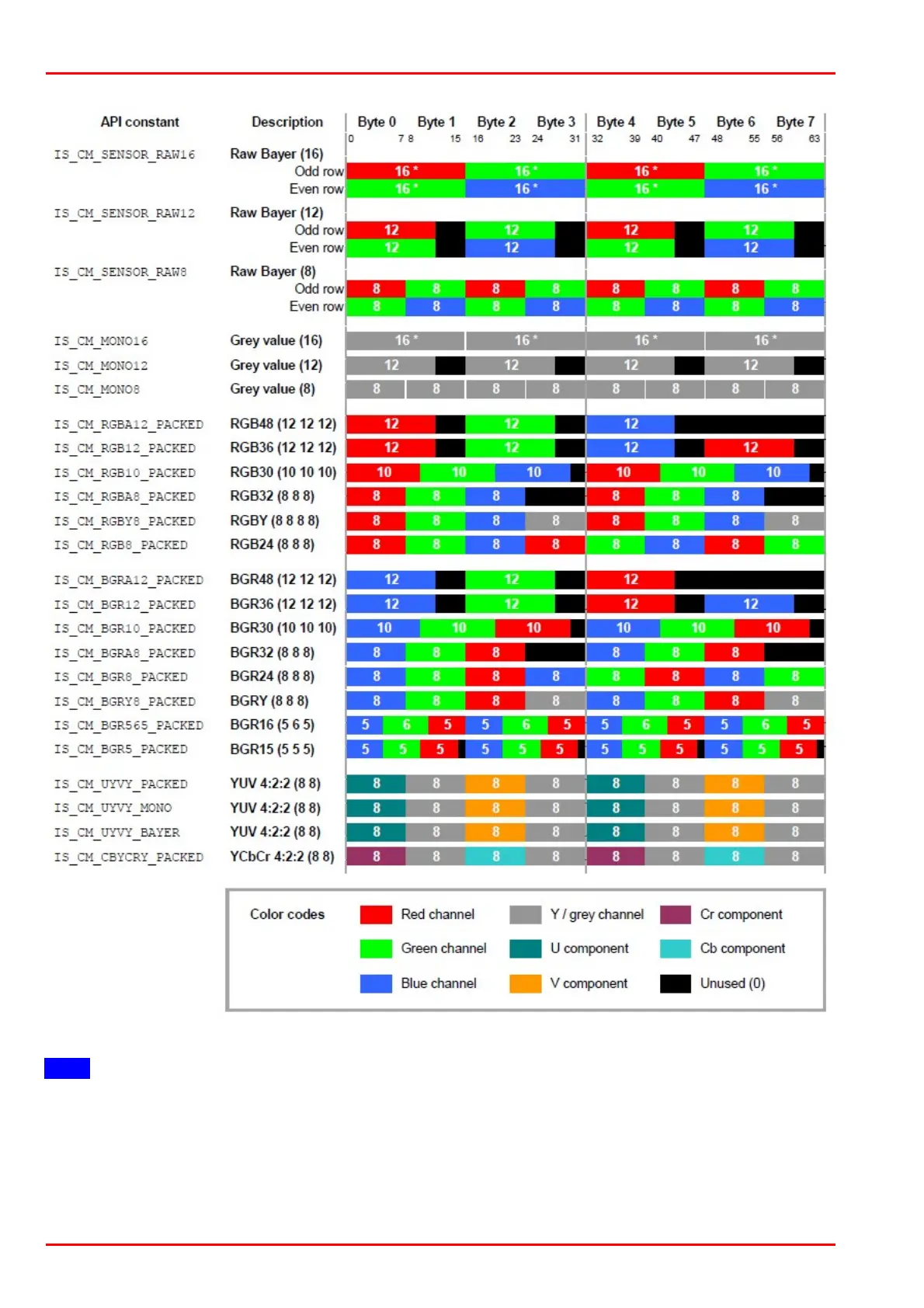

Colour and memory formats
Note
An asterisk (*) identifies formats which are filled starting with the most significant bit (MSB) but
which may have less than the indicated number of payload bits, depending on the camera model.
For the RGB16 and RGB15 data formats, the MSBs of the internal 8-bit R, G and B colors are
used.
The first pixel in the first line with the index (0,0) is always a red pixel at color cameras.
The list above does not contain the IS_CM_RGB8_PLANAR color format. In planar RGB the image is
