Block circuits
Block circuits may be connected to equipment located in a different switchboard: For the aim of
reliability, it is recommended to use conductors having a cross sectional thickness of at least 1 mm
2
and to not exceed 5 km in length. For connections that are particularly critical in terms of electro-
magnetic pollution, it is recommended to use BFO adaptor modules with fi bre optic connection.
When devices without committed pilot wire circuits must be embedded (devices other than Pro-N
or Pro-NX), or in the event that further I/O circuits are need, output relays and binary inputs can be
customized to work in the logic selectivity system together with the committed pilot wire circuits.

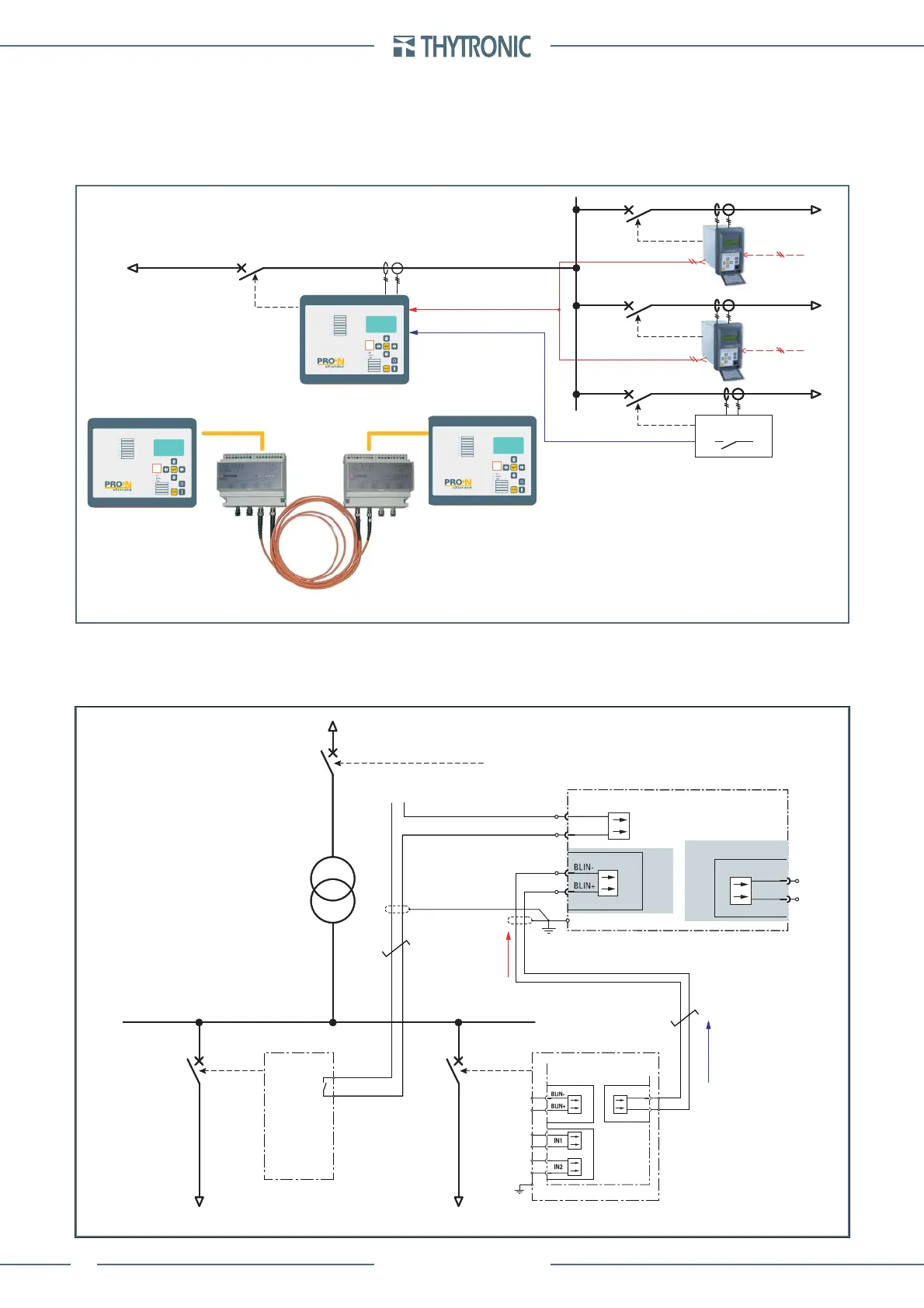

Logic selectivity with BFO
Block-sch.ai
BLIN1
BLIN1
BLIN1
Block2 IPh
BLOUT1
BLOUT1
TRIP I>>
TRIP I>>
TRIP I>>
TRIP I>>
Any device
Logic selectivity with BFO
Block-sch.ai
BLIN1
BLIN1
BLIN1
Block2 IPh
BLOUT1
BLOUT1
TRIP I>>
TRIP I>>
TRIP I>>
TRIP I>>
Any device
Example for accelerated protection system with joint use of binary input and pilot wire links
Block-misto.ai
BLIN1
BLOUT1
Uaux
TRIP I>>TRIP I>>
START I>>
TRIP I>>
S1
S2 S3
Pro_N
Pro_NX
BINARY INPUTS
A19
A20
A21
A22
BLOCK OUT
BLOCK IN
A17
A15
BLOUT-
BLOUT+
A16
A18
BLOCK IN
3
4
X
1
2
BLOCK OUT
BLOUT-
BLOUT+
X
16
20
IN1-16
Example for accelerated protection system with joint use of binary input and pilot wire links
Block-misto.ai
BLIN1
BLOUT1
Uaux
TRIP I>>TRIP I>>
START I>>
TRIP I>>
S1
S2 S3
Pro_N
Pro_NX
BINARY INPUTS
A19
A20
A21
A22
BLOCK OUT
BLOCK IN
A17
A15
BLOUT-
BLOUT+
A16
A18
BLOCK IN
3
4
X
1
2
BLOCK OUT
BLOUT-
BLOUT+
X
16
20
IN1-16
