Tomey TMS-5 User Manual

3- 4
3.2 Preparation before use
3.2.1 Considerations for external light interference
Use the attached hood if there is any external light
interference when capturing in slit mode.
Follow the steps below to attach the hood.
1)

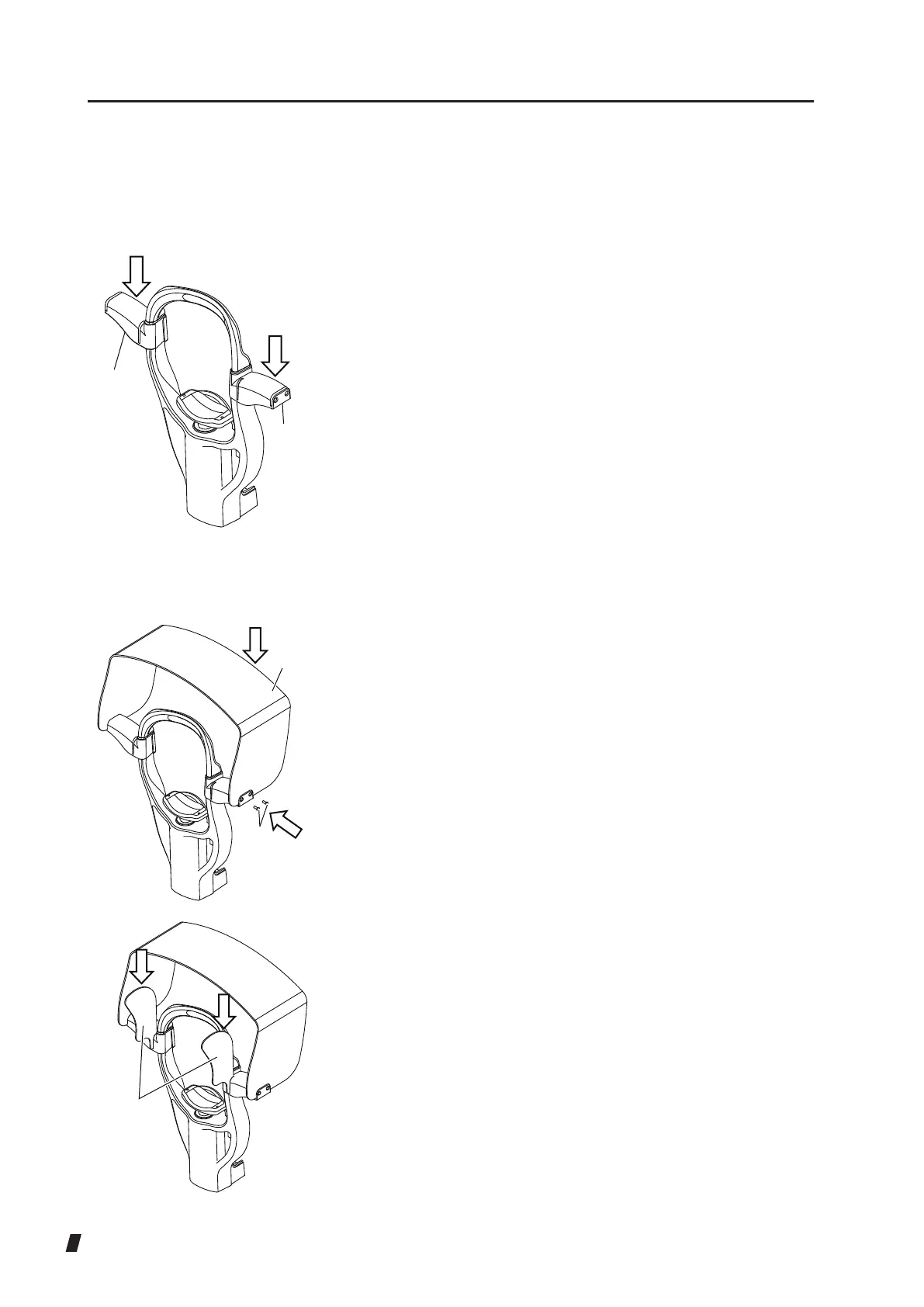

Insert holder L and holder R (1) into the chin rest. (Fig. 1)
Do not force the holders. Otherwise, components may
be damaged.
2) Insert the cover (2) into holder L (R).
Pay attention to the attachment direction.
3) Insert rivets (3) from the right and left sides. (Fig. 2)
4) Insert the rear plate visors (4) into the slots on holder L
(R). (Fig. 3)
(1)
(1)
(Fig. 1)
(3)
(2)
(Fig. 2)
(4)
(Fig. 3)
