(3) Eraser button
Deletes trace lines shown in red. Touch the line in the image to delete it.

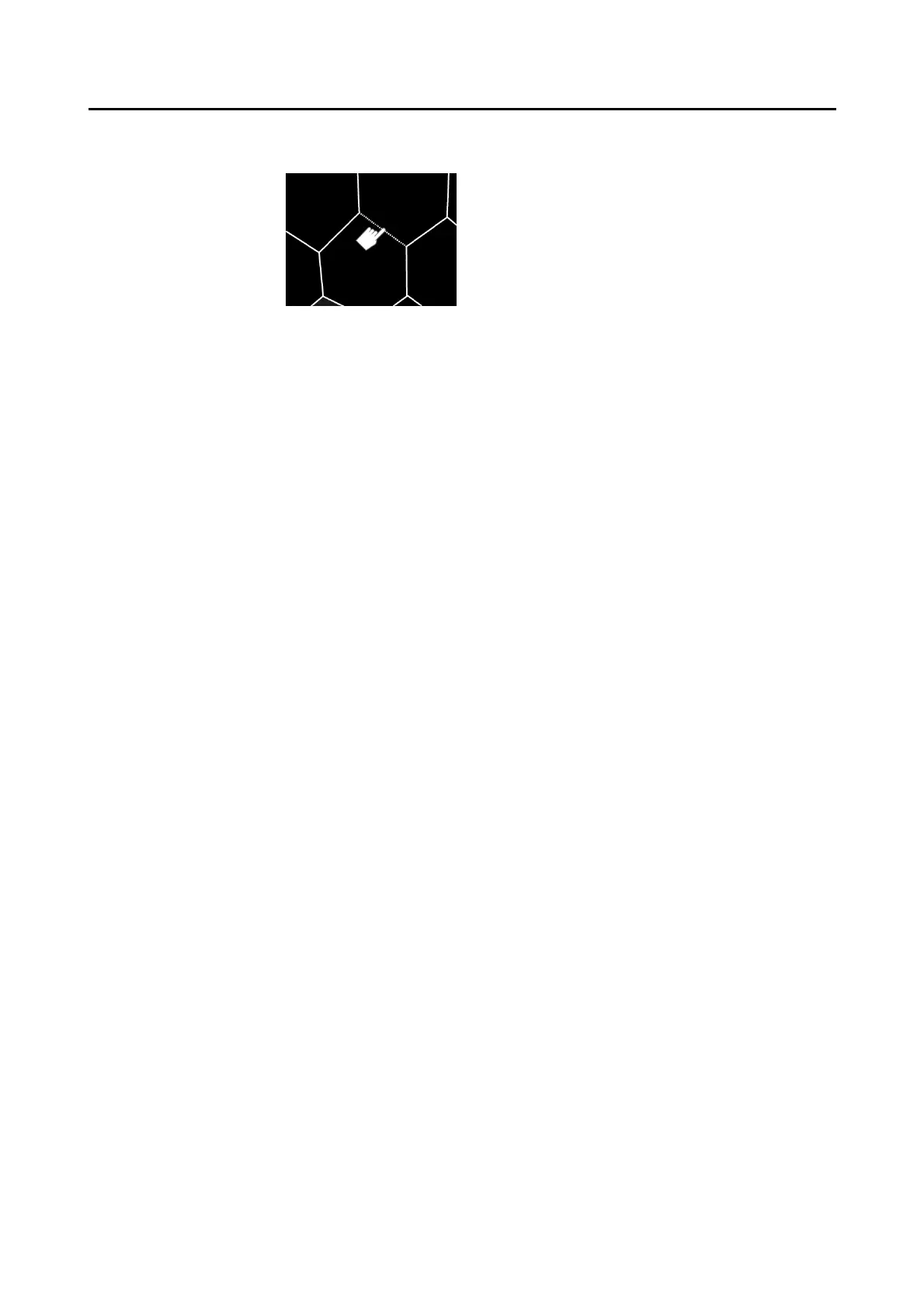

(Fig. 4)
(4) Analysis range selection button
Specifies the range to be analyzed. Specify an area to be analyzed by
selecting two opposing points in an area where the shape of the cell
can be confirmed.
When “100 ȝm” is set to "L-count range” of the system setup items,
touch the center of the 100ȝm-square frame. Refer to “3.7.3
Application" for the system setup.
(5) Whole range button
Pressing and holding this button specifies the whole range of the
image of the displayed endothelium tissues.
(6) All clear button
Pressing and holding this button deletes all trace lines of endothelium
tissues and dark areas currently displayed.
(7) Automatic selection button
Pressing and holding this button deletes all trace lines of endothelium
tissues and dark areas currently displayed, and then displays trace
lines of automatically extracted endothelium tissues and dark areas.
(8) Undo/Redo button
Returns or proceeds to the condition immediately before or after
respectively.
(9) “Zoom” button
Enlarges the image of the endothelium.
Refer to “2.4.4 Analysis screen” for operation of this button.
(10) “Dark Area” button
Switches the trace lines to be edited. Touching this button changes the
target trace line (red) from the endothelium tissue to dark area. Touch
the button again to return the setting.
(11) “Calc. (calculation)” button
Performs calculation for analysis using the edited trace line and
returns to the analysis screen. Returns to the dark area analysis
screen when the "Dark Area” button is activated.
(12) "Cancel" button
Returns to the analysis screen without applying the edited contents.
Returns to the dark area analysis screen when the "Dark Area” button
is activated.
