21 PRISM SYSTEM
21 PRISM SYSTEM

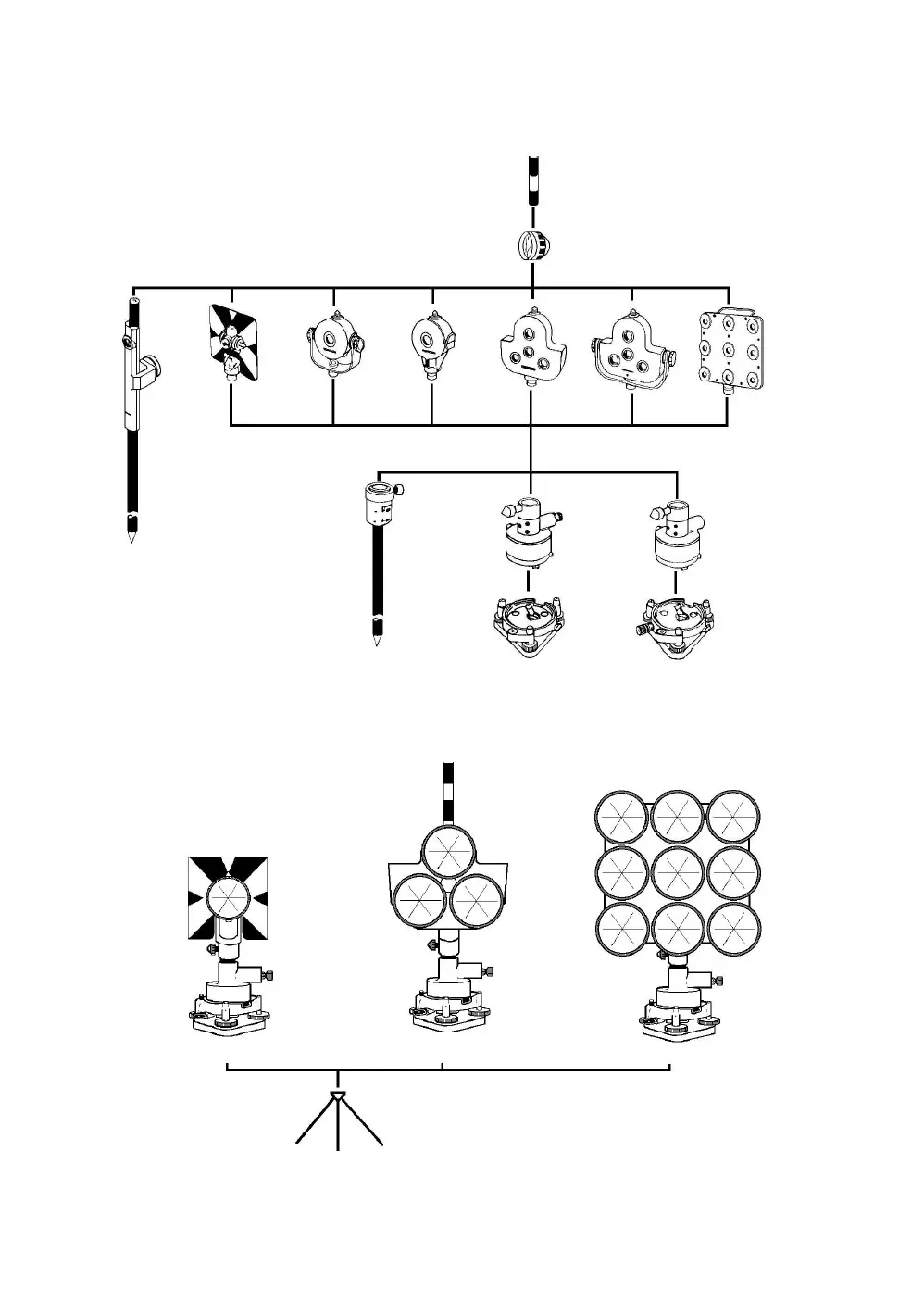

Arrangement according to your needs is possible.
It is possible to change the combination according purpose.
Use the above prisms after setting them at the same height as the instruments. To adjust the height of
prism set, change the position of 4 fixing screws.
Target pole-2
(not used with 9 prisms)
Prism-2
Tilting prism
holder-2
with target
plate-2
Pole adaptor- A
Pole adaptor- F2
Tr ib ra ch
Optical plummet tribrach
Tilting prism
holder-3
Single prism
holder-2
Triple prism
holder-2
Tilting triple
prism holder-1
9 prism
holder-2
Tr ib ra ch
adaptor-2
Tr ib ra ch
adaptor-S2
Tilt single prism unit Fixed 3 prisms unit
Fixed 9 prisms unit
Tr ip od
