3-1
3 ANGLE MEASUREMENT
3 ANGLE MEASUREMENT
3.1 Measuring Horizontal Angle Right and Vertical Angle
Make sure the mode is in Angle measurement.
Operating procedure Operation Display
1
Collimate the 1st target (A).
Collimate A
2
Set horizontal angle of target A at 0° 00' 00".
Press the [F1](0 set) key and press the [F3](YES)
key.
[F1]
[F3]
3
Collimate the 2nd target (B).
The required V/H angle to target B will be
displayed.
Collimate B

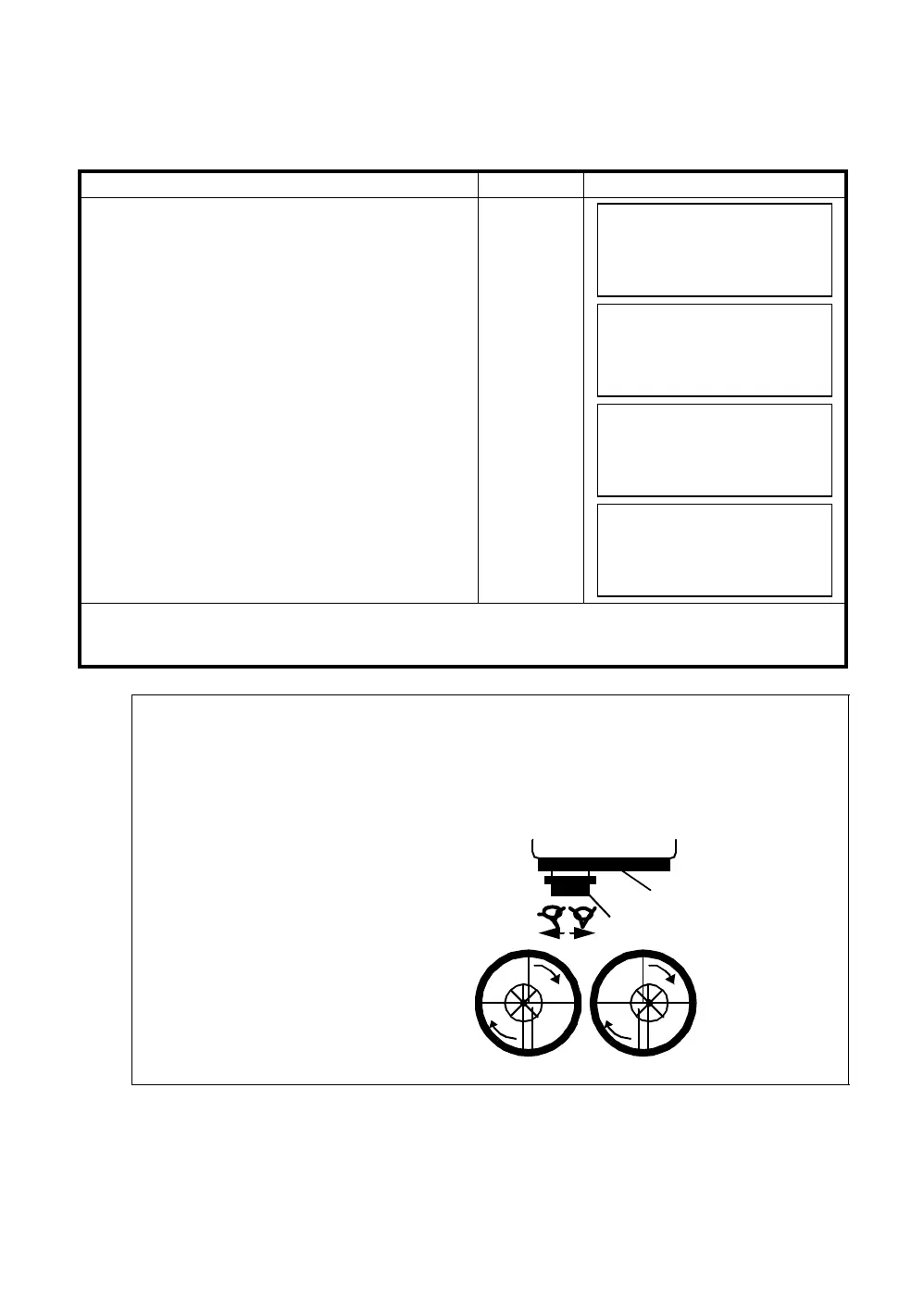

Reference : How to Collimate
1 Point the telescope toward the light. Turn the diopter ring and adjust the diopter so that the cross
hairs are clearly observed.
(Turn the diopter ring toward you first and then backward to focus.)
2 Aim the target at the peak of the triangle mark of the sighting collimator. Allow a certain space
between the sighting collimator and yourself for collimating.
3
Focus the target with the focusing knob.
*If parallax is created between the cross
hairs and the target when viewing
vertically or horizontally while looking
into the telescope, focusing is incorrect
or diopter adjustment is poor. This
adversely affects precision in
measurement or survey Eliminate the
parallax by carefully focusing
and using diopter adjustment.
V : 90°10'20"
HR: 120°30'40"
0SET HOLD HSET P1
↓
H ANGLE 0 SET
> OK?
--- --- [YES][NO]
V : 90°10'20"
HR: 0°00'00"
0SET HOLD HSET P1
↓
V : 98°36'20"
HR: 160°40'20"
0SET HOLD HSET P1
↓
Focusing knob
Telescope eyepiece (Diopter ring
Åá
Åá
Åá
Åá
