27

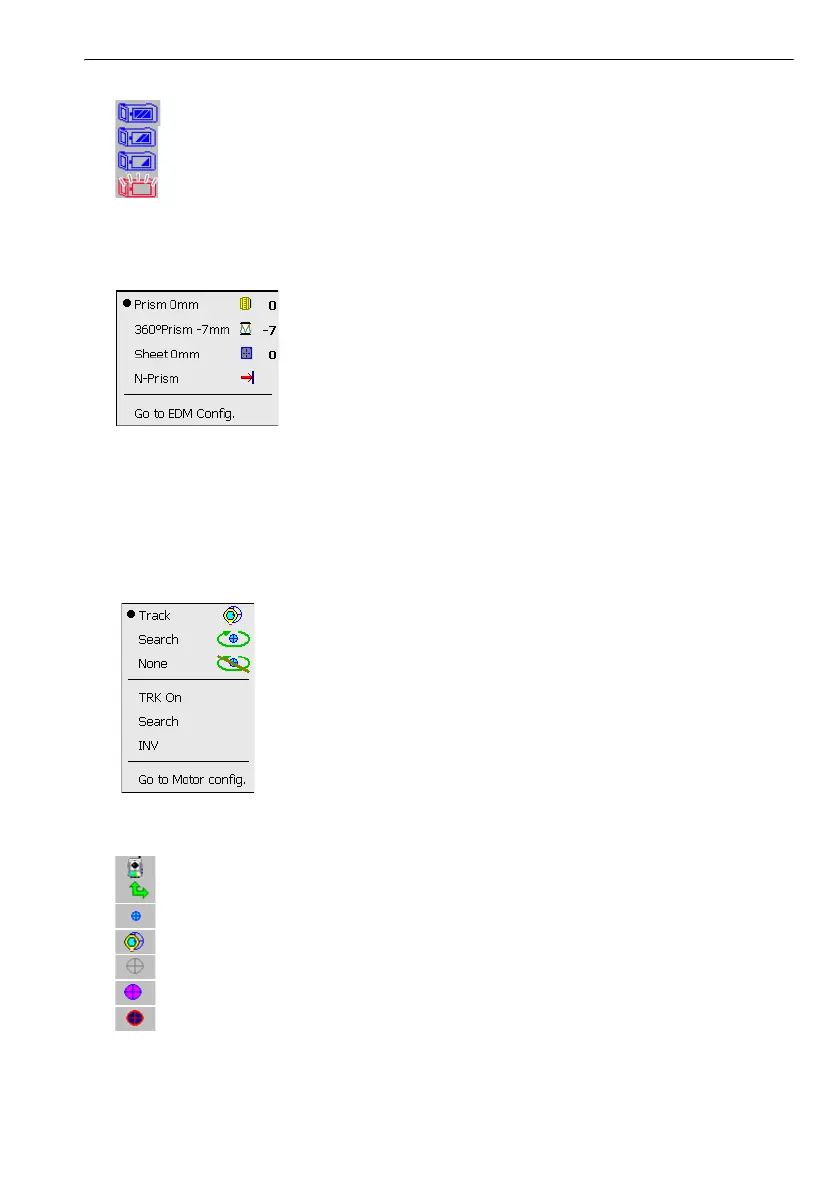

5. BASIC OPERATION
When using external battery
: Level 3 Full power
: Level 2 Plenty of power remains
: Level 1 Half or less power remains
: Level 0 Little power remains. Prepare a replacement battery.
C"6.1 Battery Charging"
(2) Target type icon
Selection of target type and configuration of prism constant correction value.
: Prism (0mm)
: 360° prism (-7mm)
: Sheet (0mm)
: N-Prism
Target information can be edited/recorded in <Reflector setting>.
C"20.3 EDM Settings PROCEDURE Recording and editing target information"
(3) Motor icon
Configuration of Auto Pointing/Auto Tracking status. The display may change slightly depending
on the target type selected. Auto Tracking items are only relevant to Auto Tracking models and
are not available for Auto Pointing models.
: Auto Tracking ON
: Auto Pointing ON
: Both Auto Tracking and Auto Pointing OFF
: Start Auto Tracking. "AT Off" is displayed when performing Auto
Tracking or when in "Prism wait" status. Tap to quit Auto Tracking.
: Begin searching
: Rotates the instrument 180°
One of the following icons will be displayed while the motor is in operation to indicate the current
status of the instrument.
: Rotating
: Rotating at fixed velocity
: Searching/Searching after target lost during Auto Tracking
: Auto Tracking in progress
: Auto Tracking idle (when Auto Tracking set)
: Auto Tracking in predicted direction
: Waiting for prism during Auto Tracking
C""11.3 Measurement with Auto Tracking" & Lost Prism"
