16
ASSEMBLY PROCEDURE

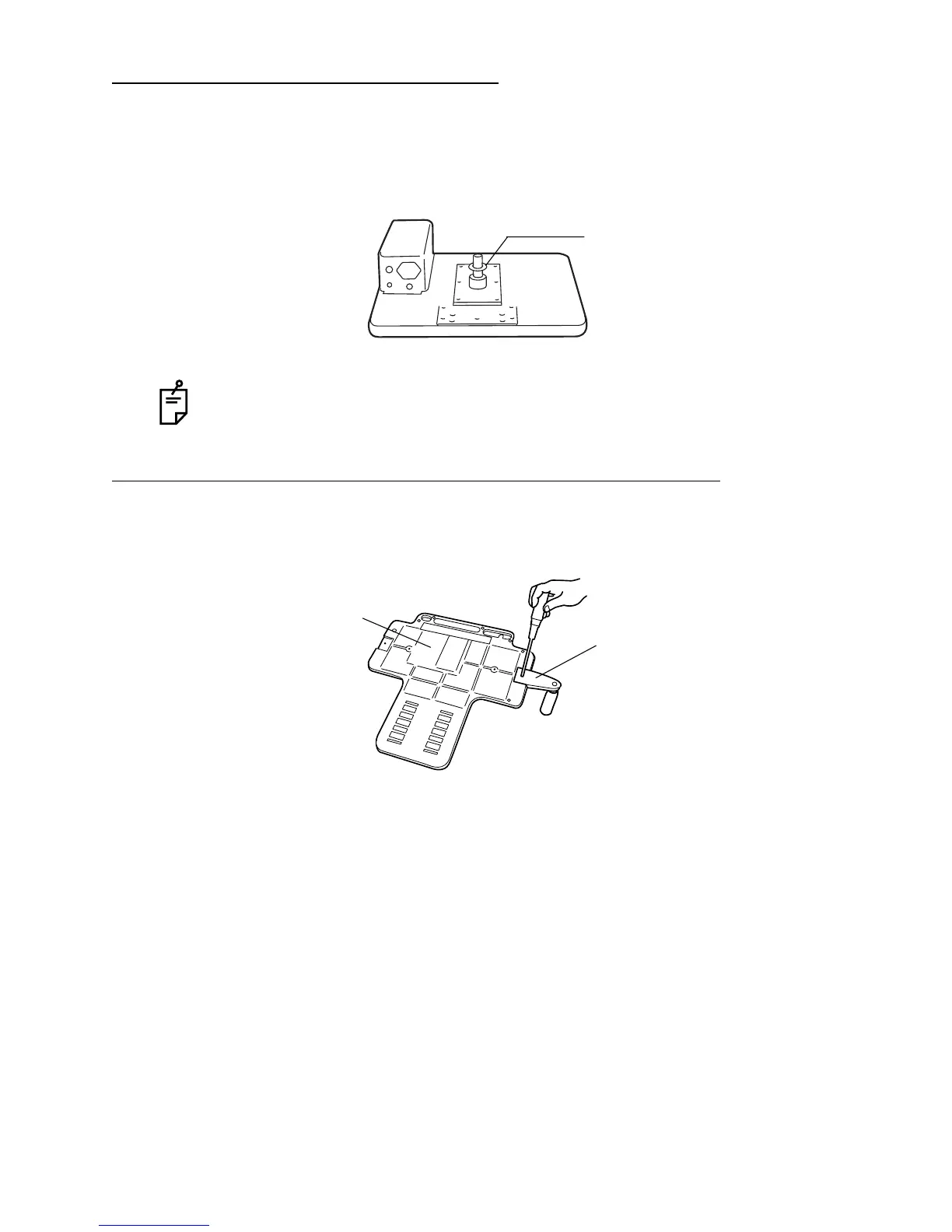

SECURING THE UNIT TYPE TABLE TOP
1
Remove the plastic washer from the unit type table top, which is taped to the shaft assem-
bly.
2
Insert the plastic washer, together with the shaft, into the cavity for the ophthalmic unit
arm.
SECURING THE PATIENT GRIP PG-1(OPTIONAL ACCESSOR
Y)
1
Align the patient grip with a groove on the rear of the chinrest base.
2
Fix the patient grip with screws.
In the unit type table top, the power supply is fitted to attach the ophthalmic unit on
the right hand side. When attaching the ophthalmic unit on the left-hand side,
remove the power supply and reattach it to the right hand side (with 4 screws).
Washer
Patient grip
Chinrest base
