48
MAINTENANCE AND CHECKUPS
PLACING AN ORDER FOR CONSUMABLES
• When ordering consumable items, contact your dealer or TOPCON (see the back cover).
Specify the article name, product code and quantity.

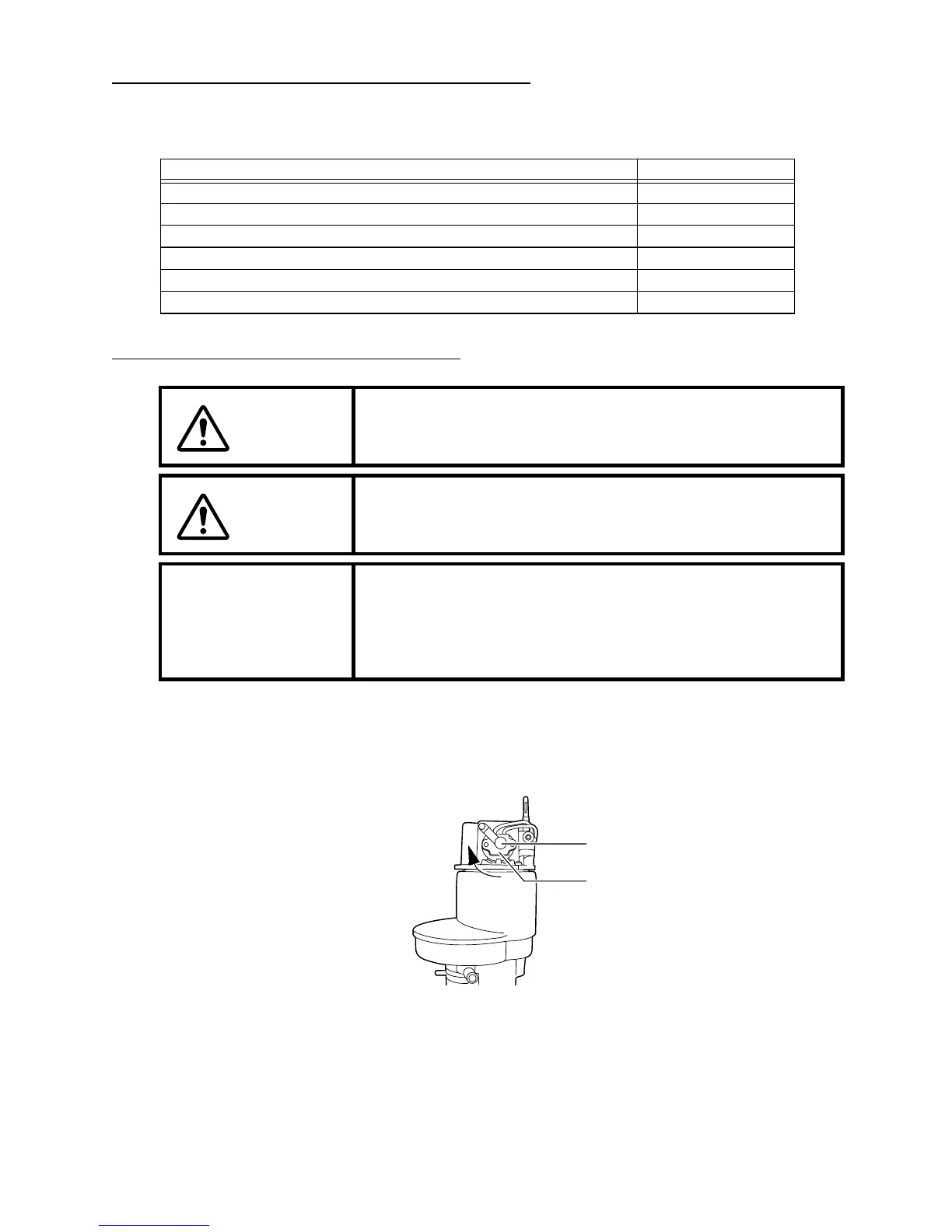

REPLACING ILLUMINATION LAMPS
1 Turn OFF the POWER switch and remove the cable plug.
2 Turn the lamp housing cover clockwise and remove upward.
3 Lightly pull the socket fixing lever and turn in the direction indicated by the arrow.
4 Remove the socket assembly with the lamp.
5 Remove the lamp from the socket.
6 Fit the new lamp in reverse order, making sure the direction of the illumination lamp and
socket is correct.
Article name Product code
Illumination lamp 446802570
Socket 446802590
Chinrest tissue 403104082
Fuse T 2A 250V (BEL Fuse, Part No.5TT2):100V-120V T24000030A
Fuse T 1A 250V (BEL Fuse, Part No.5TT1):200V-240V T24000031A
Fixation target bulb 403504211
CAUTION
When replacing the lamp, switch off the power supply and
remove the power cable to avoid electric shocks.
CAUTION
Beware of high temperatures when replacing the lamp immedi-
ately after switching it off: these could cause burns.
NOTICE
• To ensure perfect illumination, make sure that the socket
flange and notch are firmly fitted to the lamp house.
• Use a soft cloth and do not touch the illumination lamp with
bare fingers: fingerprints and stains may affect illumination
and cause premature failure of the lamp.
Socket fixing lever
Lamp
To Next Page
