OPERATION PROCEDURE
DIFFUSION LENS
When in use, the diffusion lens is set vertically in front of the reflection mirror.
When not in use, remove the lens from the light path.
ENDING PROCEDURE
Turn OFF the Power switch.
The diffusion lens is used for observing the entire object with a low magnifica-tion.
NOTICE
When using the diffusion lens, open the microscope arm and
illumination arm 30° to avoid friction of the diffusion lens and
illumination support. Also, fully open the slit; otherwise this
prevents sufficient light from entering.

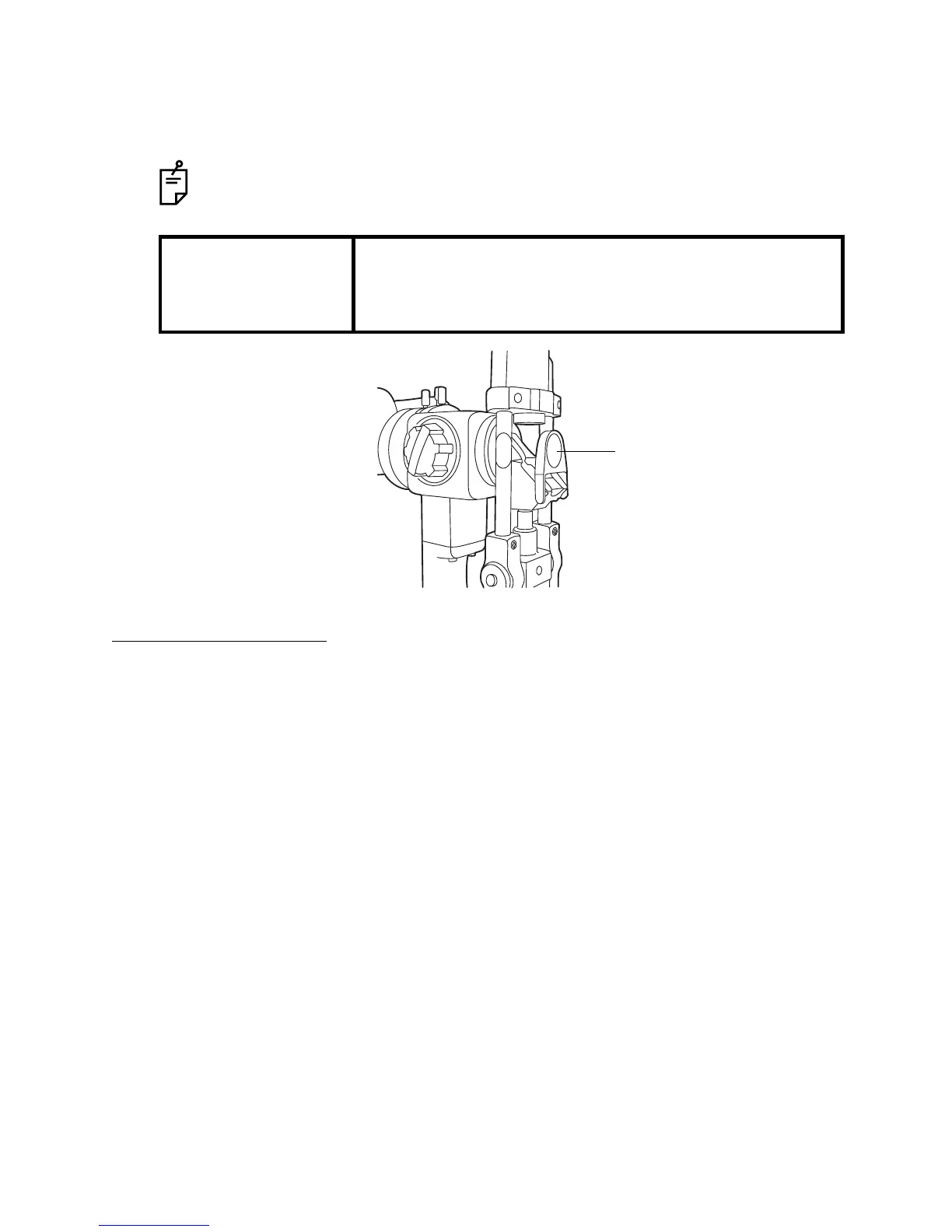

Diffusion lens
* The illustration depicts
the SL-D7 type.
