18

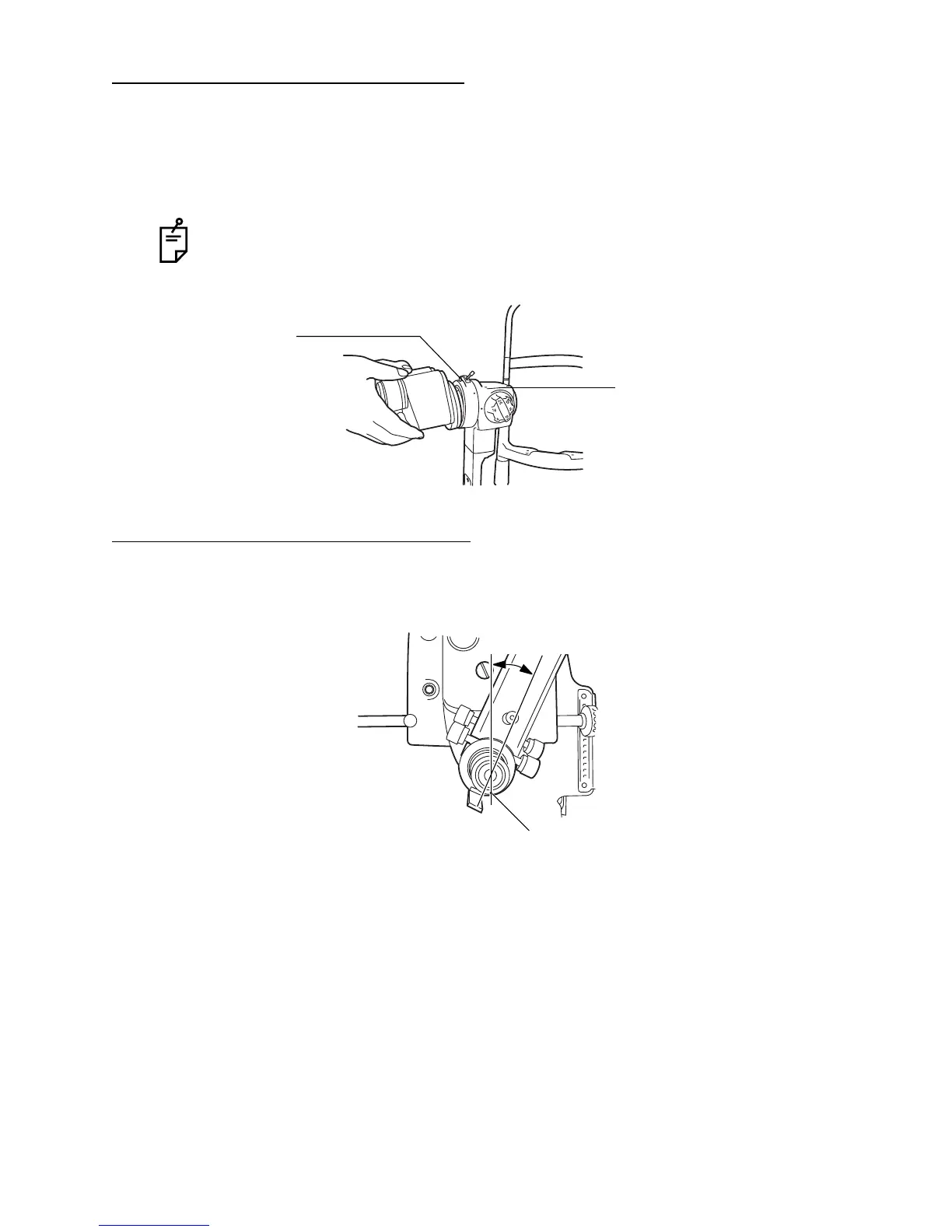

ASSEMBLY PROCEDURE
SECURING THE BINOCULAR TUBES
1
Align the pin of the microscope unit with the groove on the binocular tubes, and fit the
screw with a hexagon wrench.
In the model without excitor/barrier filter, fit binocular tube with the fixing screw.
SECURING THE ILLUMINATION UNIT
1
Loosen the microscope arm locking-knob of the base unit, manually turn the shaft and tilt
the guide rod-shaft index 30-60
°
, then refasten the microscope-arm locking-knob.
Make sure you do not touch the lens surfaces.
Screw
Microscope unit
* The illustration
depicts the SL-D7
30° - 60°
Indices
