20
ASSEMBLY PROCEDURE

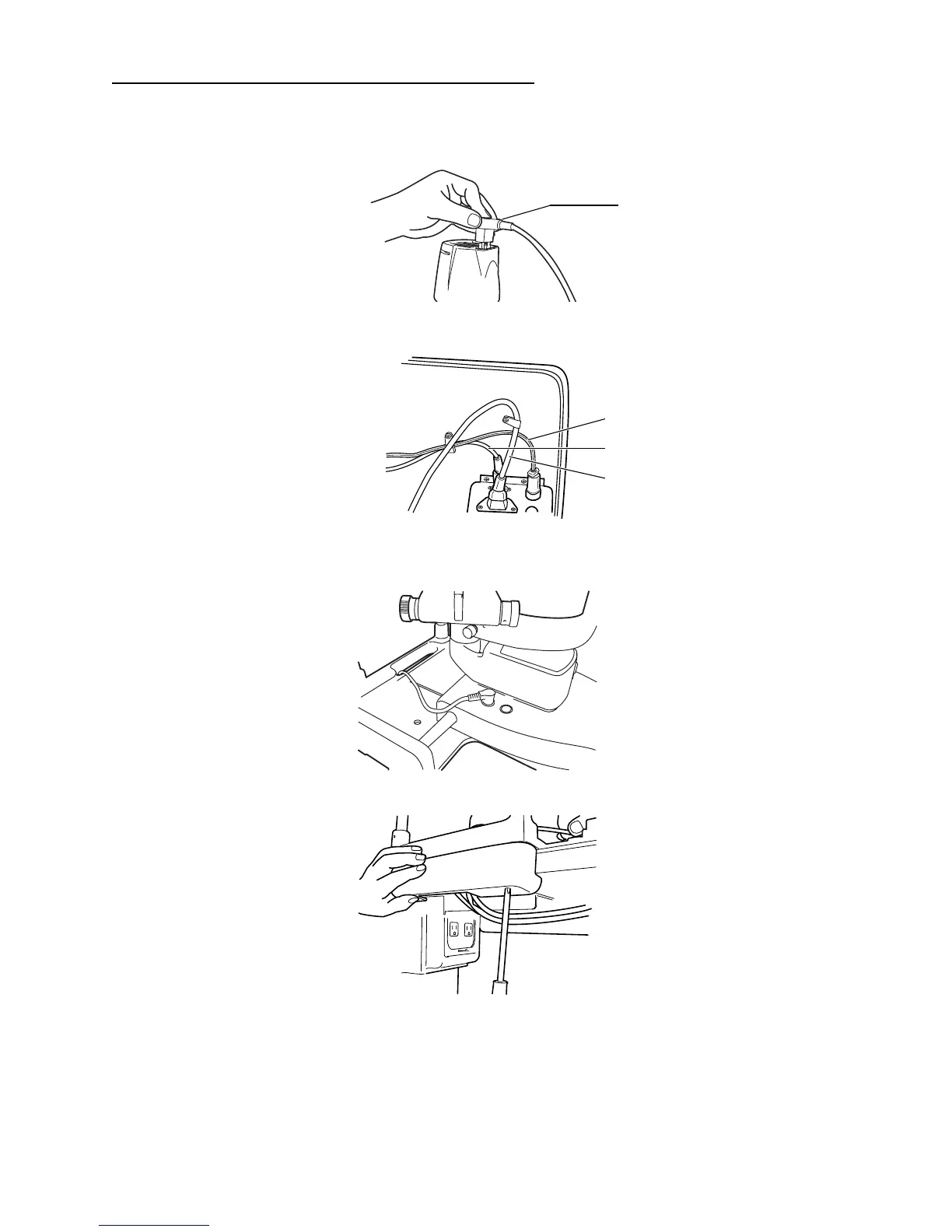

CONNECTING AND SECURING OF CABLES
1
Remove the tape from the lamp house cover of the illumination unit. Plug the cable from
the upper part of the chinrest into the illumination unit.
2
Connect the cable from the lower part of the chinrest unit and the power cable to the
power supply.
3
Pass the 5 pin connector from the metal plug connected to the power supply through the
hole of the chinrest and connect to the base unit.
4
Fit the cable cover with 2 screws (11).
5
Pull the base unit toward the side of the operator, then lock.
Attach the cables to the back of the table with the cable clip (13).
6
Move the base unit and illumination unit, and make sure there is enough cable to allow
free movement of the base unit in all directions.
Plug
Fixation cable
Illumination cable
Power cable
To Next Page
