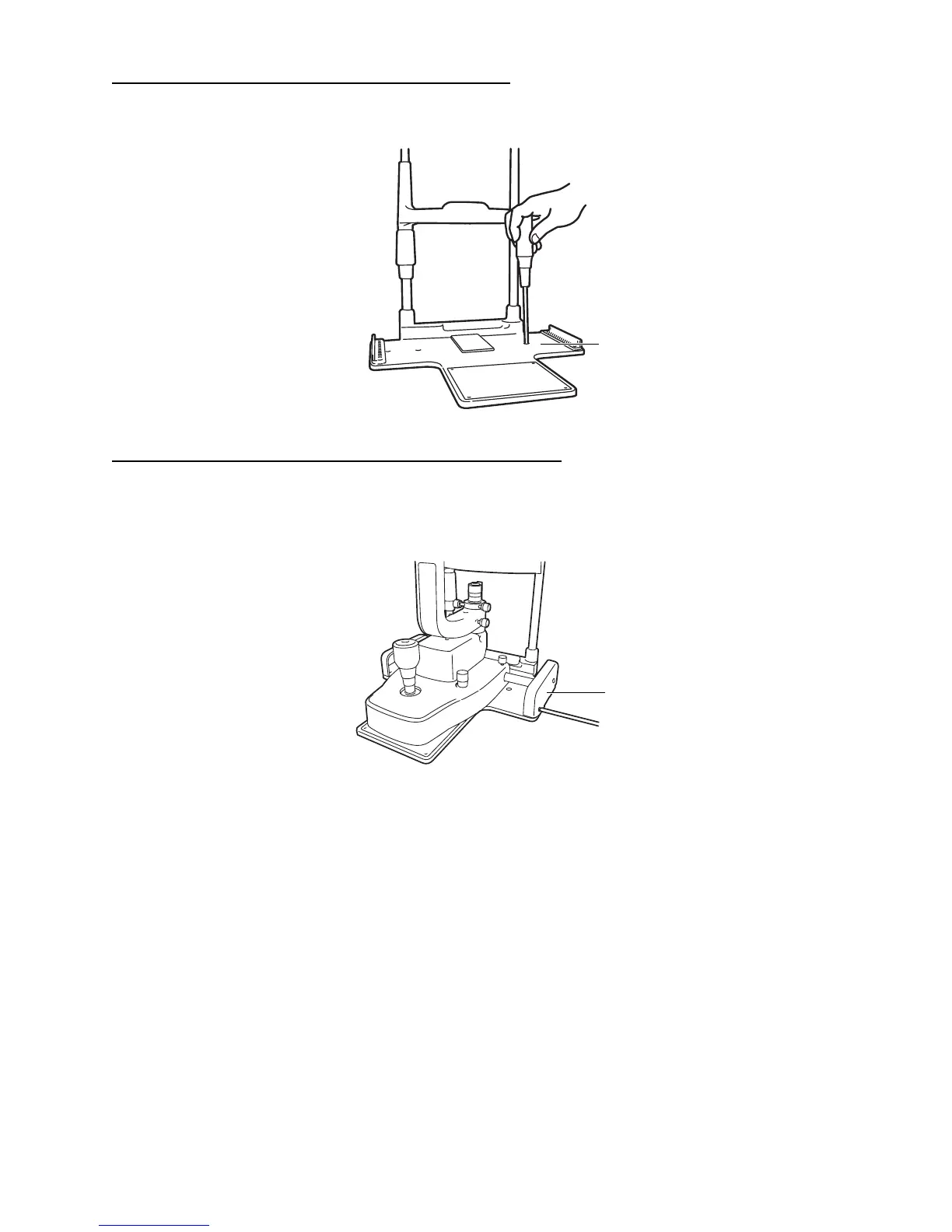

ASSEMBLY PROCEDURE
SECURING THE CHINREST BASE PLATE
1
Secure the chinrest base plate to the unit type table top with 2 scre
ws (9).
SECURING THE BASE UNIT AND RAIL CO
VER
1
Align the wheel of the base unit with the rail of the chinrest base plate
.
2
Secure the rail co
vers with 4 scre
ws (12):
(2 screws each on the right and left sides).
Chinrest base plate
Rail cov
er
18
20
Table of Contents
Introduction
3
Displays for Safe Use
5
Safety Cautions
6
Escape Clause
8
Maintenance
8
User Maintenance
8
Warning Indications and Positions
9
Table of Contents
10
Configuration
12
Names of Main Body Components
12
Standard Accessories
13
Components
15
Assembly Procedure
17
Securing the Instrument Type Table Top
17
To Prevent Falling During Use and Movement, Secure each Unit
17
Securing the Patient Grip Pg-1(Optional Accessory)
18
Securing the Unit Type Table Top
18
Securing the Base Unit and Rail Cover
19
Securing the Chinrest Base Plate
19
Securing the Binocular Tubes
20
Securing the Illumination Unit
20
Removing the Illumination Unit Pad
21
Connecting and Securing of Cables
22
Fitting the Cap
23
Fitting the Chinrest Tissue
23
Securing the Tonometer Mount So-Tm1 (Optional Accessory)21
23
Counter Balancing the Vertical Movement
25
Adjusting the Diopter and Pupillary Distance (Pd)
27
Powering on
27
Preparations
27
Fixing the Patient's Face and Fixation
29
Operation Procedure
29
Operating the Microscope Unit
30
Operating the Base and Focusing
31
To Avoid Injury to the Eye and Nose Whilst Moving the Base Unit Make Sure that You Have a Clear View of the Slit Lamp and the
31
Operating the Illumination Unit
32
To Avoid Injury to the Patient's Head, Incline the Illumination Unit
32
Ending Procedure
37
To Avoid Electric Shocks, Do Not Attempt Overhauling, Rebuilding or Repairs. Ask Your Dealer for Repair
38
Troubleshooting
38
Troubleshooting Guide
38
Specifications and Performance
39
Electromagnetic Compatibility
41
Electric Rating
44
Operation Principles
45
Purposes of Use
45
System Classification
45
System Configuration
46
Shape of Plug
47
Symbol
47
Maintaining the Precision
48
Maintenance and Checkups
48
Daily Care
49
Periodic Maintenance
49
Placing an Order for Consumables
50
Replacing Illumination Lamps
50
When Replacing the Lamp, Switch off the Power Supply and Remove the Power Cable to Avoid Electric Shocks
50
Replaceing the Fixation Target Bulb
51
Replacing Fuses
52
Restocking Chinrest Tissue
52
When Replacing Fuses, First Switch off the Power Supply and Remove
52
Before Carrying out Daily Care, Remove the Power Cable (to Avoid Electric Shocks) and Wait until the Lamp House Has Cooled (to Avoid
53
Cleaning Applied Parts
53
Cleaning Lenses and Mirrors
53
Daily Care
53
Cleaning the Sliding Plate, Rail and Wheel Shaft
54
Disposal of the Product
54
The Base Contains Strong Springs. Do Not Attempt to Disassemble or Burn the Base, as the Springs Could Cause Injury by Shooting out
54
Digital Camera Unit DC-1
55
Optional Accessories
55
To Prevent Falling During Use and Movement, Secure Optional Acces
55
Electronic Flash Device Fd-21
56
Beam Splitter
57
Tv Relay Lens
57
Tv Relay Lens Tl-54/55 (Built-In Beam Splitter Type)
58
Tv Attachment Tl-56
58
Tv Attachment Tl-57
59
Background Illumination Bg-4
59
Background Illumination Bg-2Gn
59
Observation Tube
60
Yellow Filter Unit
60
12.5X Measuring Eyepiece
60
20X Eyepiece
60
Applanation Tonometer
60
Hruby Lens
61
Parallel Binocular Tube Pb-2
61
Auxiliary Spring So-As 1,2,3
61
Patient Handle Pg-1
61
Adapt Cover So-Ac1, 2, 3, 4, 5
61
