Phoenix Pro User Manual
4
2 Knowledge of Phoenix Pro

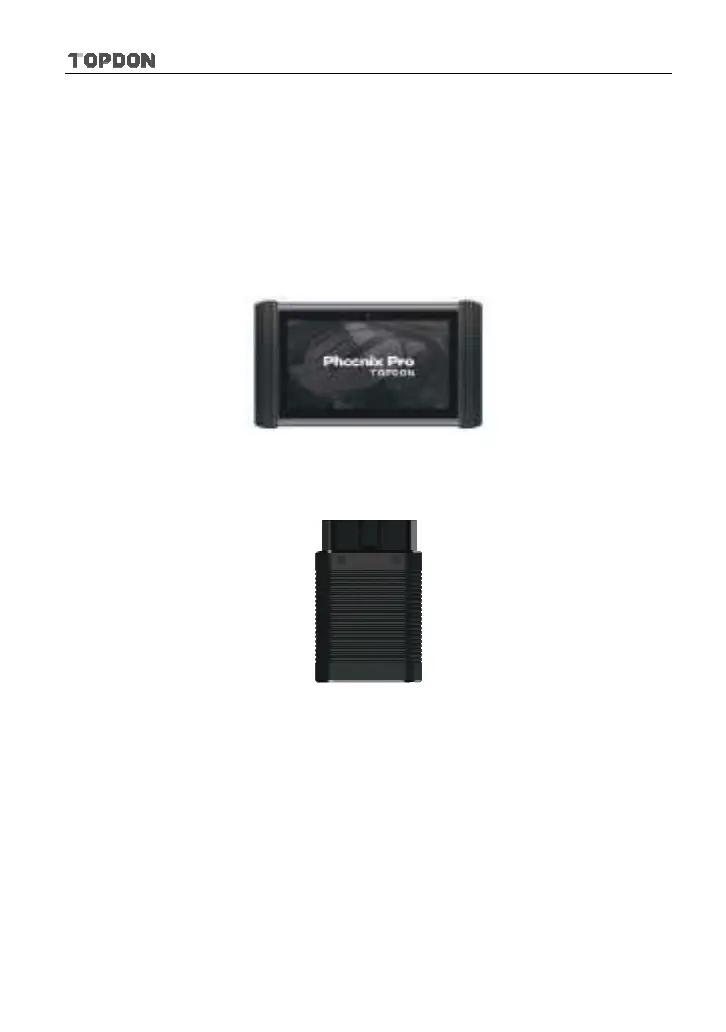

There are two main components to the Phoenix Pro system.
y Phoenix Pro tablet – the central processor and monitor for the system (See
Chapter “2.1”).
Fig. 2-1 Phoenix Pro tablet
y VCI connector – the device for accessing vehicle data (See Chapter “2.2”).
Fig. 2-2 VCI connector
