Phoenix Pro User Manual
7
Slot
10
HDMI Port
To connect an external projector or monitor with
HDMI interface.
2.2 VCI Connector (Only applies to 12V cars)
The VCI connector works as a vehicle communication interface device, which is
used to read the vehicle data and then send it to the handset via Bluetooth
communication or USB connection.
When the 2 communication methods are applied at the same time, Phoenix Pro
will use the USB communication as the default priority.

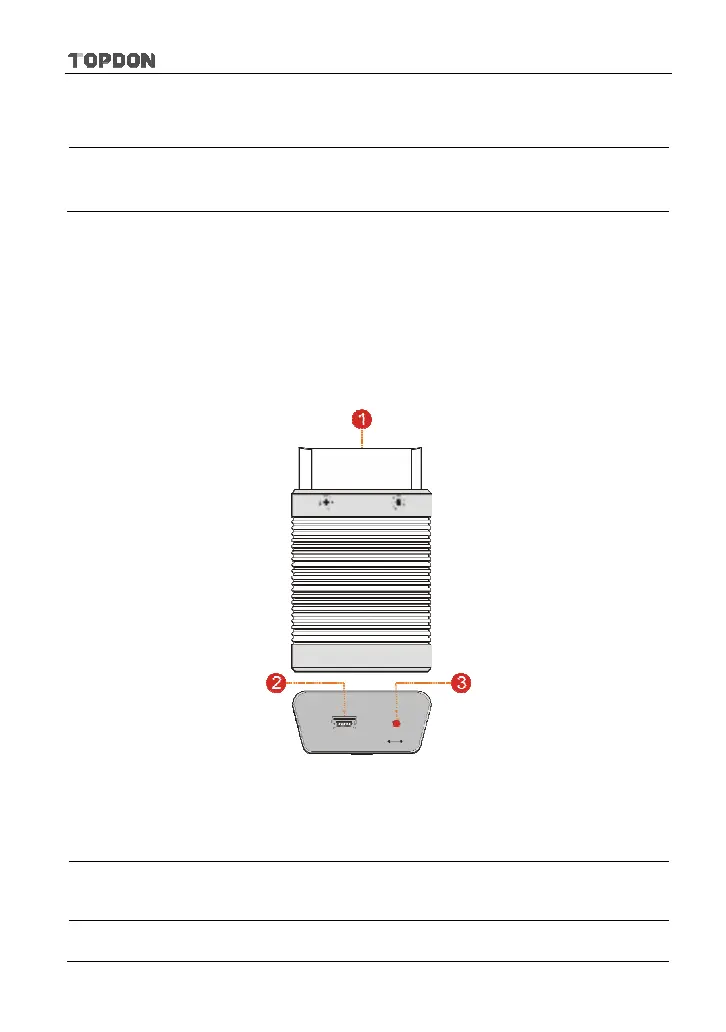

Fig. 2-5 VCI Connector
1
OBD-16 diagnostic
connector
To connect on vehicle’s OBD II DLC.
2
Mini USB port
For connecting it to the tablet via the USB
cable.
3
Mode Indicators
There are 3 modes available:
