Seat-Back-AdjustingLever
Movethelevertoadjusttheseat-backangle.
Armrest-AdjustingKnob
Rotatetheknobtoadjusttheangleofthearmrest.
InfoCenter
ScreenFunctions
•Pressthecorrespondingbuttontoviewscreen1orscreen
2,tostoptheaudiblealarm,toviewthefaultscreen,orto
exit(Figure13).

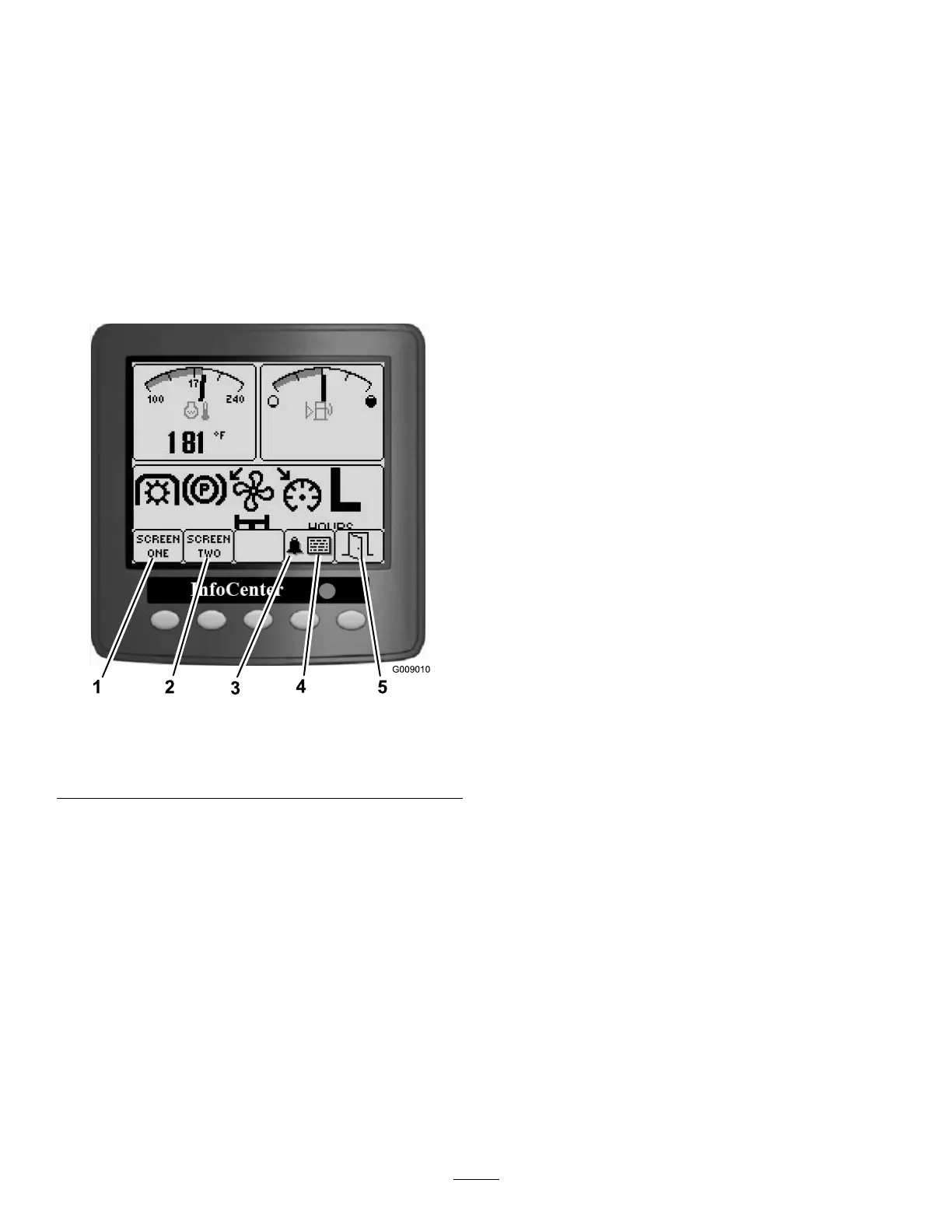

Figure13
1.Screen1
4.Faultscreen
2.Screen2
5.Exit
3.Audiblealarm
•Ifafaultappearsonthescreen,pressanykeytoviewthe
activefaultadvisory.
Note:Contactyoursupervisorormechanictorelaythe
faultadvisoryanddeterminethecourseofaction.
•Pressthearrowkeystonavigatethefaultscreen.
•Pressanykeytorevealtheinformationkeysonthescreen.
OperatorInformation
Thereare2screensthatmonitoranddisplaythemachine
functionsthatyoucanuse.
Screen1displaysthefollowing:
•Top,LeftGauge—Engine-CoolantTemperature
•Top,RightGauge—FuelLevel
•LefttoRightontheBottomHalf
1.PTOEngaged
2.ParkingBrakeEngaged
3.FanReversing
4.CruiseControlEngaged
5.H/L(High/Lowspeedrange)
•Bottom,LeftCorner—Air-IntakeHeaterActive
•Bottom,Middle—TractionAssistEngaged
•Bottom,Right—MachineHours
Screen2displaysthefollowing:
•Top,LeftCorner—Enginerpm
•Top,RightCorner—Hydraulic-OilTemperature
•Lower,LeftCorner—BatteryVoltage
•Lower,RightCorner—ServiceDue
19
