Engine-Coolant-TemperatureIndicator
Thisdisplayindicatesthetemperatureoftheenginecoolant
(Figure14).

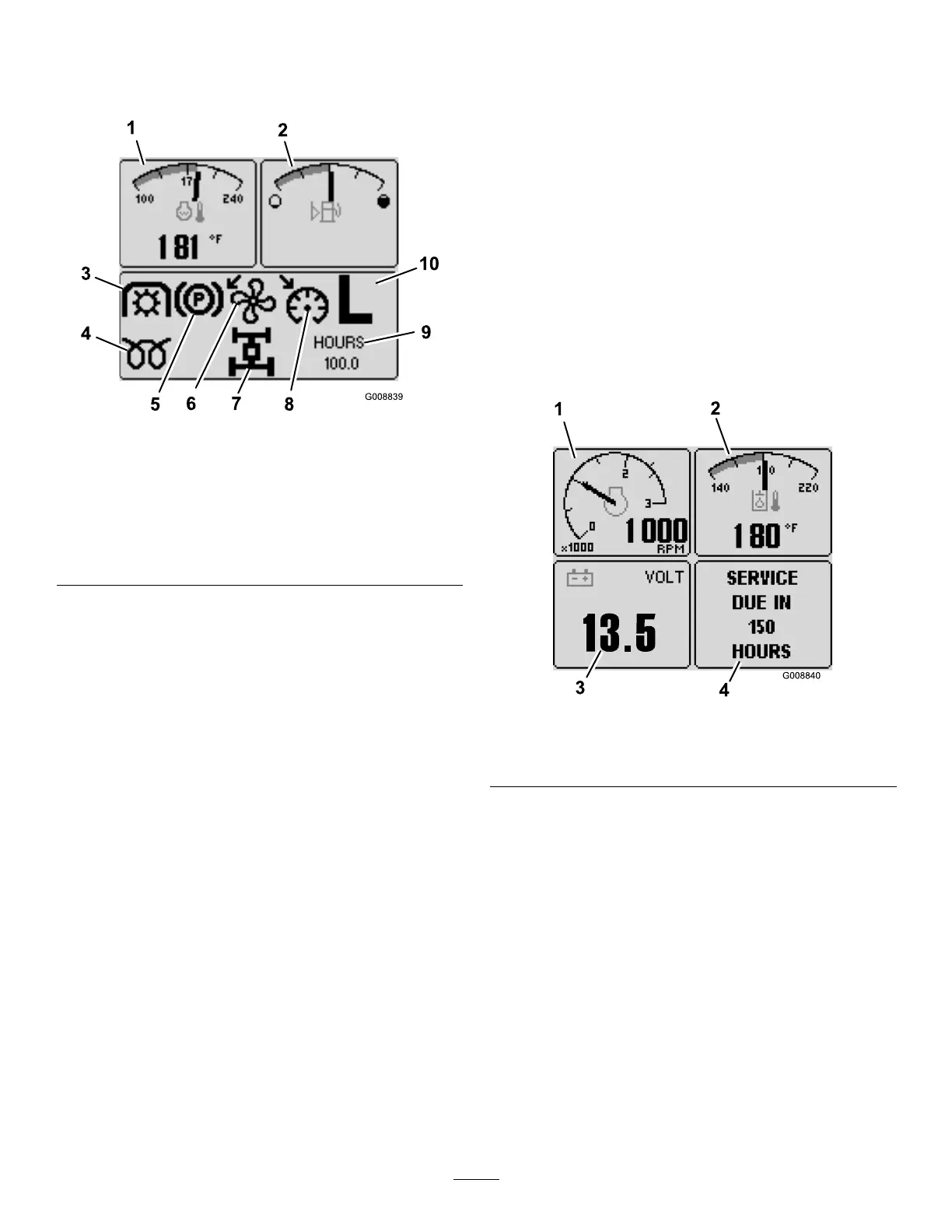

Figure14
1.Engine-coolant-temperature
indicator
6.Fan-reverseindicator
2.Fuel-levelindicator7.Traction-assistindicator
3.PTOindicator8.Cruise-controlindicator
4.Air-intake-heaterindicator9.Machine-hoursindicator
5.Parking-brakeindicator
10.H/L(High/Low)
speed-rangeindicator
Fuel-LevelIndicator
Thisdisplayindicatestheleveloffuelinthetank(Figure14).
PTOIndicator
ThisdisplayindicateswhenthePTOinengaged(Figure14).
Parking-BrakeIndicator
Thisdisplayindicatesthattheparkingbrakeisengaged
(Figure14).
Fan-ReverseIndicator
Thisdisplayindicateswhenthefanisoperatinginreverse
(Figure14).Thefanspeediscontrolledbythehydraulic-oil
temperature,air-intaketemperature,orengine-coolant
temperature,andautomaticallyreverses.Areversecycleis
automaticallyinitiatedtohelpblowdebrisofftherear-hood
screen,wheneitherthetemperatureoftheenginecoolantor
thehydraulic-oilreachesacertainpoint.
Cruise-ControlIndicator
Thisdisplayindicateswhenthecruisecontrolisinoperation
(Figure14).
H/L(High/LowRange)Speed-Range
Indicator
Thisdisplayindicatestheselectedspeedrange(Figure14).
Air-Intake-HeaterIndicator
Thisdisplayindicateswhenthesystemispreheating(Figure
14).
Traction-AssistIndicator
Thisdisplayindicateswhenthetractionassistisengaged
(Figure14).
Machine-HoursIndicator
Thisdisplayshowsthetotalhoursthatthemachinehasbeen
operated(Figure15).
Figure15
1.Tachometer3.Batteryvoltage
2.Hydraulic-oiltemperature
4.Servicedue
Tachometer
Thisdisplayshowstheengine-operatingspeedinrpm(Figure
15).
Hydraulic-Oil-TemperatureIndicator
Thisdisplayindicatesthehydraulic-oiltemperature(Figure
15).
BatteryVoltage
Thisdisplayshowsthebatteryvoltage(Figure15).
Service-DueIndicator
Thisdisplayindicatesthetimeuntilthenextregularservice
interval(Figure15).
