Algemeen overzicht
van de machine
g367815

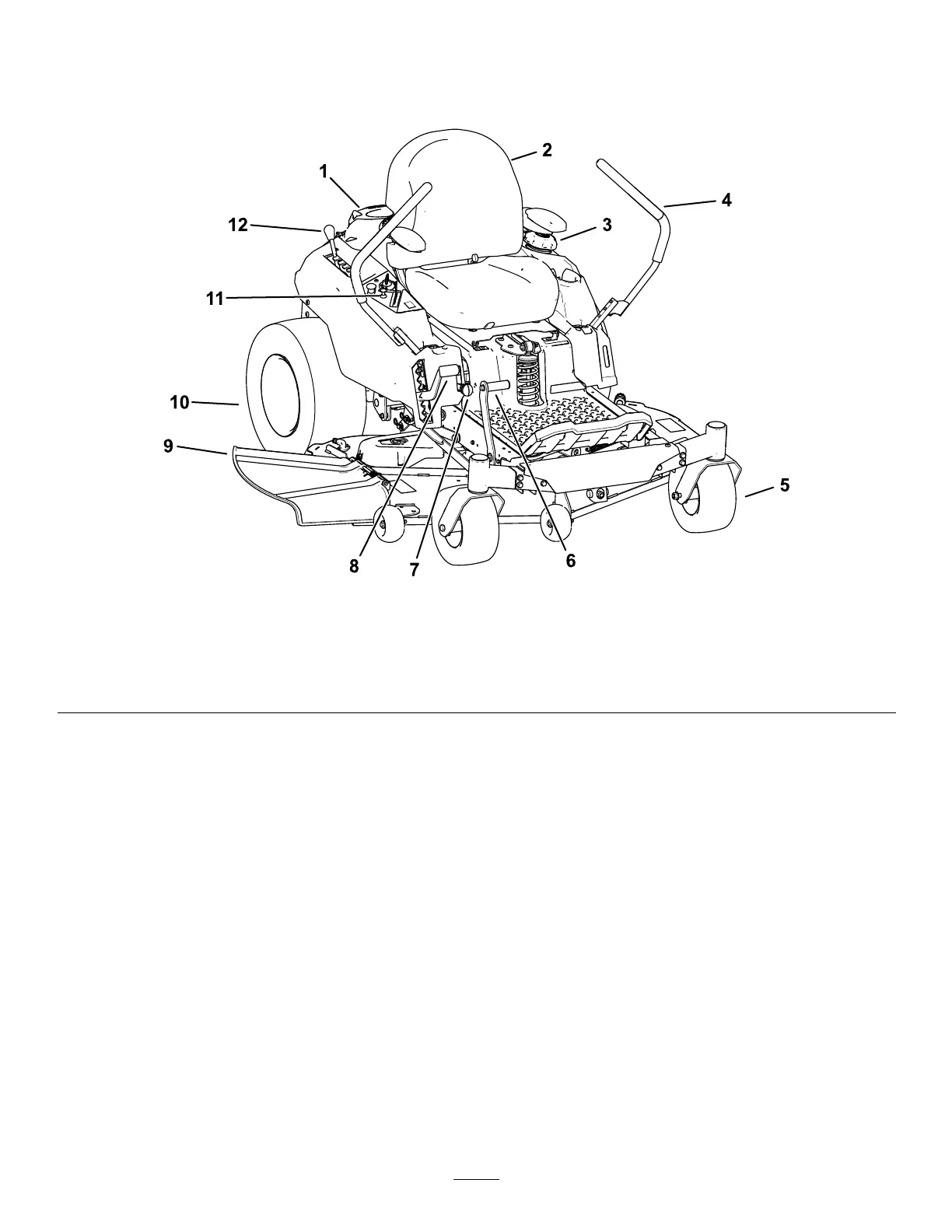

Figuur 4
1. Motor 4. Rijhendels
7. Smart Speed ™ hendel 10. Achteraandrijfwiel
2. Bestuurdersstoel 5. V oorste zwenkwiel 8. Maaihoogtehendel 1 1. Bedieningspaneel
3. Dop van brandstoftank 6. Hefpedaal maaidek (enkel
bepaalde modellen)
9. Grasgeleider
12. MyRide ™ instelhendel
1 1
