2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Locate the tracking-adjustment bolt near the
motion-control lever on the particular side that
needs adjusting ( Figure 54 ).
Note: Raise the seat for easier access to the
adjustment bolt.
4. Rotate the bolt to decrease the speed for that
particular wheel.
Note: Rotate the bolt a small amount to make
minor adjustments.
g294926

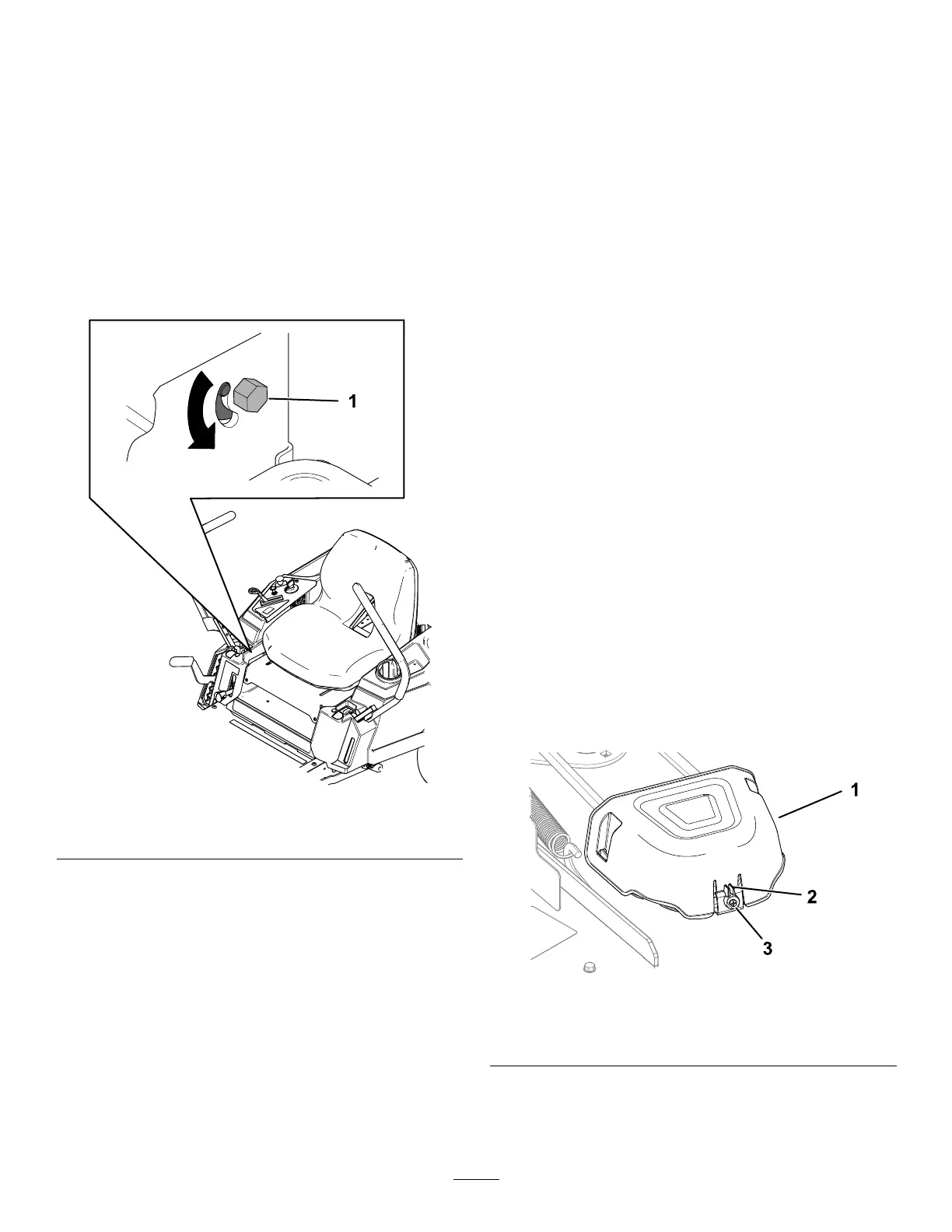

Figure 54
1. Bolt
5. Start the machine and drive forward across a
at, level surface with the motion-control levers
fully forward to check if the machine tracks
straight. Repeat the procedure as needed.
Belt Maintenance
Inspecting the Belts
Service Interval : Every 25 hours —Check the belts
for wear or cracks.
Replace the belt if it is worn. The signs of a worn belt
include squealing while the belt is rotating; the blades
slipping while cutting grass; and frayed edges, burn
marks, and cracks on the belt.
Replacing the Mower Belt
The signs of a worn belt include squealing while the
belt is rotating, blades slipping while cutting grass,
and frayed edges, burn marks, and cracks on the belt.
Replace the mower belt if any of these conditions are
evident.
1. Park the machine on a level surface, disengage
the blade-control switch, and move the
motion-control levers outward to the P ARK
position.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Set the height of cut at the lowest cutting position
(38 mm (1-1/2 inches).
4. Loosen the bottom 2 bolts holding the
mower-deck curtain to the mower deck. Refer to
Releasing the Mower-Deck Curtain ( page 32 ) .
5. Loosen the screw and push in the tab on the
cover to remove the pulley covers ( Figure 55 ).
g296848
Figure 55
1. Cover 3. Screw
2. T ab
6. For decks with 3 blades, loosen the nut securing
the wire form to the idler pulley ( Figure 56 ).
