g294044

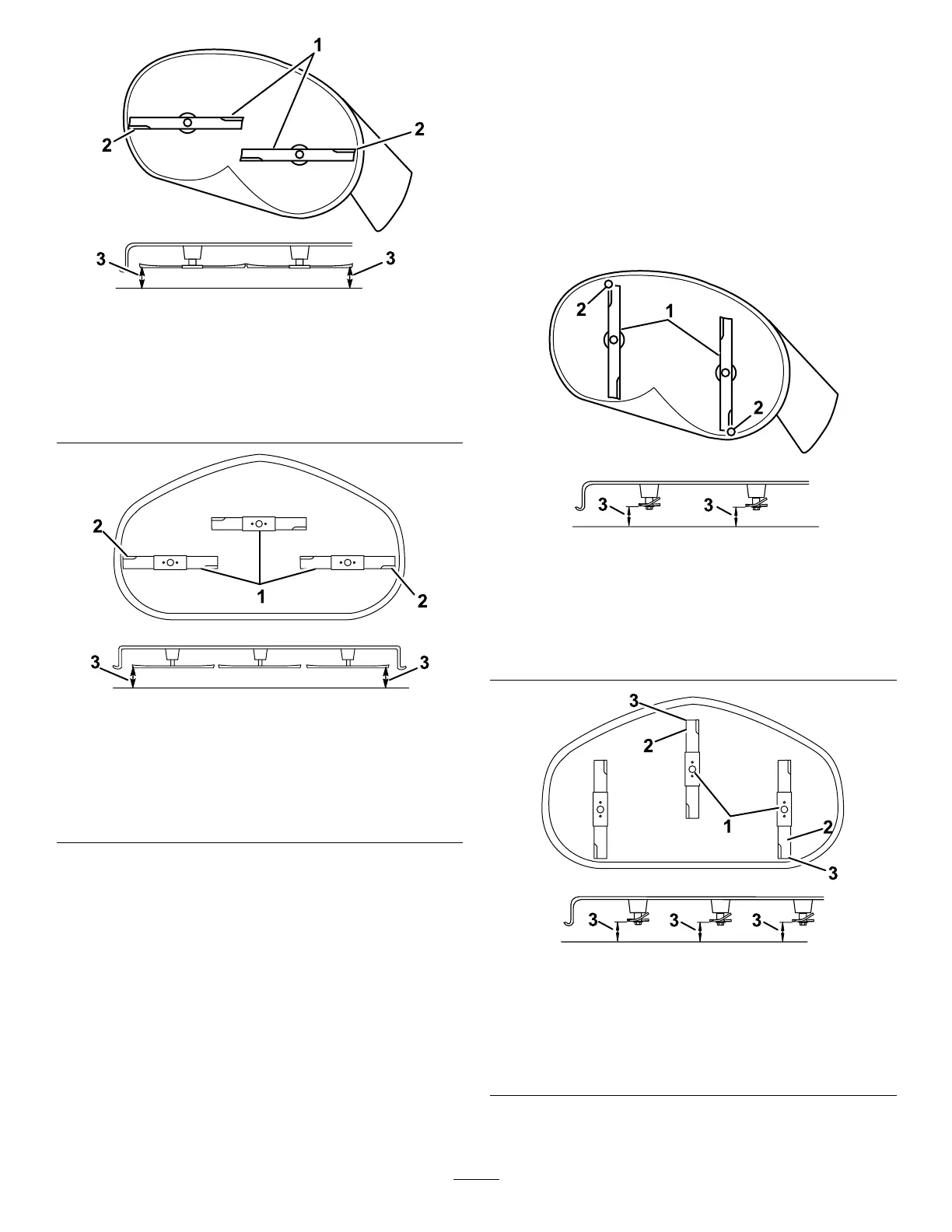

Figure 67
Mower Decks with 2 Blades
1. Blades side to side
3. Measure from the tip of the
blade to the at surface
here.
2. Outside cutting edges
g296913
Figure 68
Mower Decks with 3 Blades
1. Blades side to side
3. Measure from the tip of the
blade to the at surface
here.
2. Outside cutting edges
Checking the Front-to-Rear Blade
Slope
Check the front-to-rear blade level any time you install
the mower . If the front of the mower is more than
7.9 mm (5/16 inch) lower than the rear of the mower ,
adjust the blade level.
1. Park the machine on a level surface, disengage
the blade-control switch (PT O), and move the
motion-control levers outward to the P ARK
position.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Set the height of cut to 76 mm (3 inches).
4. Carefully rotate the blades so they are facing
front to rear ( Figure 69 ).
5. Measure from the tip of the front blade to the at
surface and the tip of the rear blade to the at
surface ( Figure 69 or Figure 70 ).
Note: If the front blade tip is not 1.6 to 7.9 mm
(1/16 to 5/16 inch) lower than the rear blade
tip, continue to the Adjusting the Front-to-Rear
Blade Slope ( page 49 ) procedure.
g294046
Figure 69
Mower Decks with 2 Blades
1. Blades front to rear 3. Measure from the tip of the
blade to the at surface
here.
2. Outside cutting edges
g296914
Figure 70
Mower Decks with 3 Blades
1. Blades front to rear 3. Measure from the tip of the
blade to the at surface
here.
2. Outside cutting edges
47
