[H] Bottom margin
(1) While pressing [0] and [5] simultaneously, turn the power ON. → (Adjustment Mode)
(2) Open platen cover or RADF.
(3) Press the [FAX] → [START] to make a copy at the mode of A3/LD, 100%, Full color, Text/Photo
and 2nd drawer.
(4) Measure the blank area G at the trailing edge of the copied image.
(5) Check if the blank area G is within the range.
(6) If not, use the following procedure to change values and repeat the steps 3. to 5. above.
<Procedure>
(Adjustment Mode) → (Key in the code [433]) → [START]
→ (Key in value (acceptable values: 0 to 255))
→ [ENTER] or [INTERRUPT] (stored in memory)
→ (“100% A” is displayed.)
* The larger the adjustment value is, the wider the blank area at the trailing edge
becomes (approx. 0.04 mm/step).

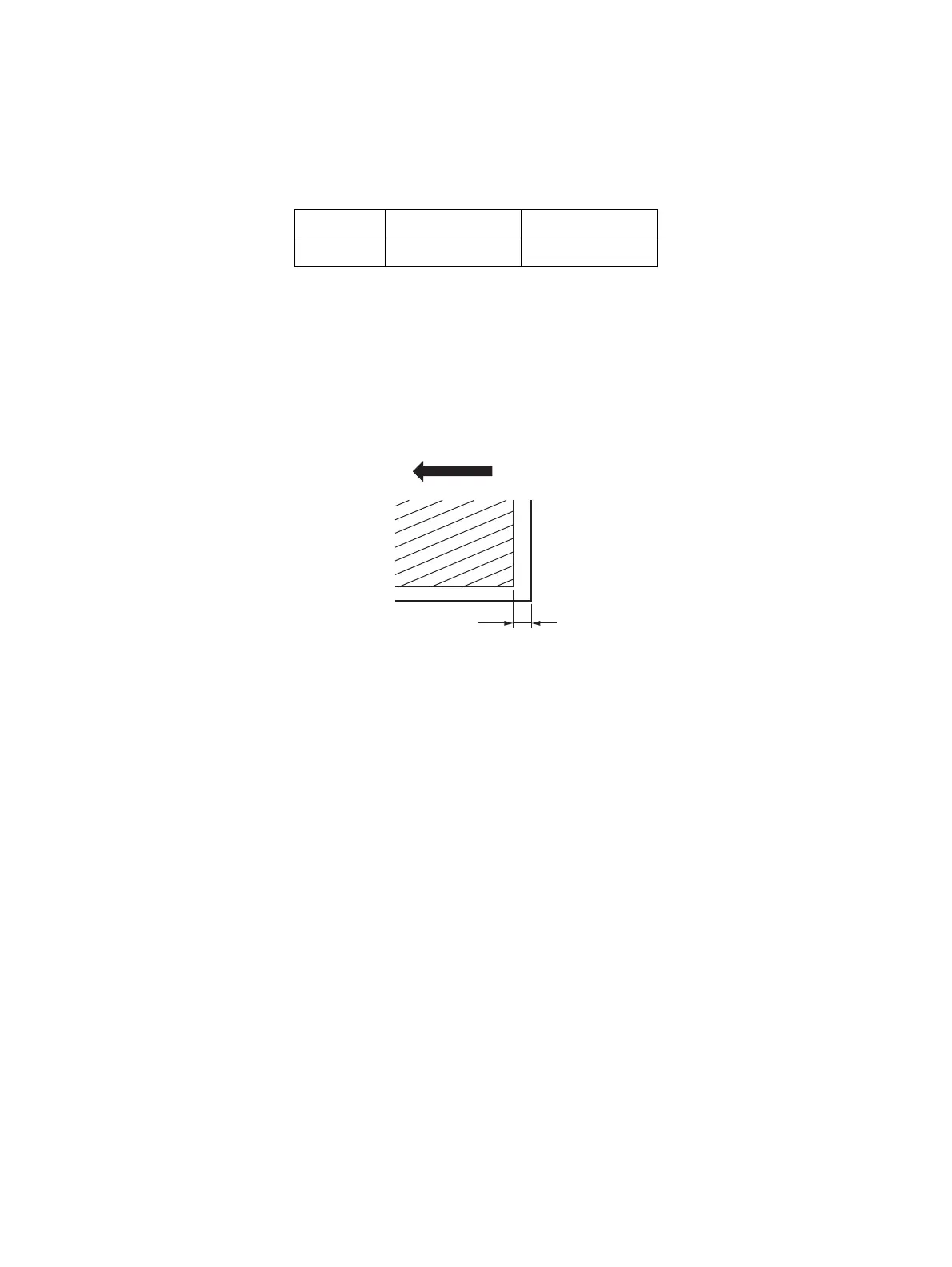

Fig. 3-19
Function Black Color
Copy 3±2.0 mm 3±2.0 mm
G
Feeding direction
