© 2008 - 2011 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2020C/2330C/2820C/2830C/3520C/3530C/4520C
ADJUSTMENT
3 - 69
3. Rotate 2 screws about half a turn to loosen
them.

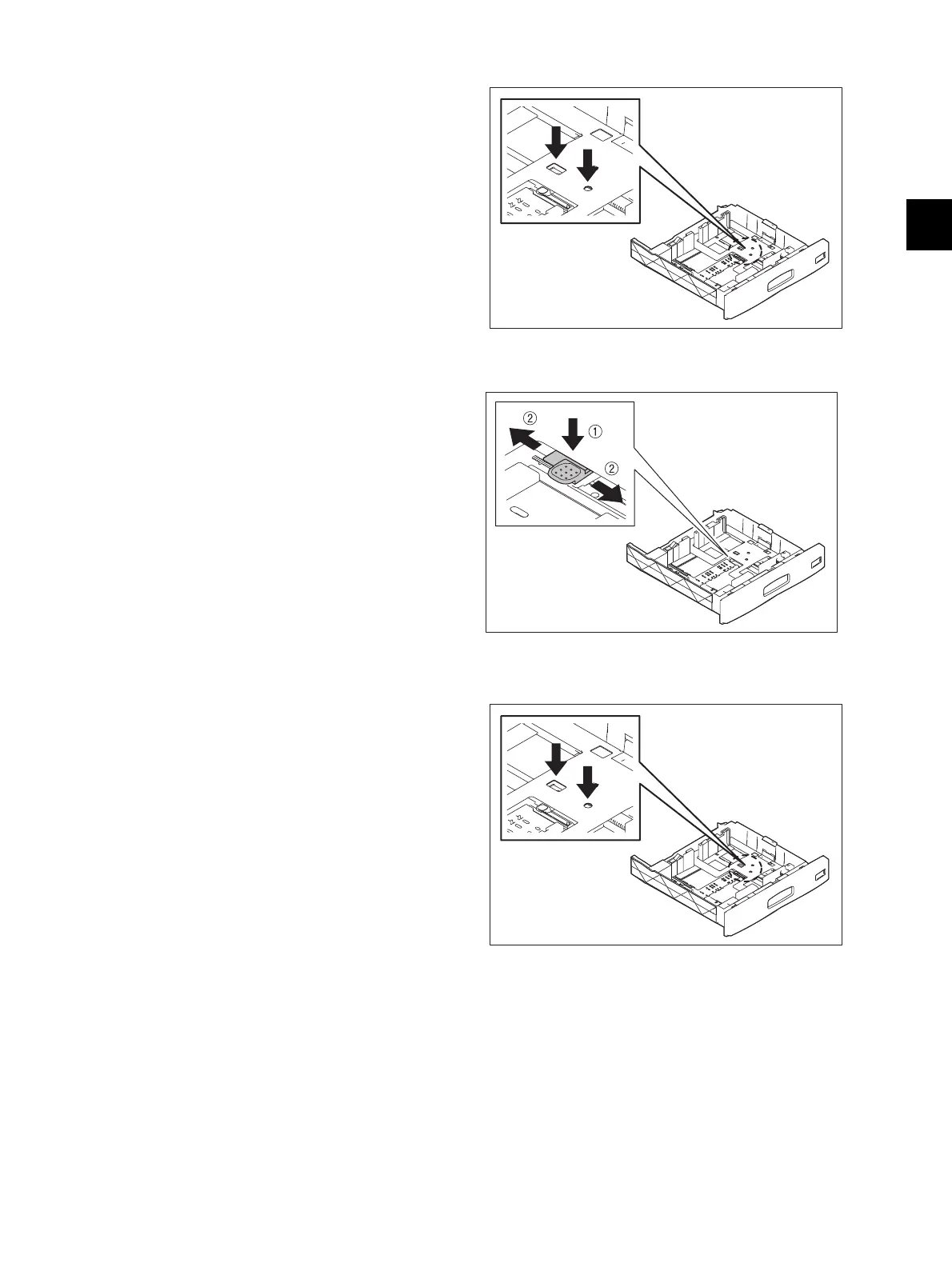

Fig. 3-33
4. Pull down the protrusion indicated by the arrow
and shift it in the specified direction.
Fig. 3-34
5. Tighten 2 screws.
Fig. 3-35
