PREVENTIVE MAINTENANCE (PM)
5 - 8
Notes:
1. “—” is always displayed at the drive counts section for the reversing automatic document
feeder (RADF) and feed unit.
2. “—” is displayed at the numeric section for the paper source which is not installed since the
paper source is different depending on the structure of options.
3. The number of output pages printed only in the full color mode is given in the pm output pages
section.
2. Sub screen

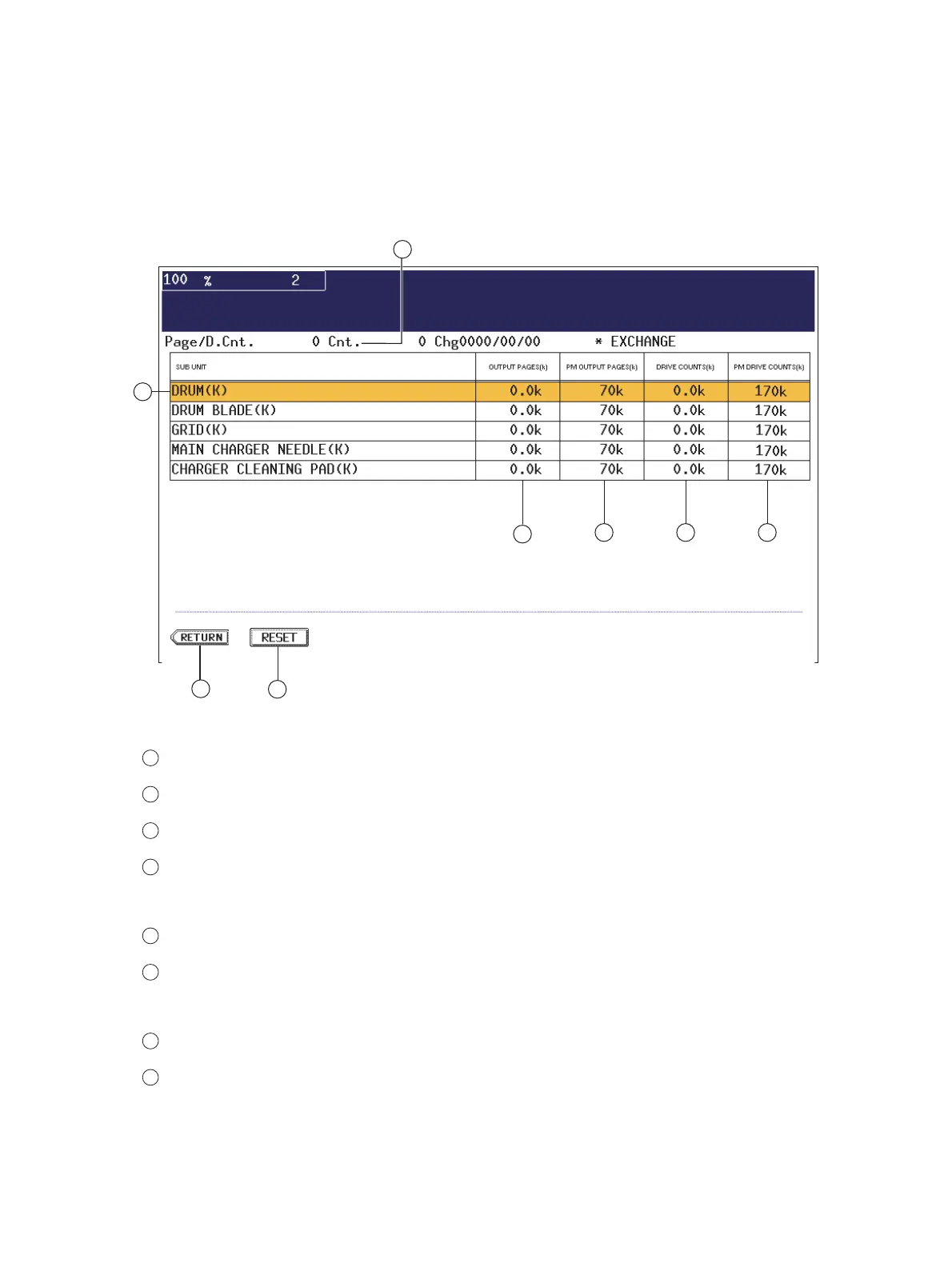

Fig. 5-4
Displaying of the sub unit (parts) name
Back to the main screen
Moving to the clear screen to clear the selected unit (parts) counters
Displaying of the present number of print / develop pages
“*” is displayed next to the present number when the number of print / develop pages has
exceeded its PM standard number.
Displaying of the standard number of print / develop pages to replace the sub unit (parts)
Displaying of the present drive counts
“*” is displayed next to the present number when the number of drive counts has exceeded its
PM standard number.
Displaying of the standard number of drive counts to replace the sub unit (parts)
Displaying of the number of print / develop pages and drive counts and previous replacement
date for a chosen sub unit
2
3
8
1
4
5 6 7
1
2
3
4
5
6
7
8
