GX9 ASD Installation and Operation Manual 23
AM — This output terminal produces an output current that is proportional to the output frequency of
the ASD or of the magnitude of the function assigned to this terminal. The available assignments for
this output terminal are listed in Table 9 on pg. 221. For further information on this terminal, see F670.
FM — This output terminal produces an output current that is proportional to the output frequency of
the ASD or of the magnitude of the function assigned to this terminal. The available assignments for
this output terminal are listed in Table 9 on pg. 221. For further information on this terminal, see F005.
FLA — One of two normally open contacts that, under user-defined conditions, connect to FLC. The
FL relay is the Fault Relay by default, but may be programmed to any of the selections of Table 10 on
pg. 222. For further information on this terminal, see Figure 5 and F132.
FLB — One of two normally closed contacts that, under user-defined conditions, connect to FLC.
FLC — FLC is the common leg of a single-pole double-throw form C relay.
Note: The FLA, FLB, and FLC contacts are rated at 2A/120 VAC and 2A/30 VDC.

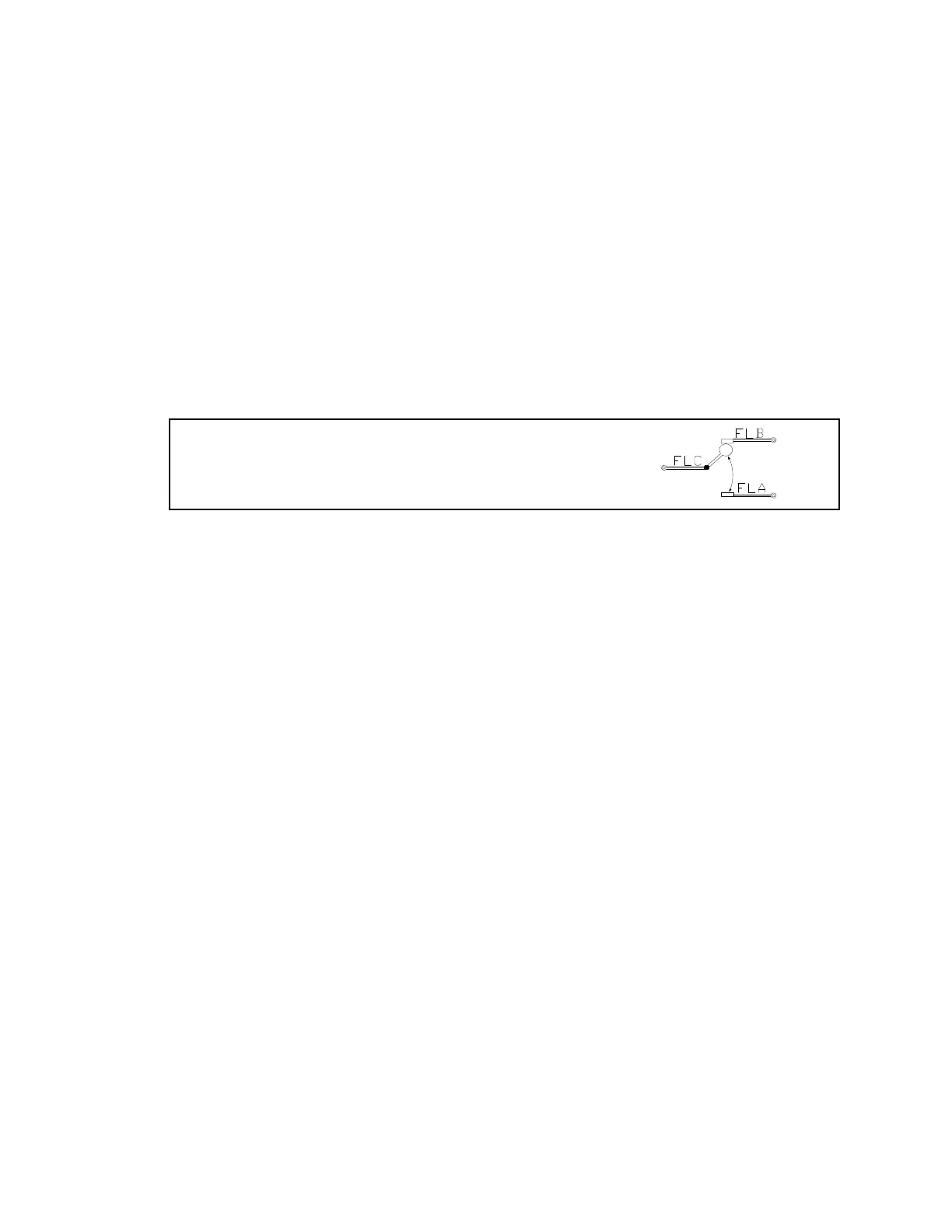

Figure 5. FLA, FLB, and FLC Switching Contacts Shown in the Normal Operating Condition.
Note: The relay is shown in the normal operating condition. During
a faulted condition, the relay connection is FLC-to-FLA.
