3.27Wireless LAN Test Program (Intel-made a/b/g/n Setting up of REF PC) 3 Tests and Diagnostics

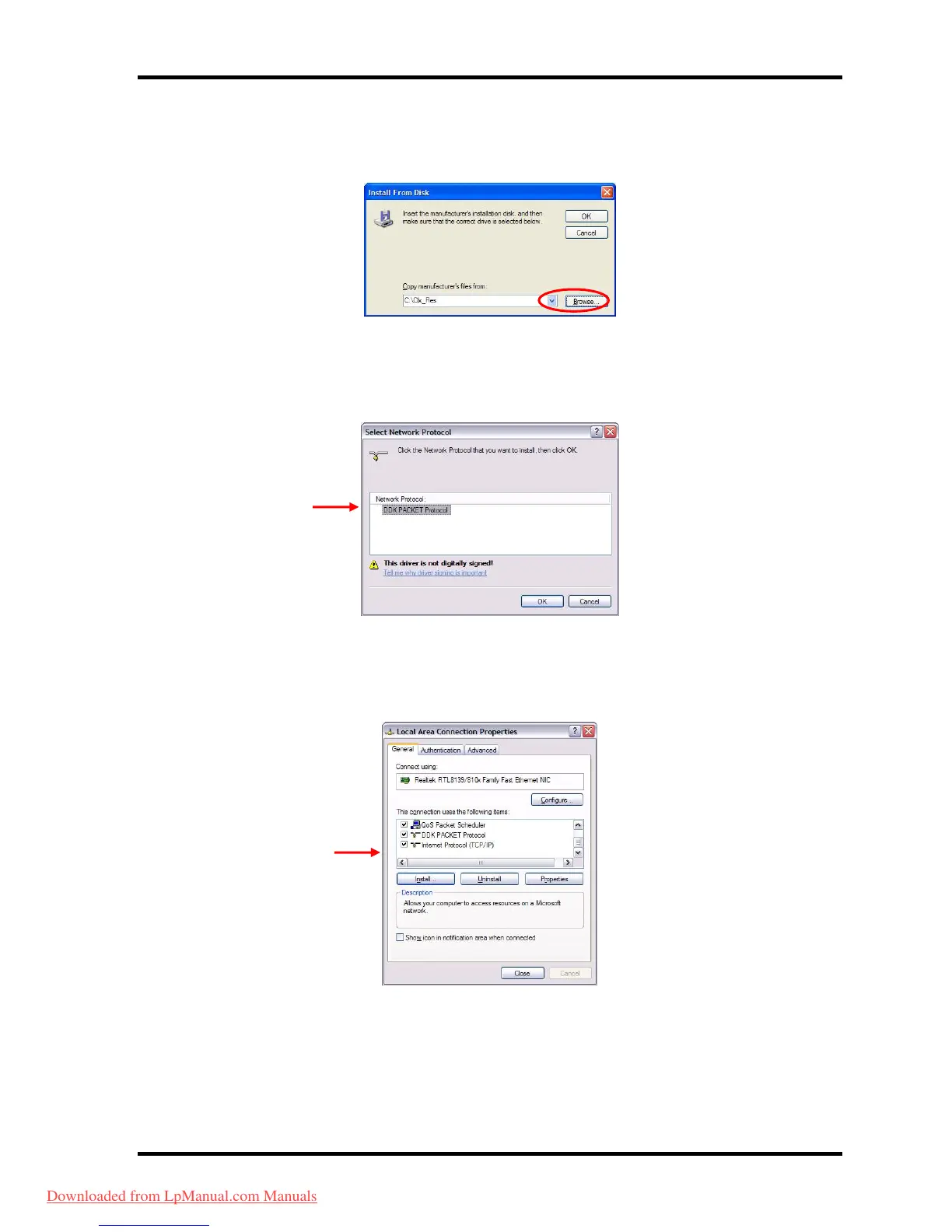

When “Install From Disk” window appears, click “Browse…” and specify the
created “Clx_Res” folder. Then Click “OK”. (For the test, “PACKET.INF”
file is used.)
•
Install From Disk window
The “Select Network Protocol” window appears again. In the “Network
Protocol”, “DDK PACKET Protocol” will appear. Then click “OK” to start
the installation.
•
Select Network Protocol window
When the installation is completed, “Local Area Connection Properties” will
appear. Confirm that the “DDK PACKET Protocol“ is added. Click “Close”
button to finish the setup of REF PC.
•
Local Area Connection Properties window
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 3-65
