4 Replacement Procedures 4.32 Modem jack/FM jack/DC-IN jack/right LED
4.32 Modem jack/FM jack/DC-IN jack/right LED
Removing the Modem jack/FM jack/DC-IN jack/right LED
The following describes the procedure for removing the Modem jack/FM jack/DC-IN
jack/right LED (See Figure 4-62).
1. Remove the following screw securing the right LED.
• M2.0×4B FLAT BIND screw ×1
2. Remove the modem jack/FM jack/DC-IN jack/right LED from the slots of the base
assembly.
Right LED
Modem jack or FM jack
DC-IN jack
M2.0x4B FLAT BIND

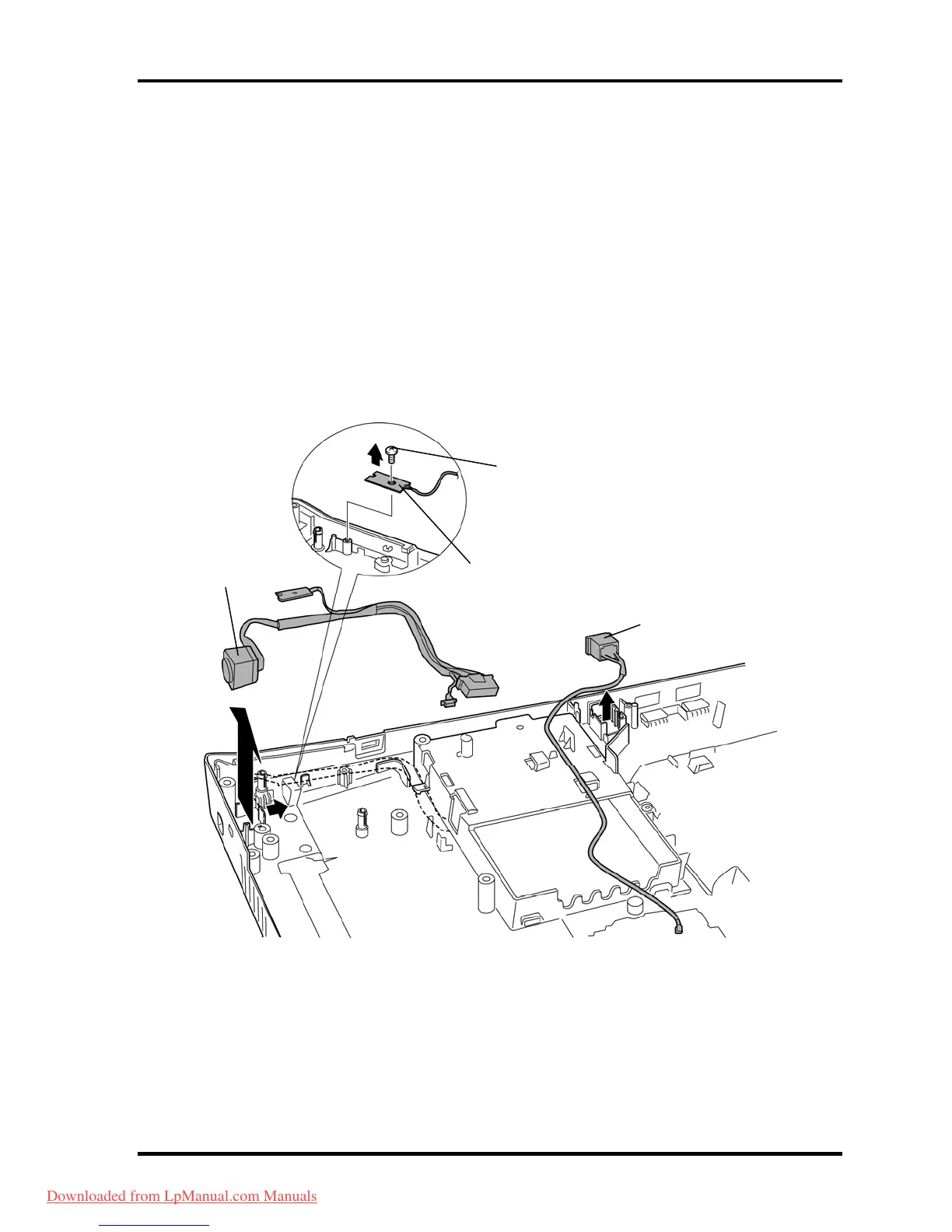

Figure 4-62 Removing the modem jack/FM jack/DC-IN jack/right LED
4-94 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
