4.11 Power switch board 4 Replacement Procedures
4.11 Power switch board
Removing the Power switch board
The following describes the procedure for removing the power switch board (See Figure 4-
23).
1. Remove the following screw and power switch board.
• M2.5×4B FLAT HEAD screw ×1
2. Disconnect the power switch cable from the connector on the power switch board.
Power switch board
Power switch cable
Guide
Guide
M2.5x4B FLAT HEAD

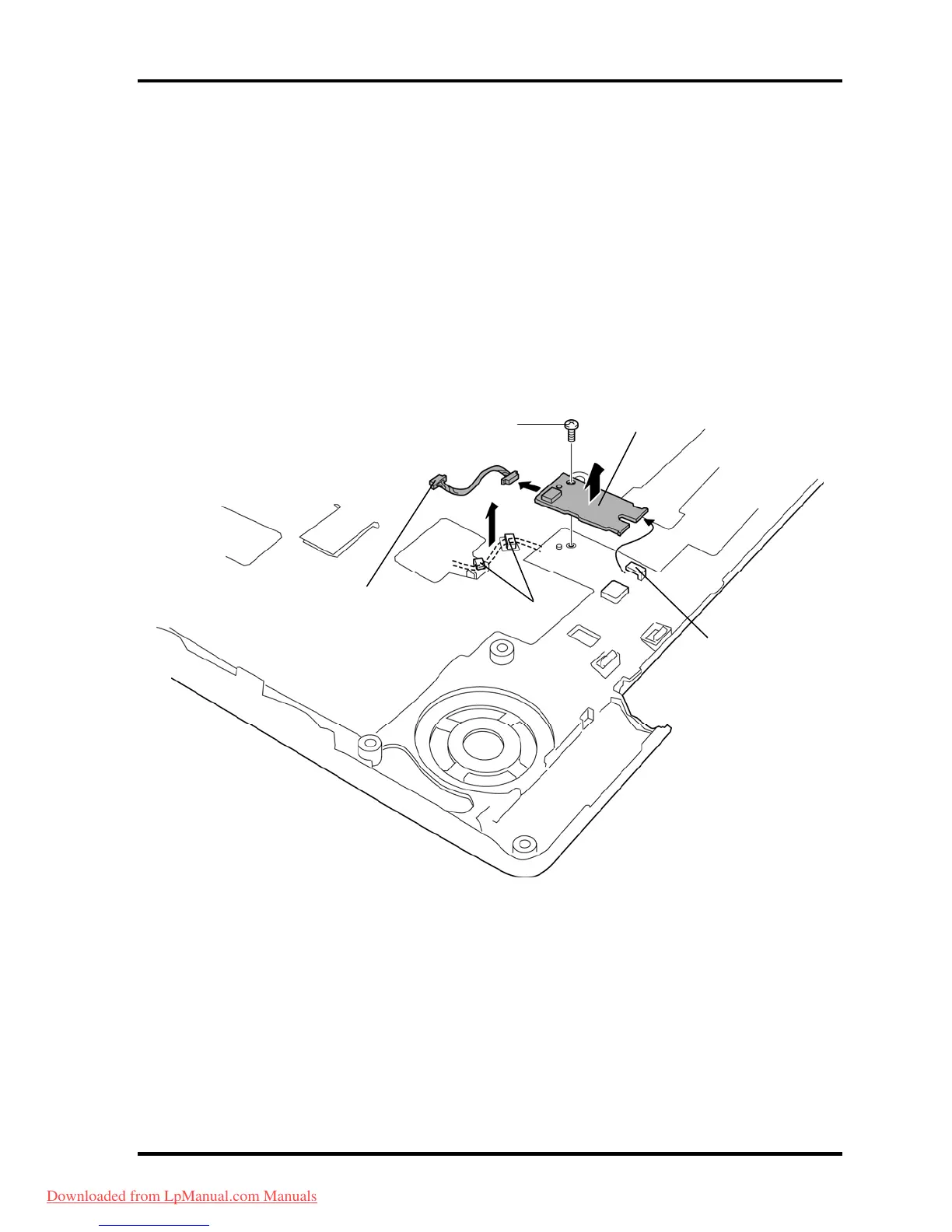

Figure 4-23 Removing the power switch board
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-37
