4 Replacement Procedures 4.20 Wireless USB card
4.20 Wireless USB card
Removing the Wireless USB card
The following describes the procedure for removing the wireless USB (See Figure 4-38).
1. Disconnect the wireless USB antenna cable from the connector on the wireless USB.
2. Remove the following screws securing the wireless USB.
• M2.0×3C BIND screw ×2
3. Remove the wireless USB card from the connector CN2700 on the system board.
M2.0x3C BIND
Wireless USB card
CN2700
Wireless USB antenna cable

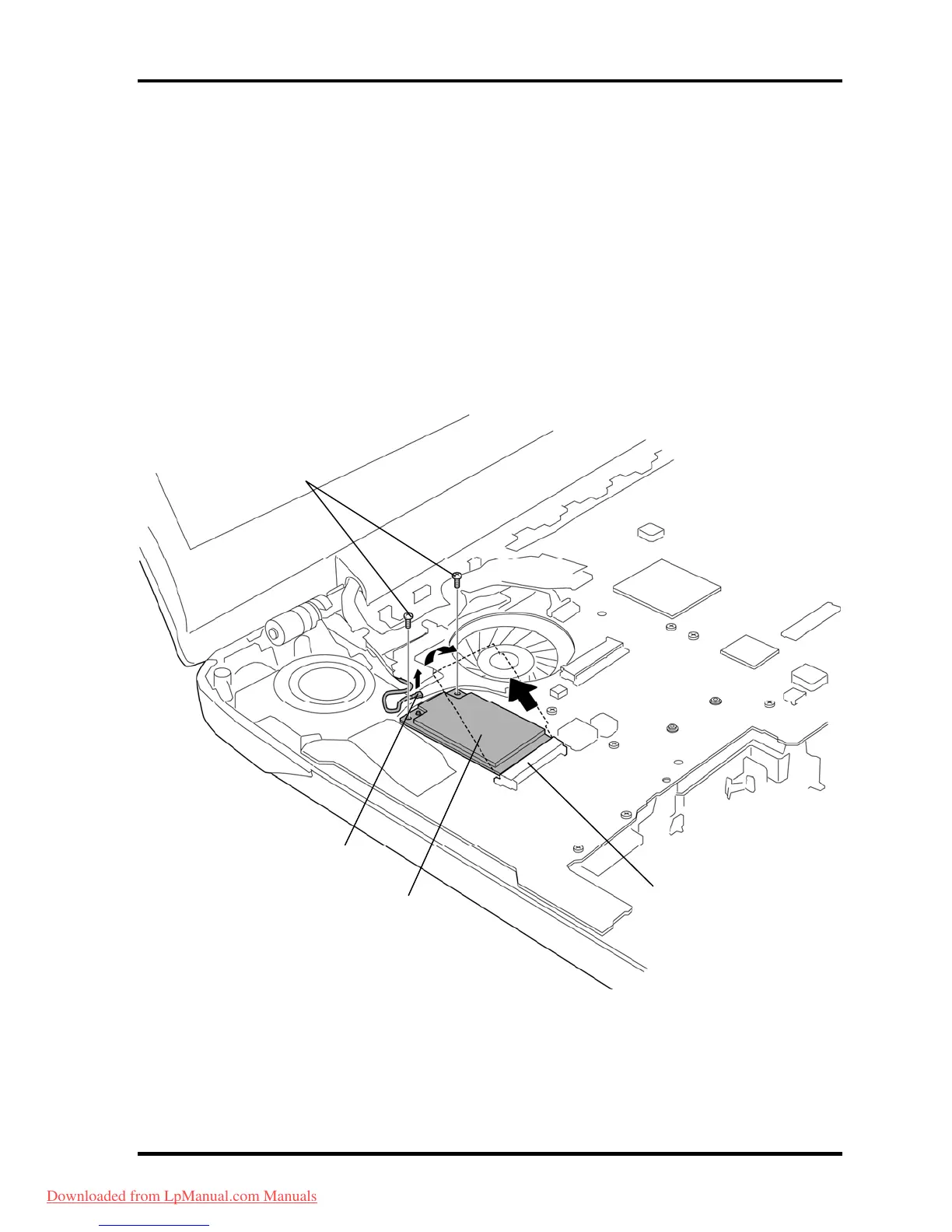

Figure 4-38 Removing the wireless USB card
4-60 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
