4.13 Bluetooth module 4 Replacement Procedures
4.13 Bluetooth module
Removing the Bluetooth module
The following describes the procedure for removing the Bluetooth module (See Figure 4-25).
1. Take out the Bluetooth cable from the guide and remove the Bluetooth module
from the slot while pushing the latch.
2. Disconnect the Bluetooth cable from the connector on the Bluetooth module.
Bluetooth module
Bluetooth cable
Guide
Latch

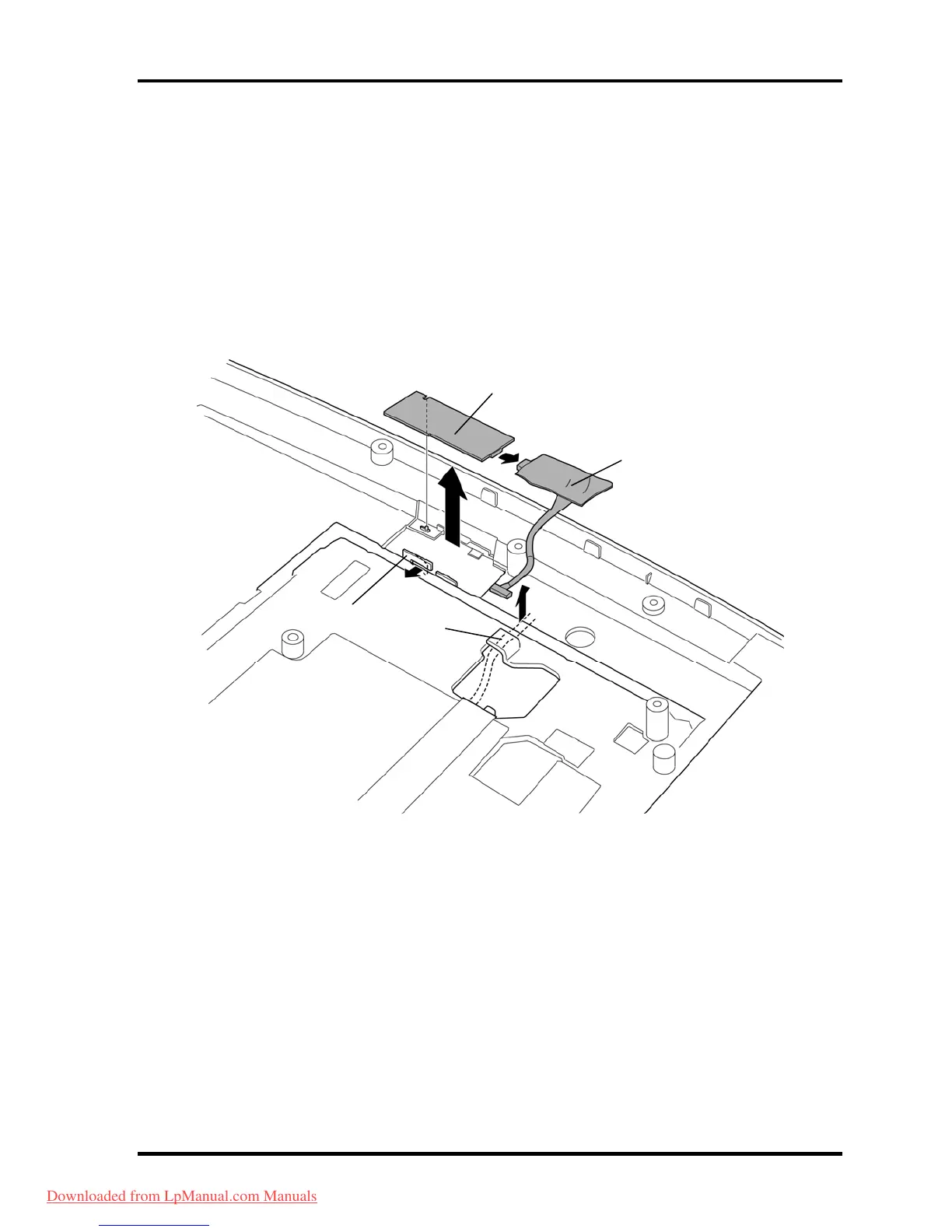

Figure 4-25 Removing the Bluetooth module
Installing the Bluetooth module
The following describes the procedure for installing the Bluetooth module (See Figure 4-25).
1. Connect the Bluetooth cable to the connector on the Bluetooth module.
2. Set the Bluetooth module into the slot and arrange the Bluetooth cable in place.
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-41
