4 Replacement Procedures 4.25 VGA fin/VGA/SPURS fin/SPURS
4.25 VGA fin/VGA/SPURS fin/SPURS
Removing the VGA fin/VGA/SPURS fin/SPURS
The following describes the procedure for removing the VGA fin/VGA/SPURS fin/SPURS
(See Figure 4-44 to 4-46).
Procedures 1 to 4 are for external VGA (GM45 or NB9M/9P) and SPURS model.
Procedures 5 to 6 are for external VGA (NB9E) model.
1. Remove the following screws securing the VGA holder/VGA fin/SPURS
holder/SPURS fin.
• M2.0×4B BIND screw ×6
2. Remove the VGA holder/VGA fin/SPURS holder/SPURS fin.
3. Disconnect the SPURS cable from the connector CN2801 on the system board and
connector CN7901 on the SPURS.
M2.0x4B BIND
VGA holder
M2.0x4B BIND
CN2801
SPURS cable
VGA fin
CN7901
SPURS fin
SPURS holder

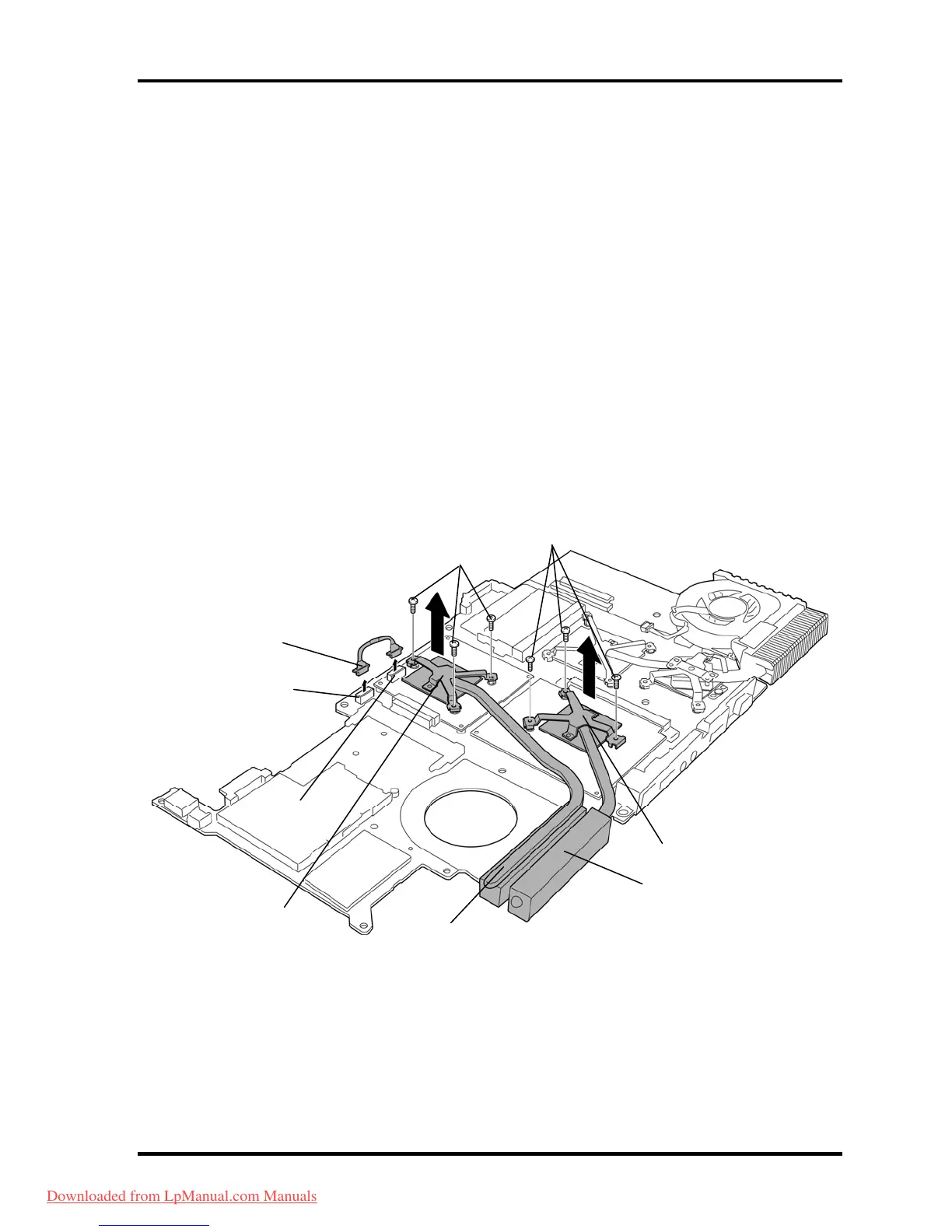

Figure 4-44 Removing the VGA fin/ SPURS fin
4-72 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
