4 Replacement Procedures 4.18 TV tuner
4.18 TV tuner
Removing the TV tuner
The following describes the procedure for removing the TV tuner (See Figure 4-36).
1. Disconnect the TV tuner antenna cable from the connectors on the TV tuner and
system board.
2. Remove the following screws securing the TV tuner.
• M2.0×3C BIND screw ×2
3. Remove the TV tuner from the connector CN2700 on the system board.
M2.0x3C BIND
TV tuner
CN2700
TV tuner antenna cable

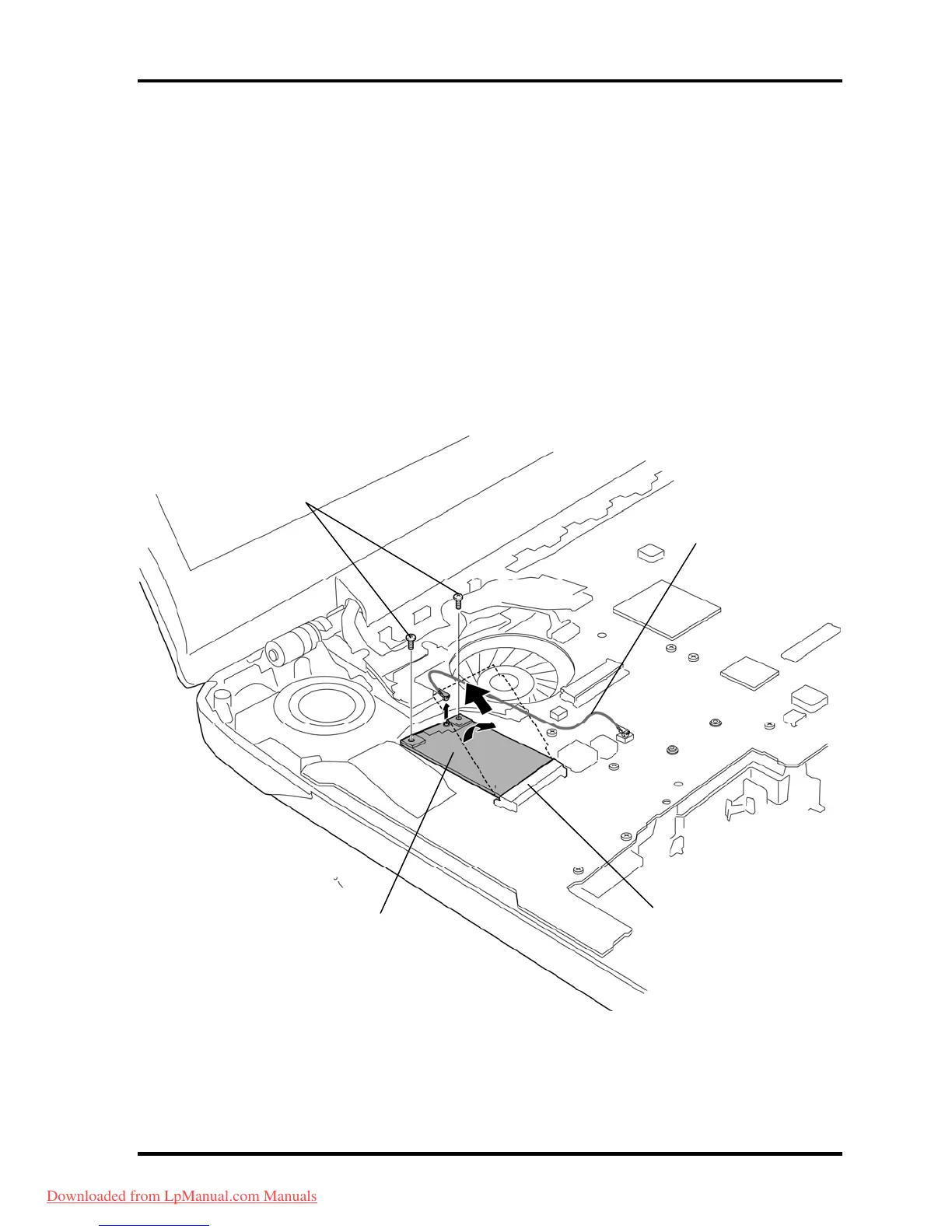

Figure 4-36 Removing the TV tuner
