4 Replacement Procedures 4.26 CPU fin/North bridge fin/CPU fan/CPU
4.26 CPU fin/North bridge fin/CPU fan/CPU
Removing the CPU fin/North bridge fin/CPU fan/CPU
The following describes the procedure for removing the CPU fin/North bridge fin/CPU
fan/CPU (See Figure 4-47 to 4-50).
1. Remove the following screws and heat sink holder.
• M2.0×4B BIND screw ×3
2. Remove the following screws and North bridge fin/CPU fin from the slot.
• M2.0×4B BIND screw ×4
M2.0x4B BIND
North bridge fin /CPU fin (with a
fan)
Heat sink holder
M2.0x4B BIND
M2.0x4B BIND

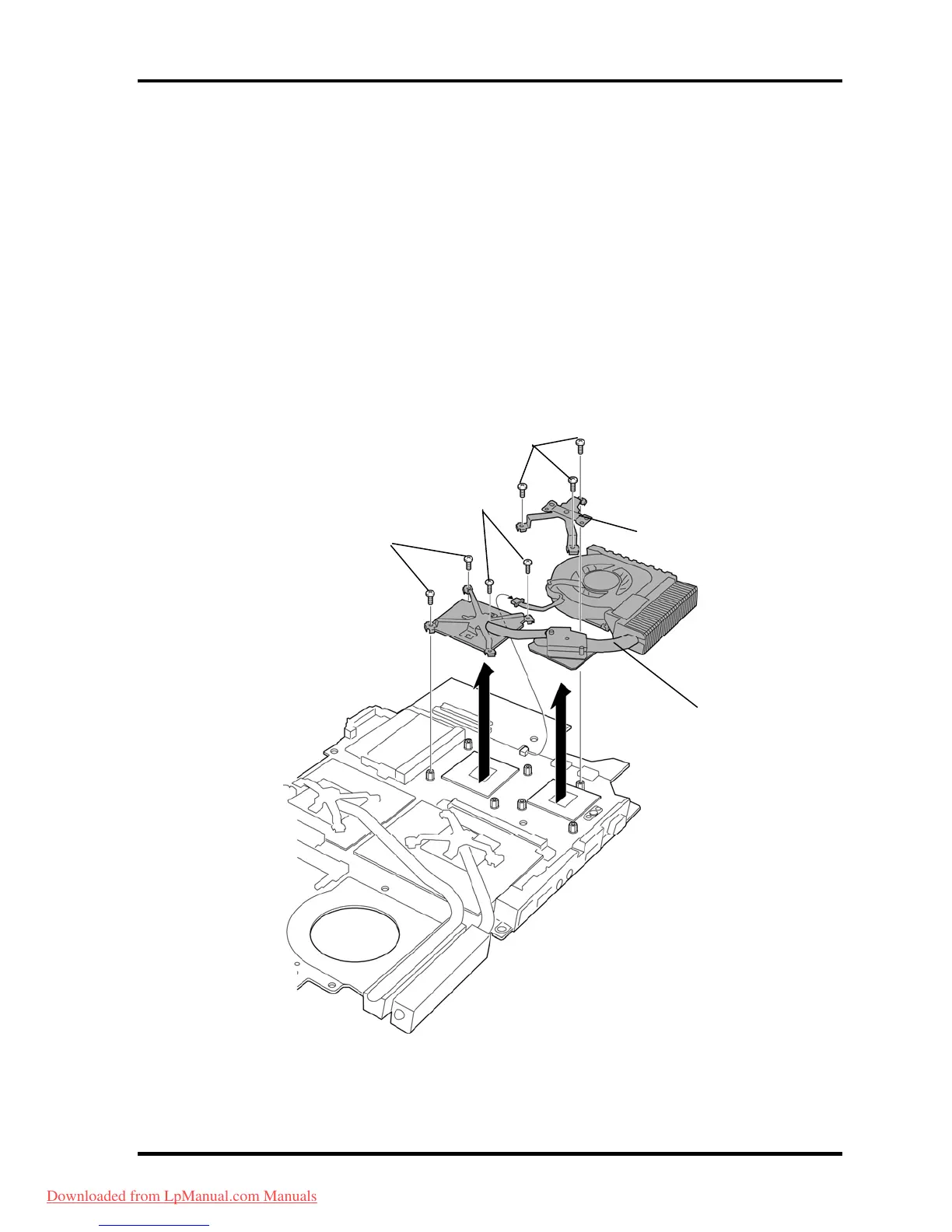

Figure 4-47 Removing the North bridge fin/CPU fin (external VGA model)
4-76 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
