4.26 CPU fin/North bridge fin/CPU fan/CPU 4 Replacement Procedures
M2.0x4B BIND
M2.0x4B BIND
CPU fin (with a fan)
Heat sink holder
M2.0x4B BIND
North bridg
e fin

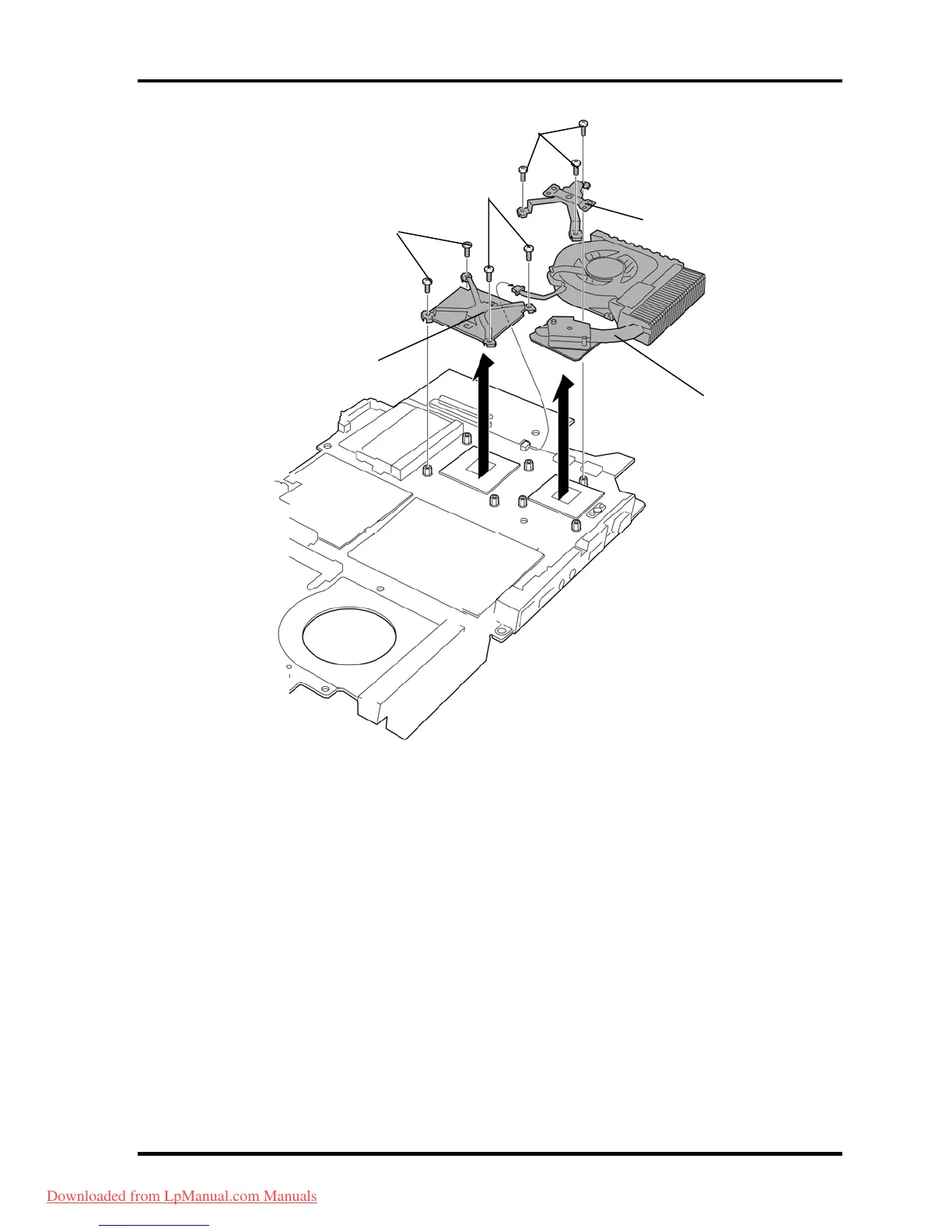

Figure 4-48 Removing the North bridge fin/CPU fin (internal VGA model)
